Humanscale M8 Conversion to and from Crossbar User Manual
Conversion to and from crossbar instructions
M
8
Conversion to and from
Crossbar Instructions
www.humanscale.com
MSM8CI1
01
1
The text and artwork are copyrighted materials. All rights reserved.
"Humanscale" and the Humanscale logo are registered
trademarks of Humanscale Corporation.

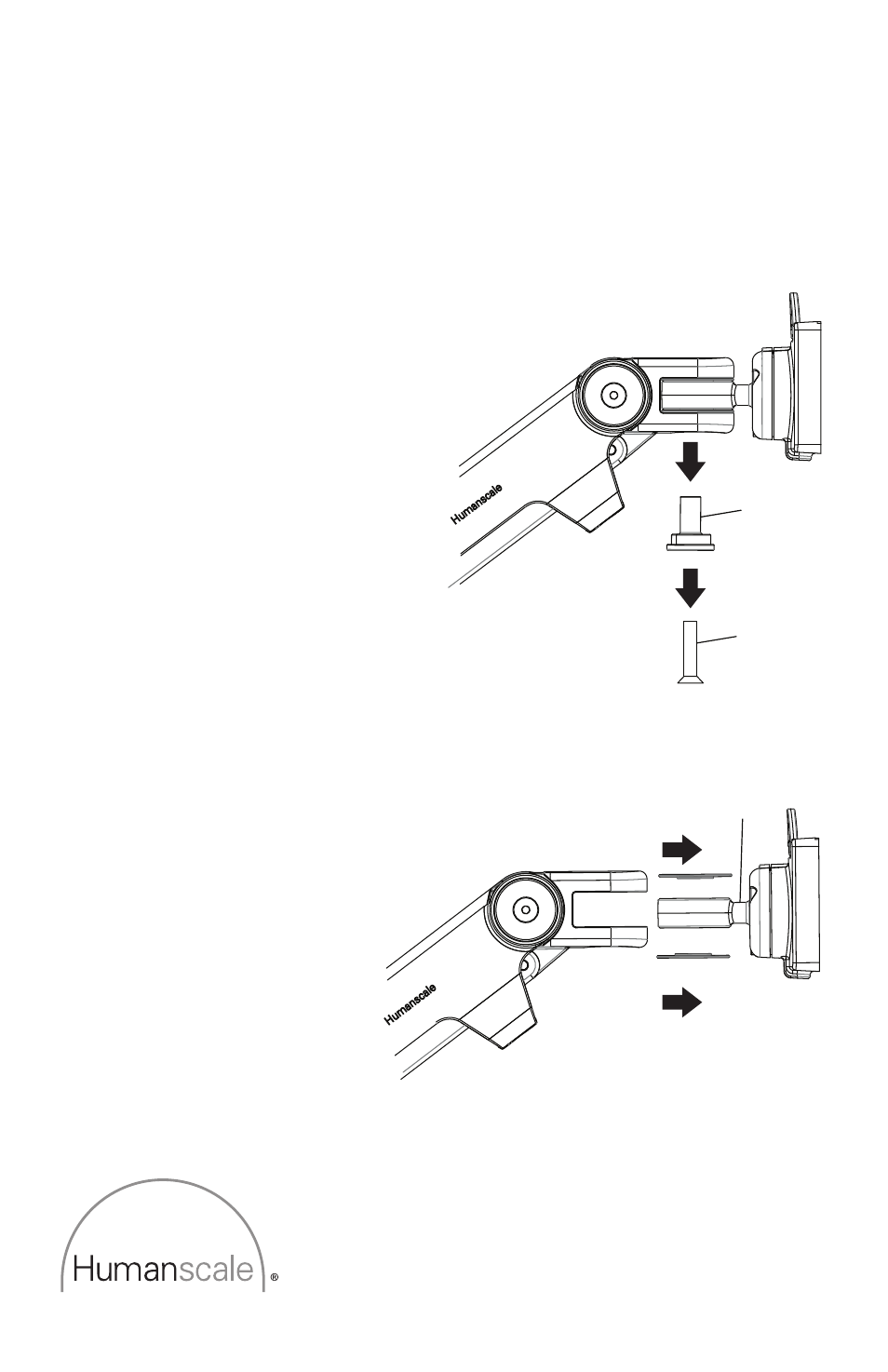

1. Remove Screw.
Use an M5 Hex Key.
2. Remove Ball Joint Insert.
Some wriggling of ball
joint might be required
to loosen the insert.
3. Remove Ball Joint.
Ball joint should slide free of
M8 arm. There should be 2
black plastic washers.
To re‐assemble, follow
directions in reverse.
A
1
2
3
