ELECTRICAL COMPONENTS
ITEM PART NO. DESCRIPTION USED ON
30 82936 Switch, Rocker 125/250V 1086, 1088
31 1080-10 Keypad All
36 6407-15 Cord & Cap Assembly 1080, 1082
36t 8552-18 Terminal Strip 1086, 1088
37 35-210 Strain Relief 1080, 1082
45 8541-120 Solenoid Valve (old-style) All
85753 Solenoid Valve (new-style) All
50 83644 Temperature Probe All
63a 8043-83 Hi-Limit Thermostat 1080, 1082
63b 8552-50 Hi-Limit Thermostat 1086, 1088
67 8043-14 Tank Heating Element 120V / 1500W 1080, 1082
8716-1 Tank Heating Element 240V / 3500W 1086, 1088
85 1080-226 Controller Board All
86 1080-40
Controller Dial All
87 1072-225 Power Board All
SOLENOID REPAIR KITS
NEW-STYLE
85218 Inlet Fitting Kit (includes cap, fitting, gasket
and strainer)
85219 Inlet Strainer

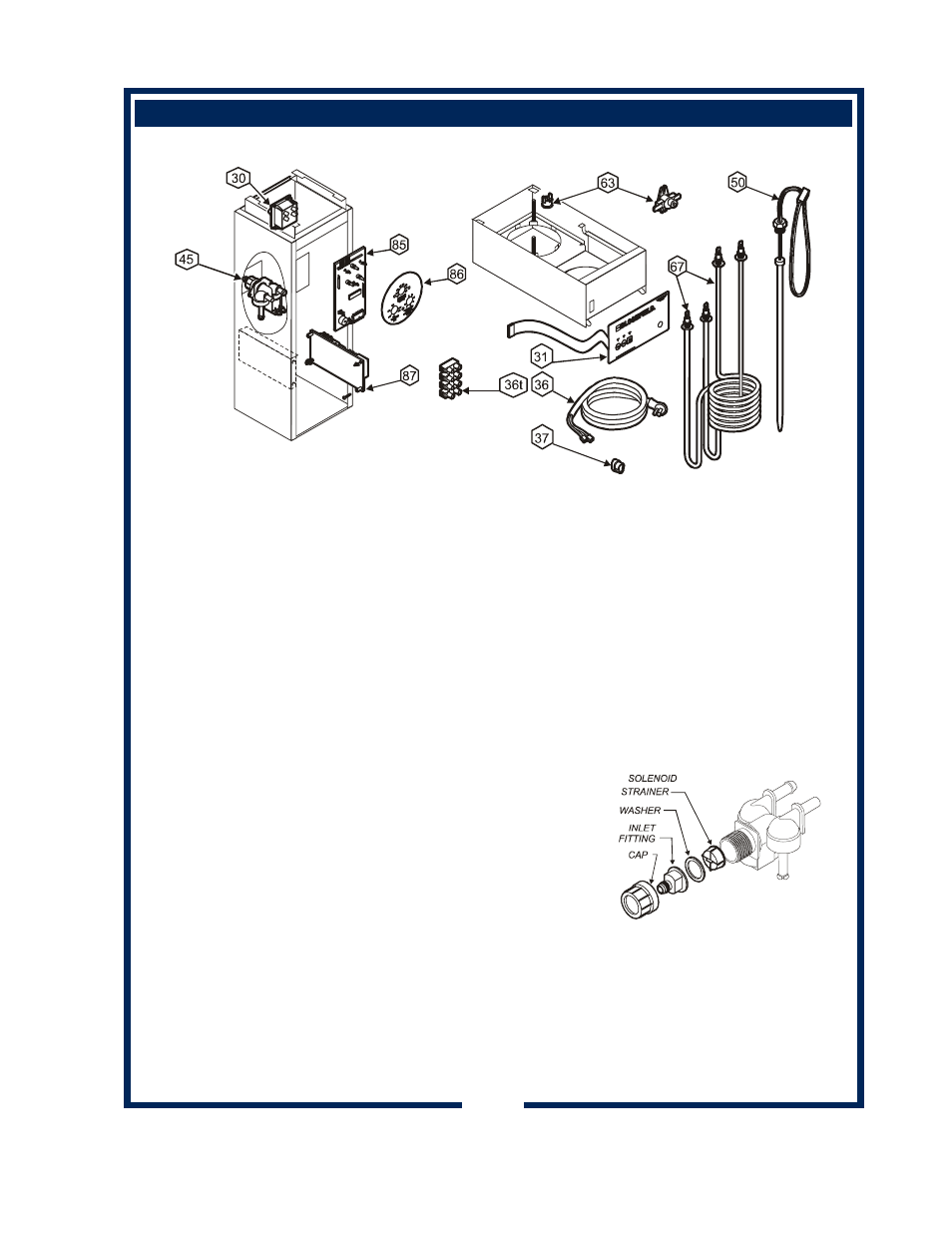

EXPLODED VIEW & PARTS LIST (continued)
