Billion Electric Company BIPAC 6404VGP - Manual (Page 14)

VoIP/(802.11g) Broadband Firewall Router
Chapter 3: Basic Installation
13
Configuring PCs in Windows 2000
1.
Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and Dial-up Connections.
2.
Double-click Local Area (“LAN”) Connection. (See Figure
3.5)
3.
In the LAN Area Connection Status window, click
Properties. (See Figure 3.6)
4.
Select
Internet Protocol (TCP/IP) and click Properties.
(See Figure 3.7)
5.
Select the Obtain an IP address automatically and Obtain
DNS server address automatically radio buttons. (See
Figure 3.8)
6.
Click
OK to finish the configuration.

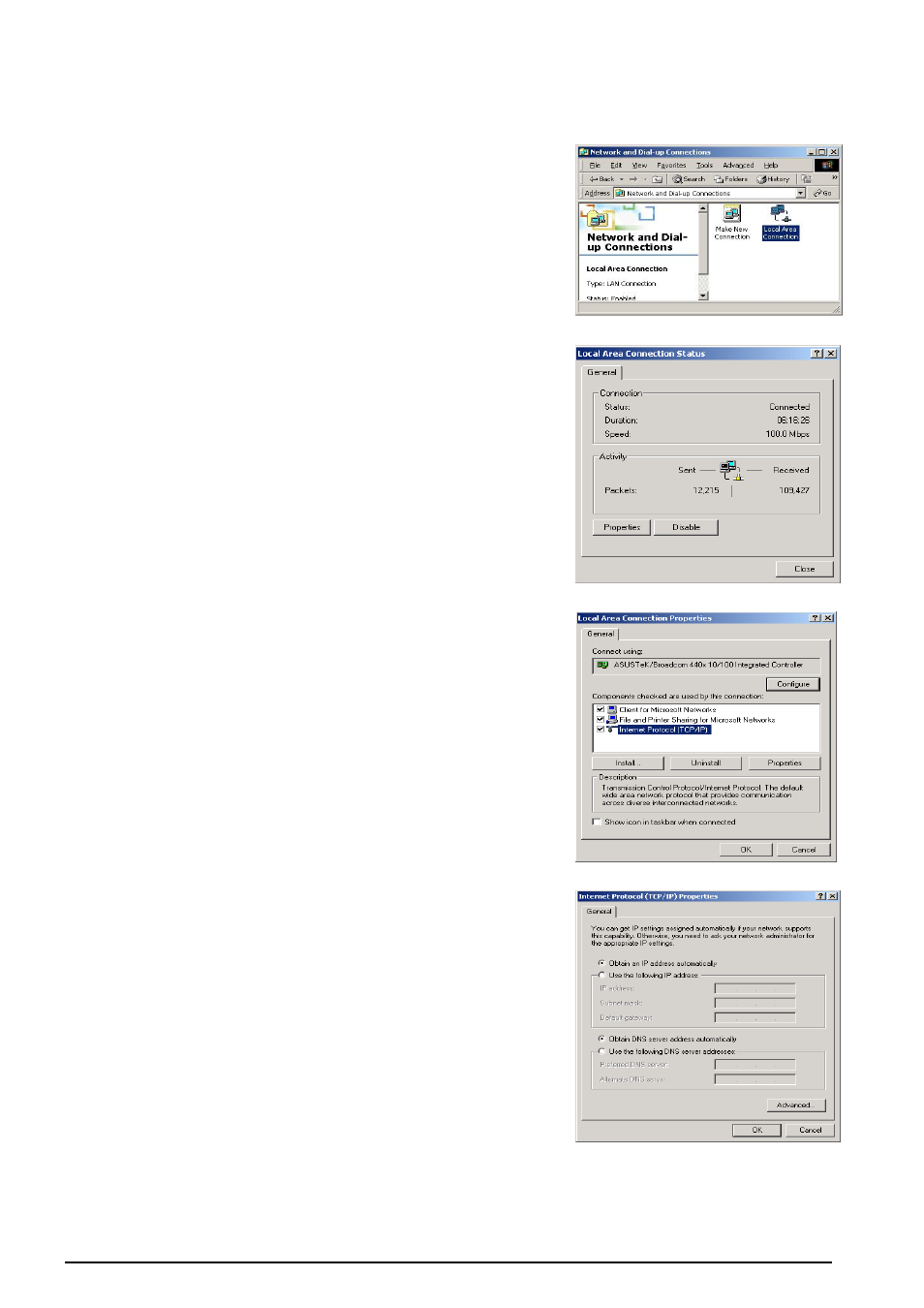

Figure 3.5: LAN Area Connection
Figure 3.6: LAN Connection Status
Figure 3.7: TCP / IP
Figure 3.8: IP Address & DNS
Configuration
