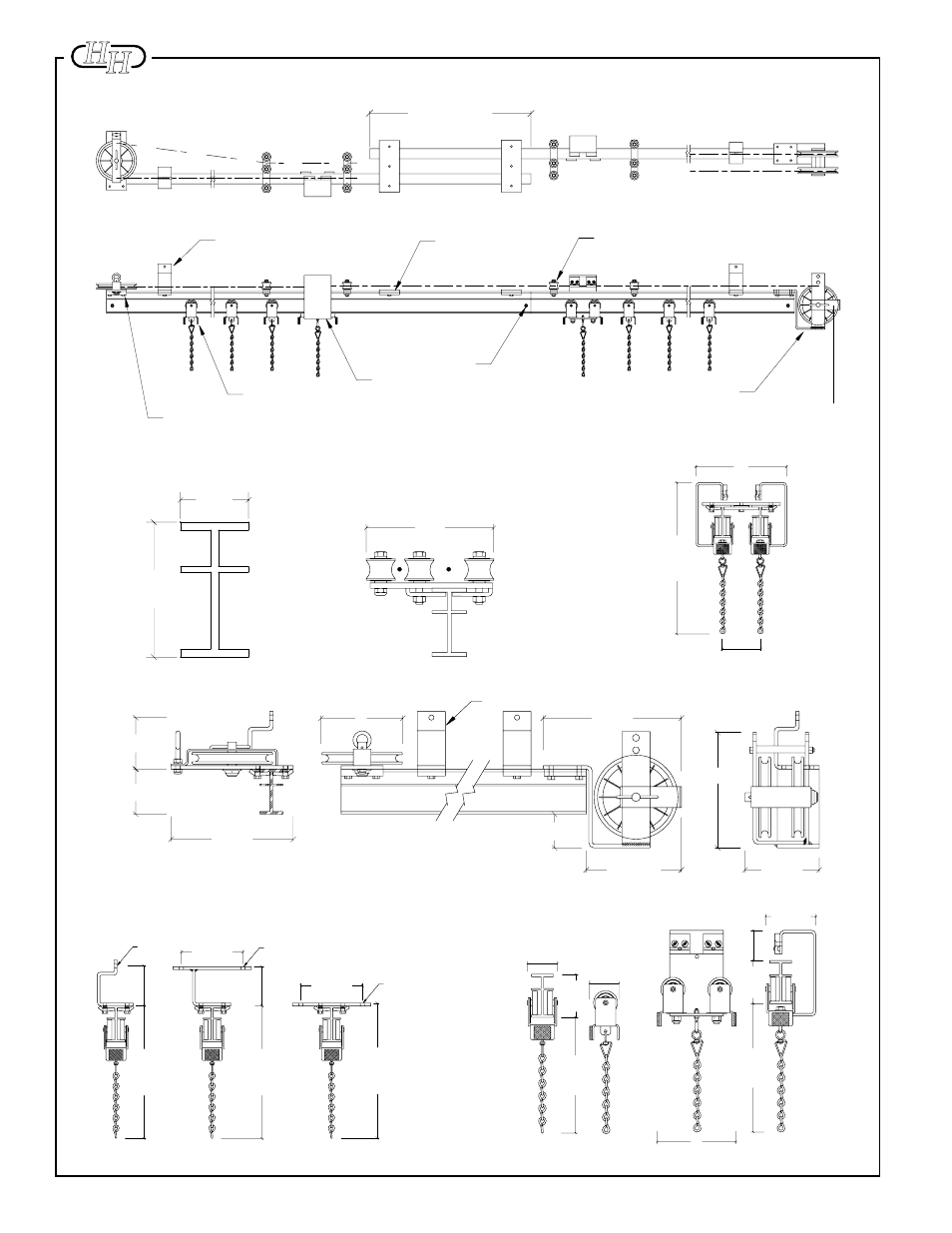

PLAN - MODEL 501 COMPLETE TRACK
ELEVATION - MODEL 501 COMPLETE TRACK
504 SINGLE END PULLEY
503 DOUBLE END PULLEY
501 SINGLE CARRIER AND 502 MASTER CARRIER 506, 511 AND 531 TRACK HANGERS
510 TRACK 518 CABLE GUIDE TRACKS AT CENTER OVERLAP
501 TRACK
NOTE: 516 dimensions similar.
&
504 SINGLE END PULLEY
501 SINGLE CARRIER
502 MASTER CARRIER
506 CLAMP HANGER 505 OVERLAP CLAMP
509 END STOP
503 DOUBLE END PULLEY
518 CABLE GUIDE
2'-0" OVERLAP
3-1/4"
1-5/8"
6"
9"
15-1/4"
3-3/4"
NO. 506 CLAMP HANGER
3-11/16"
3-3/16"
8-3/4"
6" 9-7/8"
2-7/16"
6-13/16" 5-1/4"
8-1/4"
3/8"Ø 7/16"x1-1/4" SLOT
3/8"Ш
12-1/8"
3-1/2"
12-1/8"
3-1/2"
5-1/2"
12-3/8"
5-1/2"
3-1/4"
2-1/4"
2-1/4"
8-7/8"
6"
9-3/4"
2-1/4"
3-1/4"
3-3/4"
