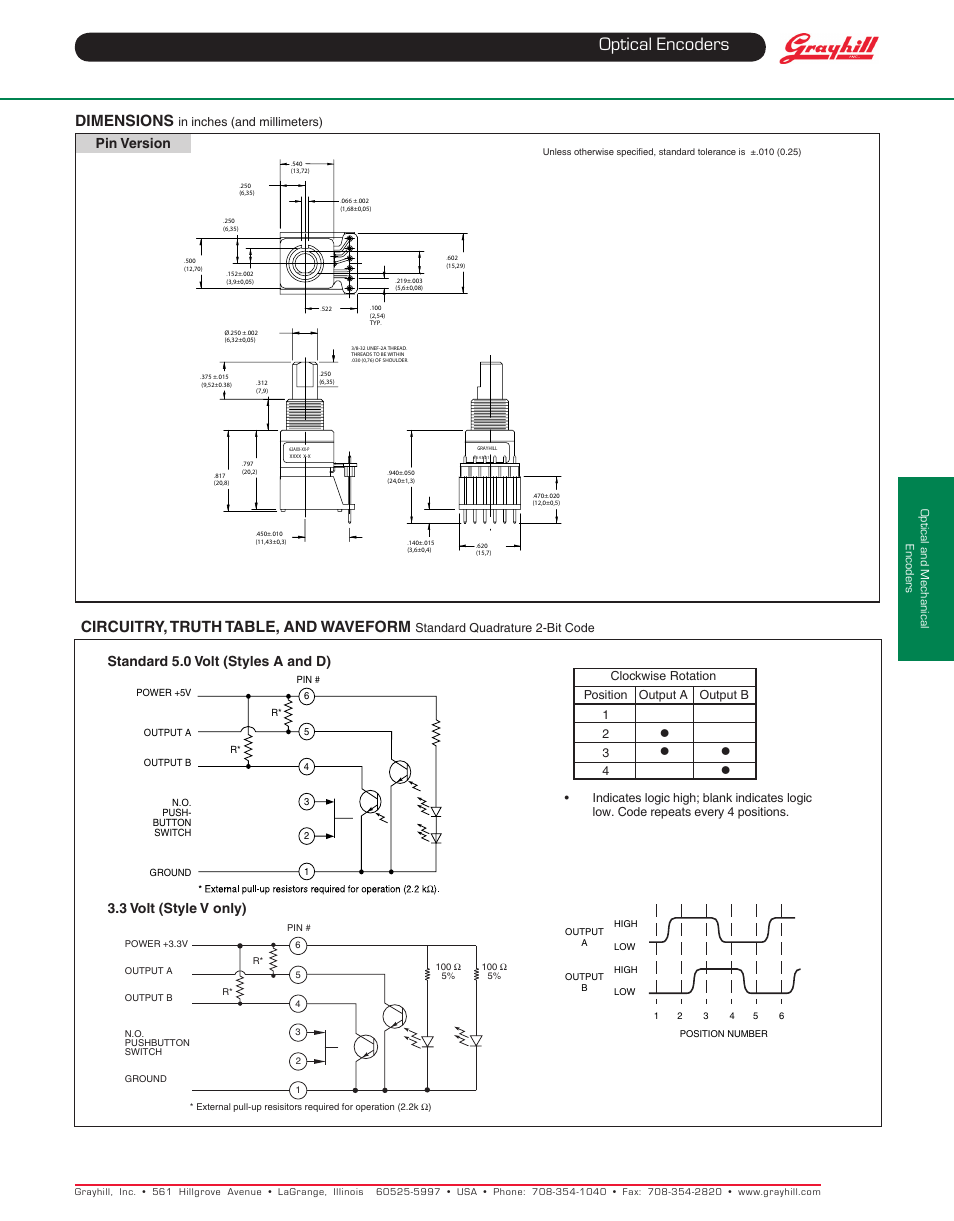

Optical encoders, Dimensions, Circuitry, truth table, and waveform – Grayhill Human Interface Optical Encoders 62V Series User Manual
Page 2: Pin version
