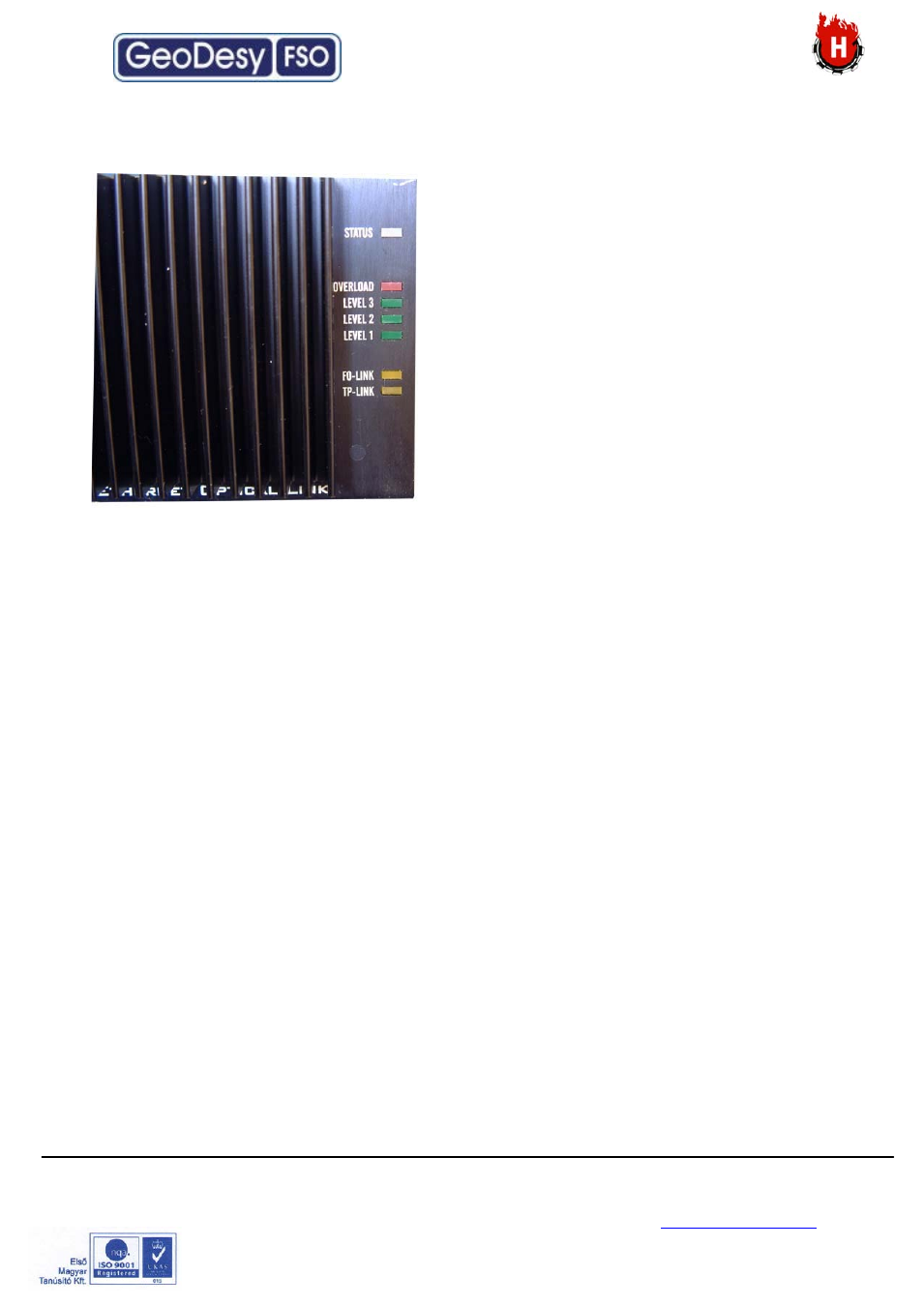

7.2 Meaning of the LEDs
FO Link:
Fibre optical link between the two heads.
TP Link:
Copper link between the head and the
Network equipment.
Level 1:
25% of the total (acceptable by the receiver)
incoming power It indicates after 25µW
incoming light efficiency.
Level 2:
50% of the total (acceptable by the receiver) incoming power. It indicates after 50µW
incoming light efficiency.
Level 3:
100% of the total (acceptable by the receiver) incoming power It indicates after
100µW incoming light efficiency.
Saturation:
Overload (Overloading can cause stop in the communication, and permanently it can
damage the receiver) After 15mW (or higher) incoming light efficiency
