Billion BiPAC 2073 / 2074 Homeplug AV 200 Ethernet Series

- 7 -

Hardware Installation

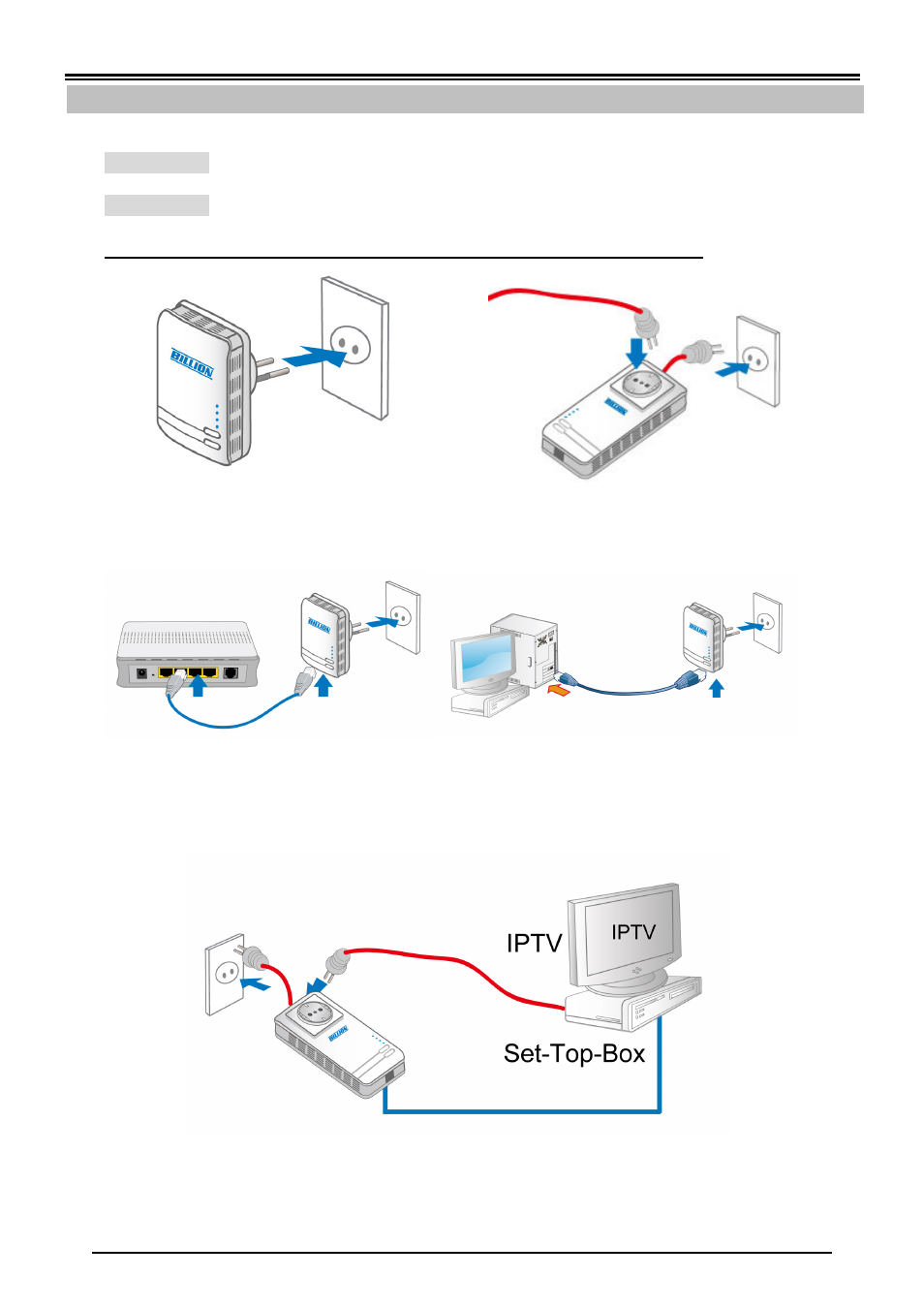

1. Power Connection

BiPAC 2073
Plug the Homeplug AV 200 Ethernet Adapter into the wall outlet/socket.
BiPAC 2074
Plug the embedded AC power cable to the wall outlet/socket.
Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to the Ethernet port on HomePlug AV 200
Ethernet bridge/adapter and the other side to the device’s Ethernet interface.

3. AC Pass-Through Connection (BiPAC 2074 only)

To plug IT electrical devices (e.g.: ADSL router, Set-to-box, notebook..) into the built-in AC
pass-through with an embedded low-pass filter to prevent electrical noise from interfering on
your powering network.
