Hardware Overview

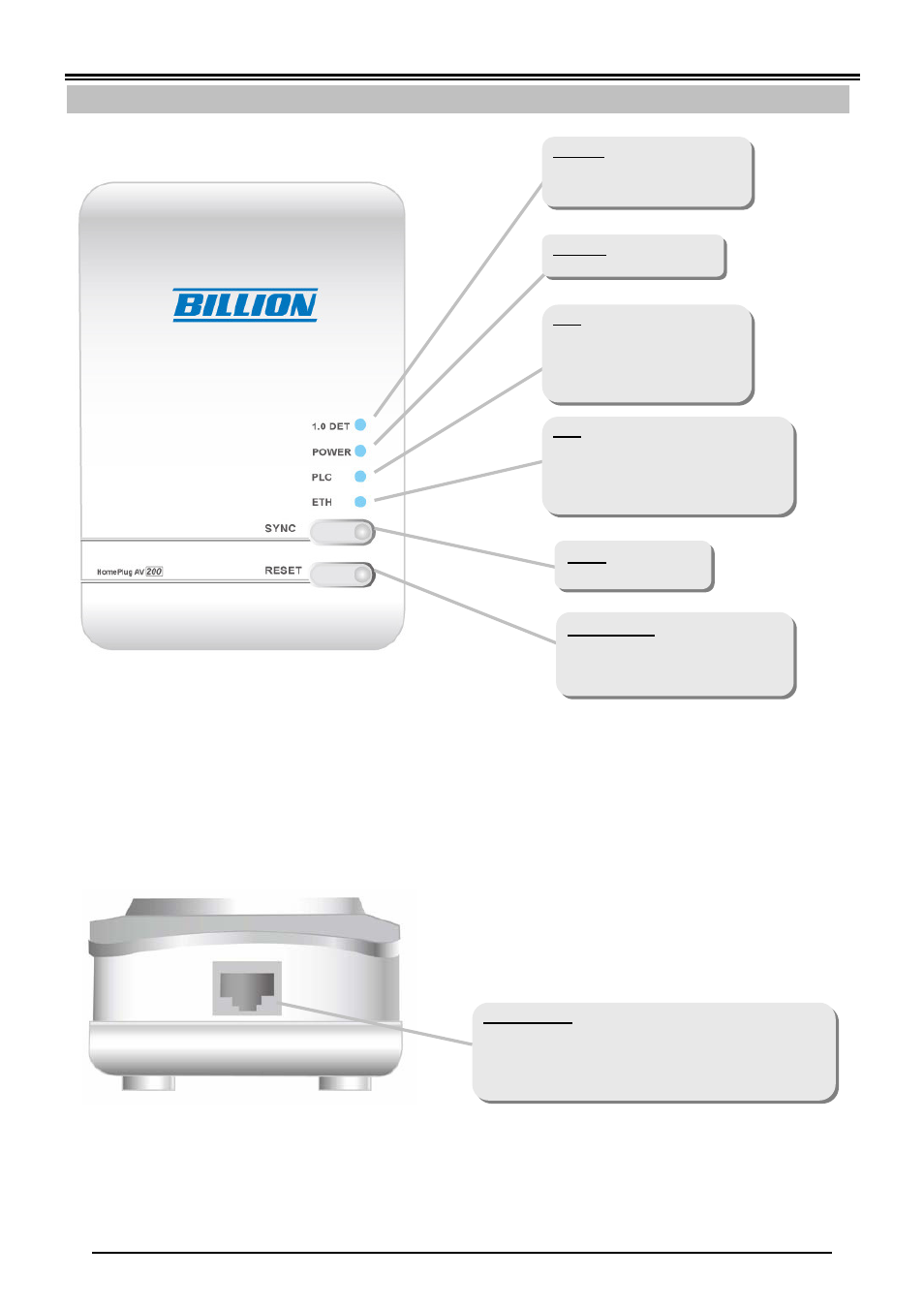

The LEDs and Buttons
The Ethernet Port
ETH:
* Lit when connected to an Ethernet
device.
* Blinking when data is transmitted
or received via Ethernet port.
PLC:
* Lit when the power line
sync is established.
* Blinking when networking
is active
Ethernet Port:
* Connect your device (e.g.: computer, router,
hub/switch , IP pone, IPTV set-top-box, gaming
consoles…) to a LAN port, using the included
RJ-45 Ethernet cable.
POWER:
* Lit when power is ON.
SYNC:
* Power line sync
Reset Button:
* Press the reset button more
than 2 seconds to reset
device to factory default.
1.0 DET:
* Blinking when detecting
HomePlug 1.0 device.
