Installation RTCSmp Induction Built-In Line Dual Zone Cookers
Part # 4532285 Rev 4 (4/29/14) 13

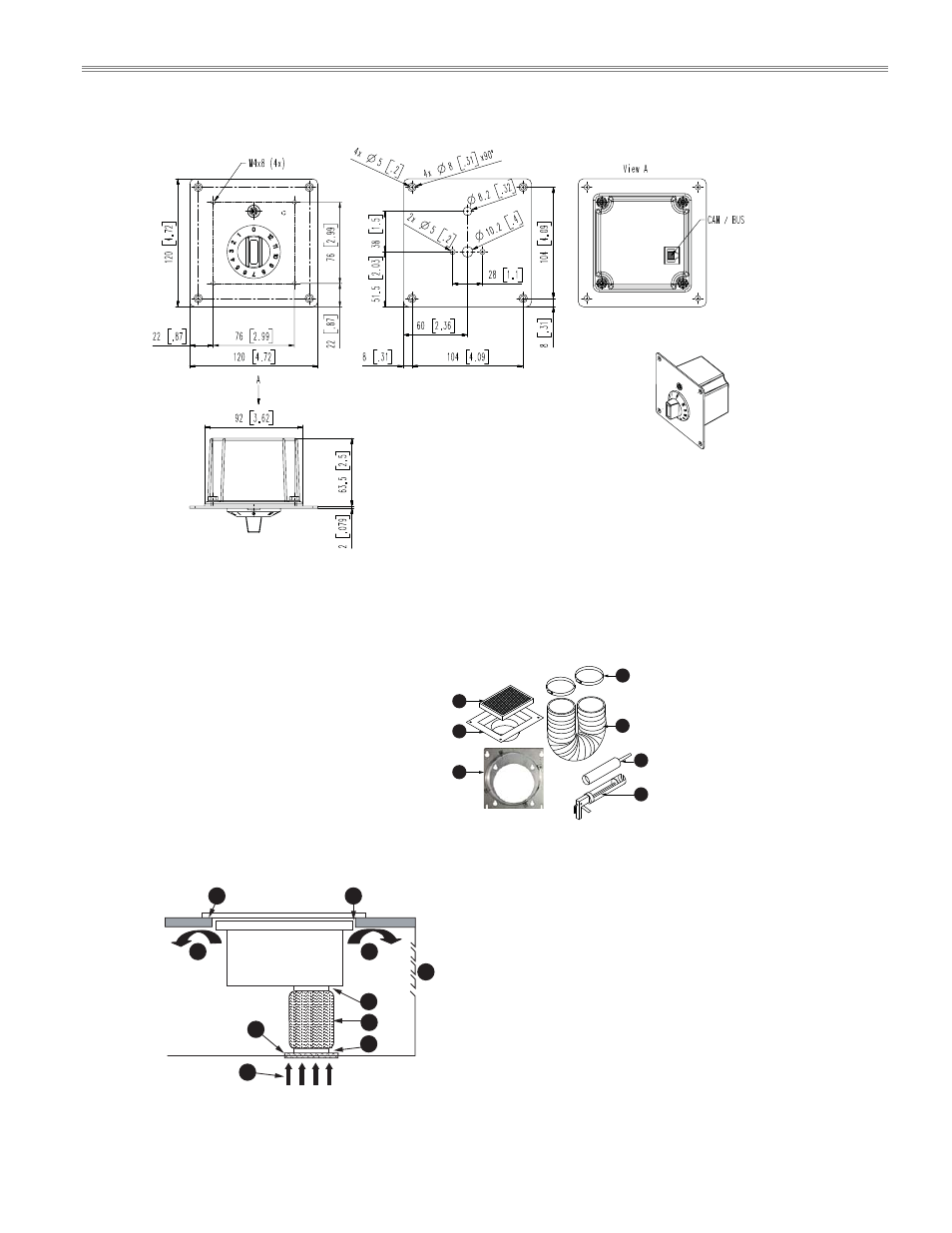

4.3.2.3 Dimensions: Control Unit RTCSmp Built-In SHDUIN
(measurements in mm and [inch])
4.3.3 Air Intake Kit Installation
4.3.3.1 Components
An Air Intake Kit (Part Number 95000020)
is provided. The illustration shows the
components included in the kit.
To operate effectively, the induction unit
requires adequate cool air intake. See 4.1
Location and 4.2 Ventilation .
A. Air Intake Filter
B. Air Filter Holder
C. Air Duct Holder
D. Clamp (x2)
E. Flex Aluminum Air Duct
F. Silicone Adhesive (PACTAN)
G. Caulking Gun
An example of an Air Intake Kit connected to a built-in induction unit:
A. Cut Out Opening
B. Silicone Adhesive (PACTAN)
C. Air Exhaust Opening close to the top
D. Duct mounted to the unit
E. Flex Aluminum Air Duct (max. length 244cm [96”] )
F. Air Duct Holder, Air Duct and Hose Clamp.
G. Removable Air Intake Filter and Filter Holder Mounted
onto the Cabinet
H. Fresh Air Supply
I. Hot Air Exhaust from the Induction Unit
A
B
D
E
C
F
G
A B
D
E
F
G
C
H
I I
