Installation Garland RTCSmp Induction Built-in Griddles
Part # 4532291 Rev 2 (01/15/14) 11

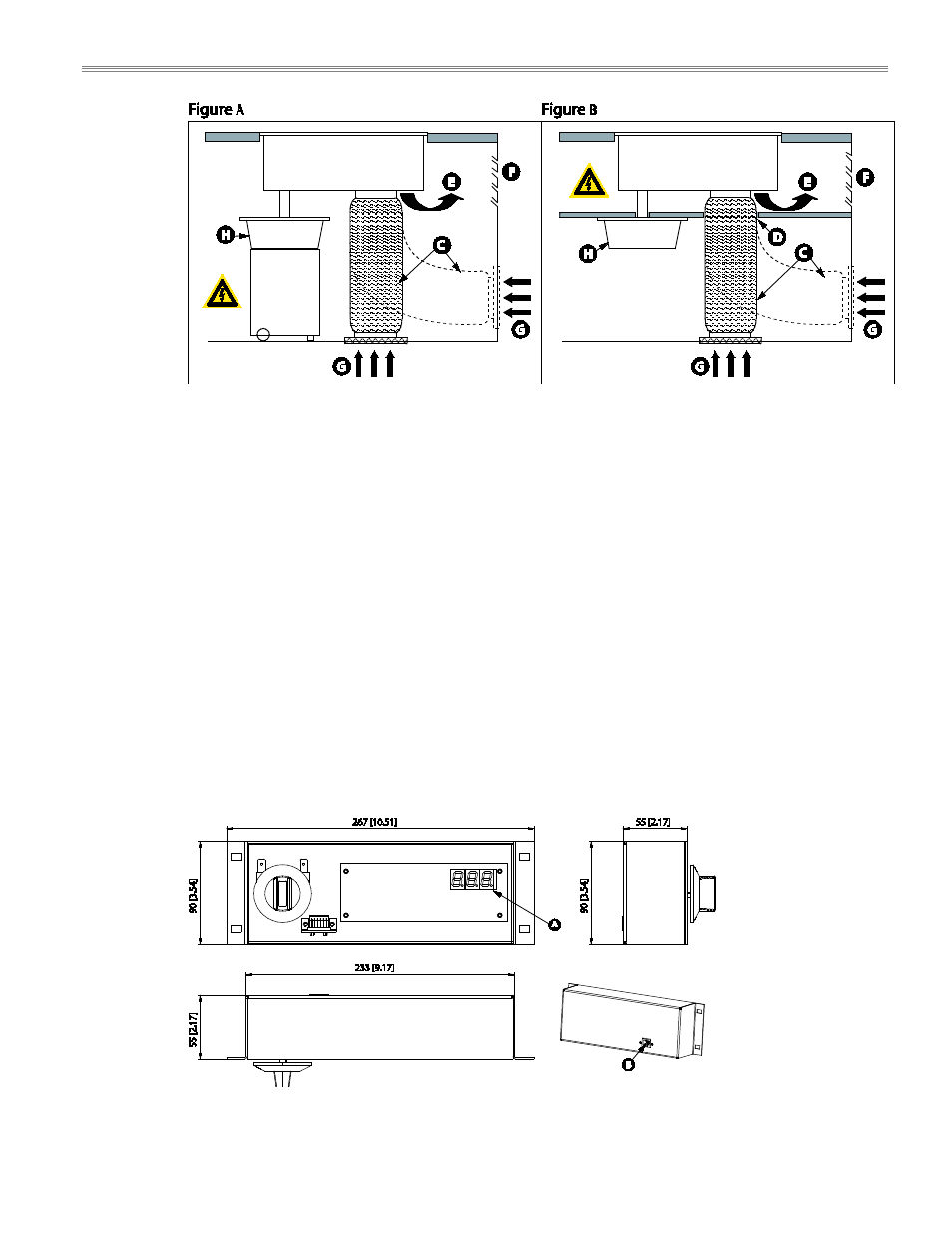

The call-outs in the illustrations show:
(C) Air Intake Kit: the air duct can be connected from the unit to the bottom or to the side of the cabinet.
(D) If there is no direct path to install the air intake duct/grease chute, make openings on an inner shelf for
the duct/chute to pass through.
(E) Hot air exhaust from the induction unit.
(F) Louvered air exhaust opening installed on the cabinet.
(G) Fresh air supply through the intake duct.
(H) Custom-built grease bucket with extended grease chute.
4.5 Dimensions and Installation
4.5.1 Control Unit
The induction unit comes with a complete control unit and a RJ-45 cable.
NOTE The control unit is to be stud-mounted VERTICALLY onto the back of the panel. Installers are
responsible for choosing the appropriate fasteners for the installation.
Dimensions of Control Unit for RTCSmp Install Griddle-Line—Single (measurements in mm and [inch])
A. Digital Display
B. CAN/BUS
Connection
