Gamber-Johnson 7160-0283 - Manual (Page 6)

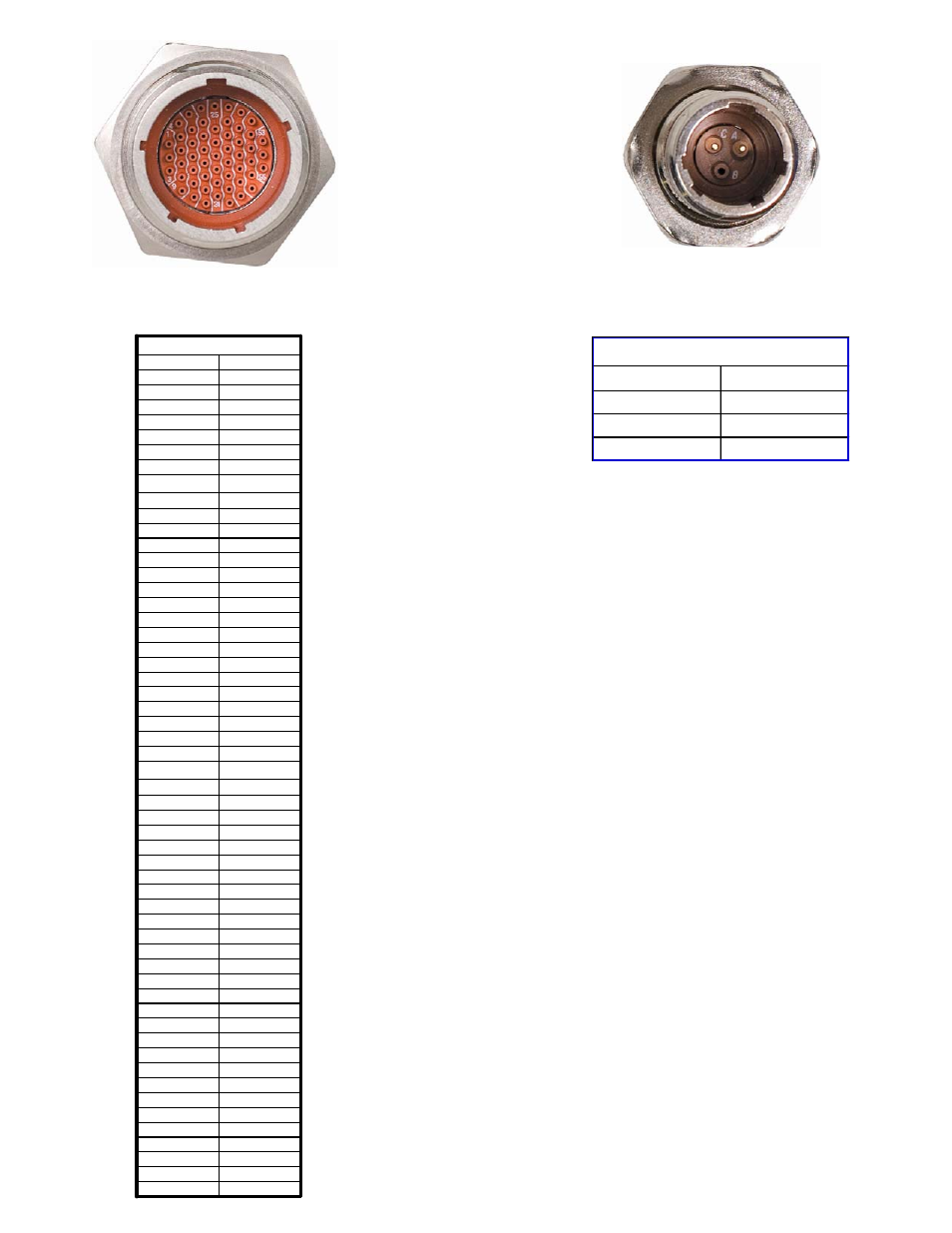

Data Cable Pinout
J1 Signal
4 USBPWR2
5 USBDM2
6 USBDP2
7 USBGND2
8 USBPWR3
9 USBDM3
16 USBDP3
15 USBGND3
14 USBPWR4
13 USBDM4
12 USBDP4
11 USBGND4
17 DCD1
18 RI1
19 OUT1
20 SIN1
21 RTS1
22 CTS1
23 DSR1
24 DTR1
31 GND
30 DDC2BC
47 TXD_PLUS
48 TXD_NEG
49 RXD_PLUS
50 RXD_NEG
51 AGND
52 HOUT
40 CRTR_GND
41 CRTR
42 CRTG_GND
43 CRTG
44 CRTB_GND
45 CRTB
46 GND
32 HSYNC
33 SYNC_GND
34 VSYNC
35 DDC2BD
36 +5V VIDEO
1 +5V
2 +5V
39 GND
25 GND
3 NC
10 NC
26 NC
27 NC
28 NC
29 NC
37 NC
38 NC
53 NC
54 NC
55 NC
Pinout Table
Power Cable Pinout
J2 Signal
A Return / GND
B NC
C +24Vdc
Pinout Table
