BenQ Digital Projector LX60ST - Manual (Page 56)

Specifications 56

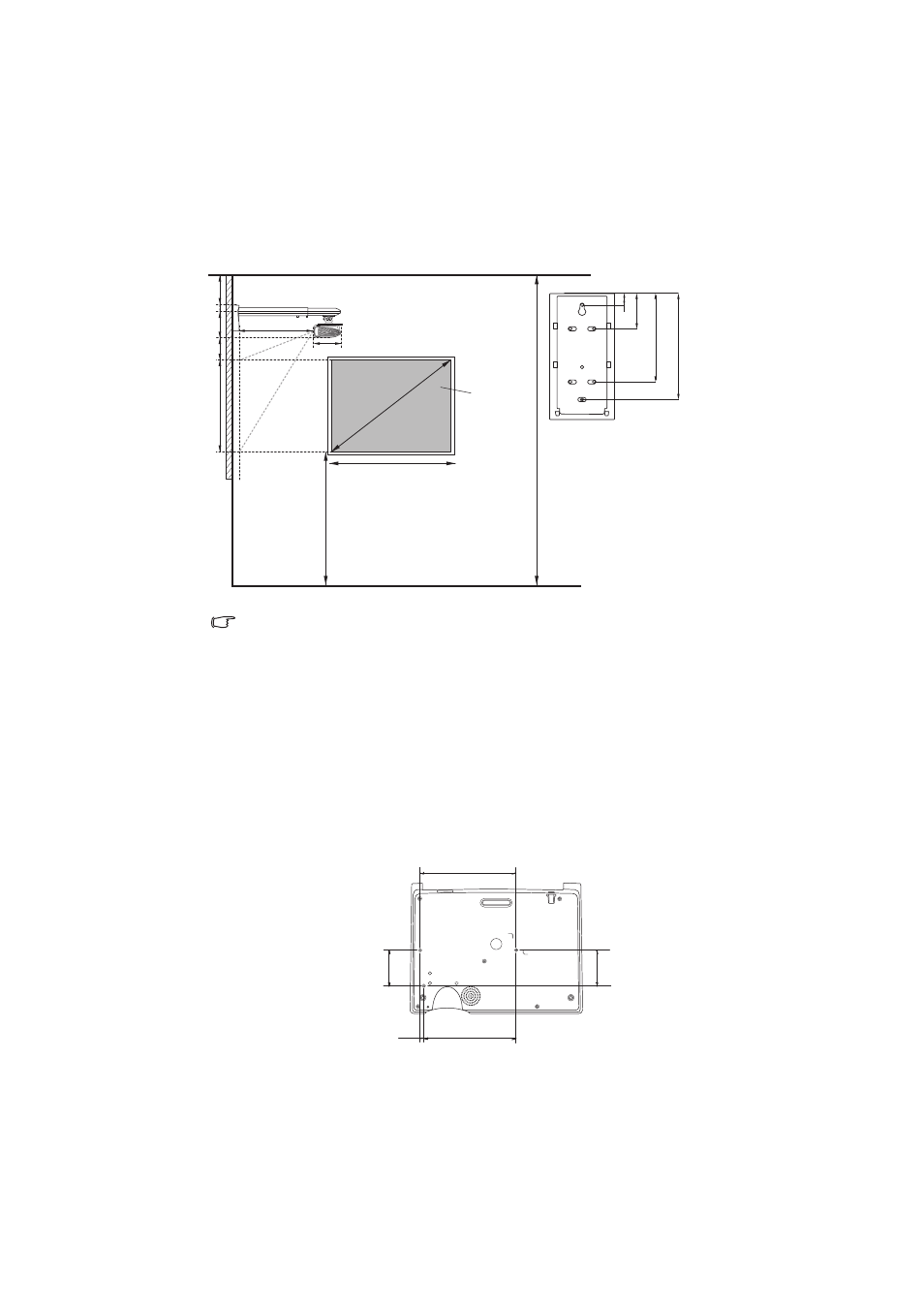

Minimum Ceiling Height (mm) = f + H + b + 60 + 274+ c
• The dimensions are based on the BenQ wall mount (P/N: 5J.J4R10.001).
• All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you
intend to permanently install the projector, you should physically test the projection size and distance
using the actual projector in situ before you permanently install it, so as to make allowance for this
projector's optical characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
• The dimensions supplied are offered as a guide only and may differ depending on several factors relating to
any specific installation.
• The dimensions are based on the projector being configured with zero keystone correction.
• The dimensions assume that the wall mount arm is positioned 90° from the bottom case of projector and
screen surface.
Ceiling mount screw:
M4 x 8 (Max L = 8 mm)
Unit: mm
20 60
150
180
60
c
b
a
H
W
D
f
e
274
298
Ceiling
floor
Distance from floor to bottom of
sc
reen Projection area
Wall plate
207.6
76.5
77
199.6 8
