Pedal Hubs
Pedal Hub
Pedal Hub
Pedal Axle

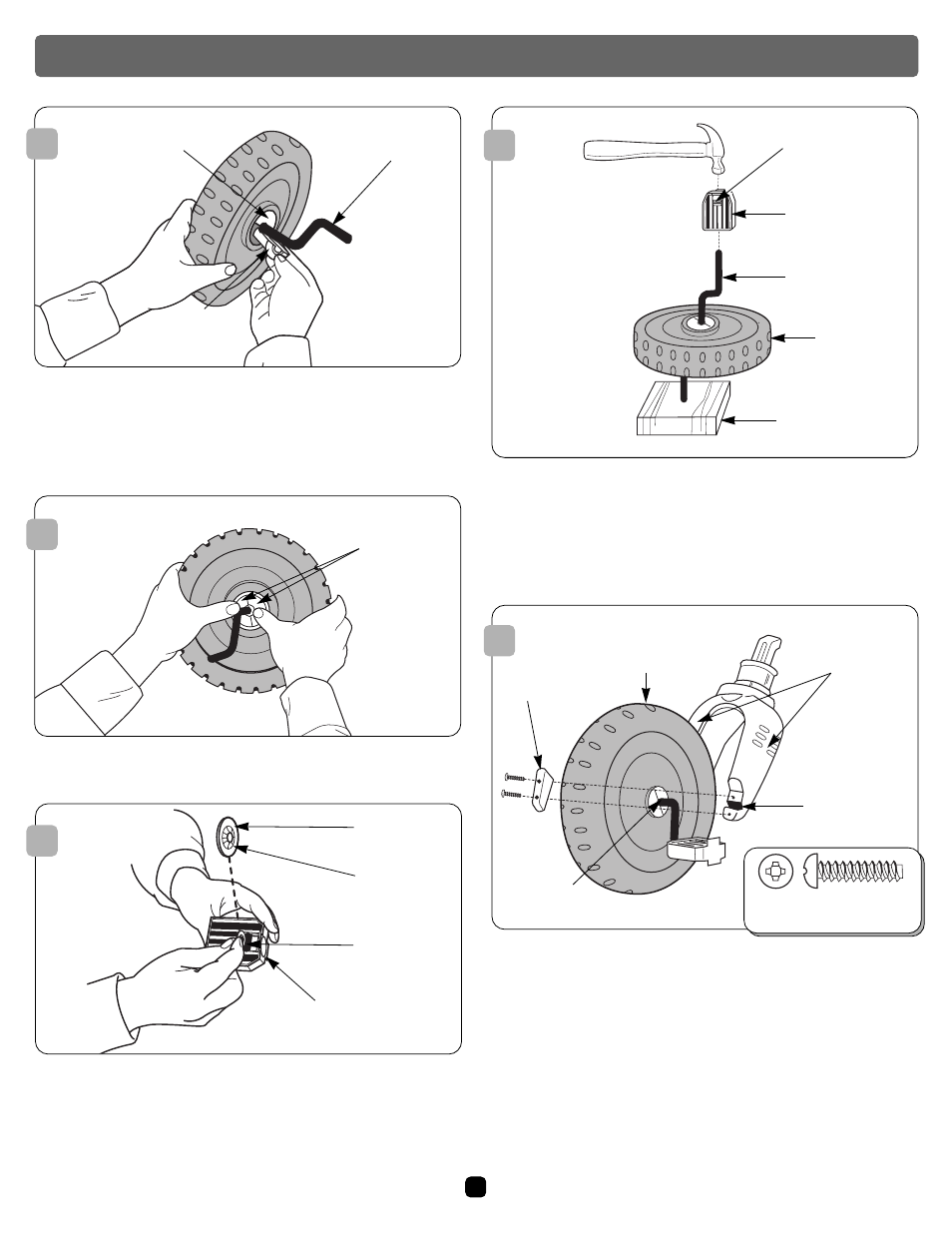

• Turn the front wheel assembly over.
• Insert a pedal hub onto the top of the pedal axle and into
the hole in the center of the front wheel.
• Insert the remaining pedal hub below the pedal axle and
into the hole in the center of the front wheel.
• Push the pedal hubs into the center of the front wheel until
they are flush with the surface of the front wheel.
• Insert a lock washer into the slot in the pedal. Make sure
the raised tabs on the lock washer are facing the “closed”
or outside end of the pedal.
• Insert the other lock washer into the other pedal.
Lock Washer
Raised Tabs
Slot
Closed (Outside) End
Assembly
8
9
10
• Place the front wheel assembly between the fork arms so
that the pedal axle fits into the groove at the bottom of
each fork arm.
• Place a fork cover over the pedal axle on one fork arm.
• Insert two #8 x
3 /
4
" screws into the fork cover and
tighten with a Phillips screwdriver. Do not over-tighten.
• Repeat this procedure to attach the other fork cover
to the other fork arm.
Fork Arms
Pedal Axle
Groove
Fork Cover
#8 x 3 /
4
" Screw – 4
SHOWN ACTUAL SIZE
• Place a scrap block of wood under the front wheel assembly.
• Fit a pedal on the pedal axle.
• With the lock washer centered over the pedal axle end, tap
the pedal with a hammer until it is secure.
• Repeat this procedure to attach the other pedal to the other
end of the pedal axle.
Lock Washer
(Inside)
Front Wheel
Assembly
Front Wheel Assembly
Scrap Block
of Wood
Pedal Axle
Pedal
11
12
