Assembly – Barbie BUTTERFLY TRIKE 72639 User Manual

Page 4

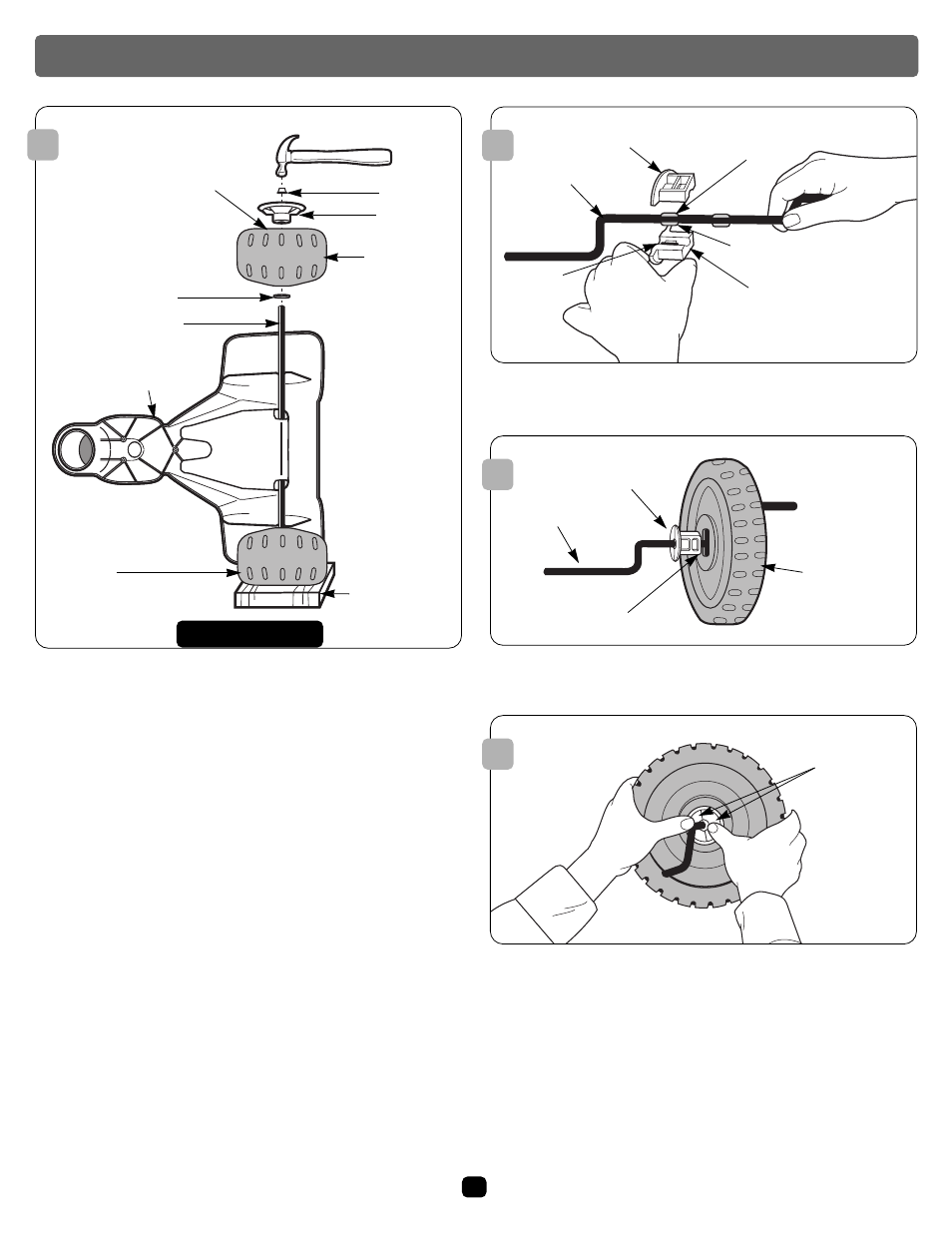

• Fit two pedal hubs onto the pedal axle metal tabs. Make

sure the metal tabs fit into the slot in each pedal axle cover.

Pedal Hub

Pedal Axle

Metal Tab

Slot

• While holding the pedal hubs on the pedal axle, insert the

pedal axle into the hole in the center of the front wheel.

Hole

Pedal Axle

Pedal Hubs

Front Wheel

• Push the pedal hubs into the center of the front wheel until

they are flush with the surface of the front wheel.

Pedal Hubs

• Turn the frame on its side with the exposed end of the

straight axle up.

• Place the assembled rear wheel on the scrap block of wood.
• Slide a washer onto the straight axle.
• Slide a rear wheel (indented side up) onto the end of the

straight axle.

• Slide a hubcap (peg side down) onto the straight axle.
• Fit a cap nut on the end of the straight axle.
• Tap the cap nut with a hammer. Gently pull the rear wheel

up to be sure the cap nut is securely attached to the
straight axle.

• Set the frame assembly aside.

Cap Nut

Indented
Side Up

Assembled Rear
Wheel

Straight Axle

Rear Wheel

Washer

Assembly

Hubcap

Frame

Bottom View

Scrap Block
of Wood
