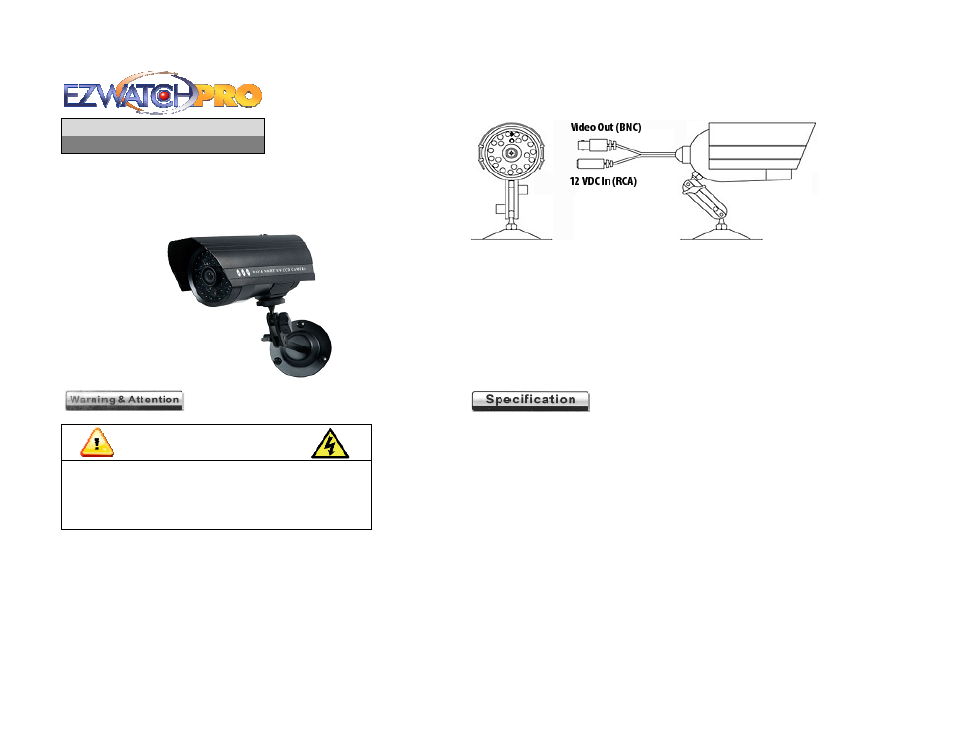

EZWatch 15-CM20WN User Manual

Warning

background image

DIGITAL VIDEO CAMERA

User's Manual

SKU# 15-CM20WN
Weatherproof Tube Style B/W Camera
48 IR LEDS

• Suggested mounting height 8'-12'

• Do not mount camera directly to a metal surface

• Do not point camera directly into light sources

Attention items:
• Do not touch CCD or lens
• Do not use any unidentified power supply
• Avoid installation in unstable places

Temperature: -20⁰C/+50⁰C

WARNING

Attention:

To reduce the danger of electric shock, please do not open the case (or back

cover) of camera; everything needed for user operation is on the surface of

the camera; please seek help from a qualified professional for repair.

Image Sensor 1/3" SONY CCD High Resolution
Effective Pixels PAL:512(H)x582(V) NTSC:512(H)x492(V)
Signal system PAL/NTSC
Horizontal resolution 600TVL
Minimum illumination 0Lux(IR LED ON)
Electronic shutter Auto:1/50(1/60)-1/100,000Sec
S/N ratio >48dB
Gamma 0.45
Lens 3.6mm F1.6
Video output 1.0Vp-p, 75Ω
IR wave length 880-940 nM
Power supply DV 12V (+/-10%)
Power consumption 500mA (+/-10%)
IR distance 35-50M

• Do not use camera in the following conditions,
