ELKHART PRODUCTS CORPORATION Customer Service (574) 264-3181
www.elkhartproducts.com
63

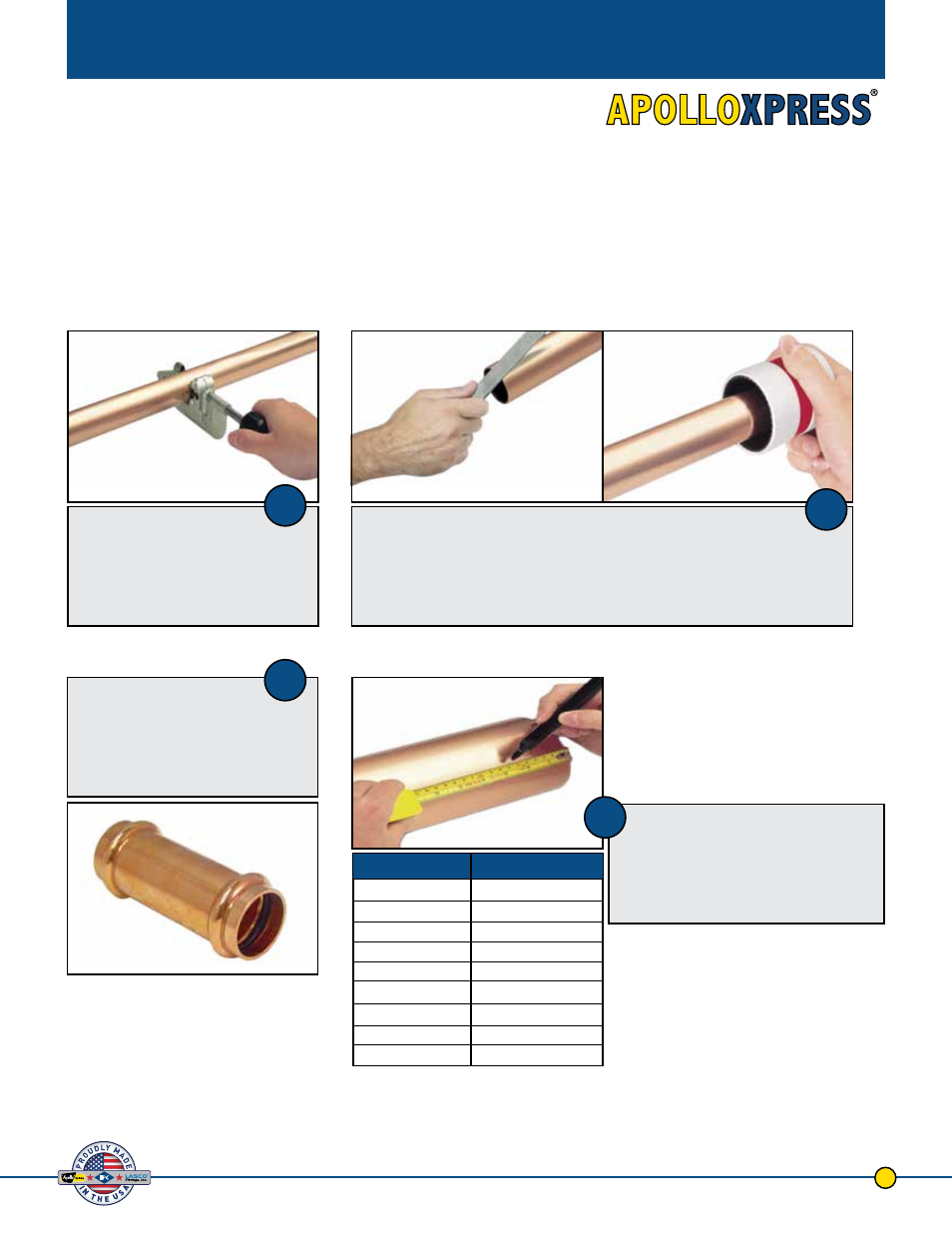

Cut the tube square using a rotary
tube cutter or fine toothed steel saw.
Remove internal and external burrs at tube ends using find tooth file or commercially
available de-burring tools.
1
2
PRESSInG InSTRUCTIOnS
TOOLS
APOLLOXPRESS® products are tested and approved for use with multiple tool manufacturers. Please see our “Jaw Compatibility” on page 65 for
specific approvals. Like other tools and equipment pressing tools and their accessories require servicing. Please follow tool manufacturer instruction.
Mark insertion depth by inserting
tube into the fitting or valve with
twisting motion until it meets tube
stop OR tape measure and insertion
depth chart.
4
nominal Pipe Size
1/2”
3/4”
1”
1 ¼”
1 1/2”
2”
2 1/2”
3”
4”
Insertion Depth (in)
3/4” (0.75”)
15/16” (0.94”)
15/16” (0.94”)
1-1/16” (1.06”)
1-7/16” (1.44”)
1-9/16” (1.56”)
1-7/8” (1.9”)
2-1/8” (2.1”)
2-1/2” (2.5”)
Inspect fitting or valve to insure bead
O-ring is present, un-damaged and free
from dirt and debris.
3
Pressing Instructions
