REPAIR PARTS
See figures 18 for CP Grill repair parts. Order all repair parts from your Broilmaster dealer. To help ensure prompt and
accurate filling of orders, please supply the following information when placing a repair order:
1. MODEL NUMBER OF CART 2. PART NAME 3. PART NUMBER 4. QUANTITY OF PARTS NEEDED
KEY QTY. S5 CP
NO. PART NAME PER CART PART NO.
1 Pedestal Cart Ptd. 1 B057825
2 Base Cylinder Shelf Ptd. 1 B057819
3 Axle 17" 1 B058124
4 Plastic Wheel 7" 2 B100095
5 Hub Cap 2 B100108
6 Foot Cart 1 B058619
7 #10 x 3/8" Screw 20 B053779
8 Rear Cart Brace Ptd. 1 B057812
9 1/4 - 20 x 1-1/4 Screw 1 B100114
10 1/4 x 5/8" Lock Washer 1 B100139
11 1/4 - 20 Hex Nut 1 B100120
12 Cylinder Retainer Assembly 1 B064791
13 1/4 - 20 Wing Nut 1 B100126
14 Bracket Ped/Grill (Left) 1 B057815
15 Bracket Ped/Grill (Right) 1 B057816
16 Rubber Grommet 3 B100103

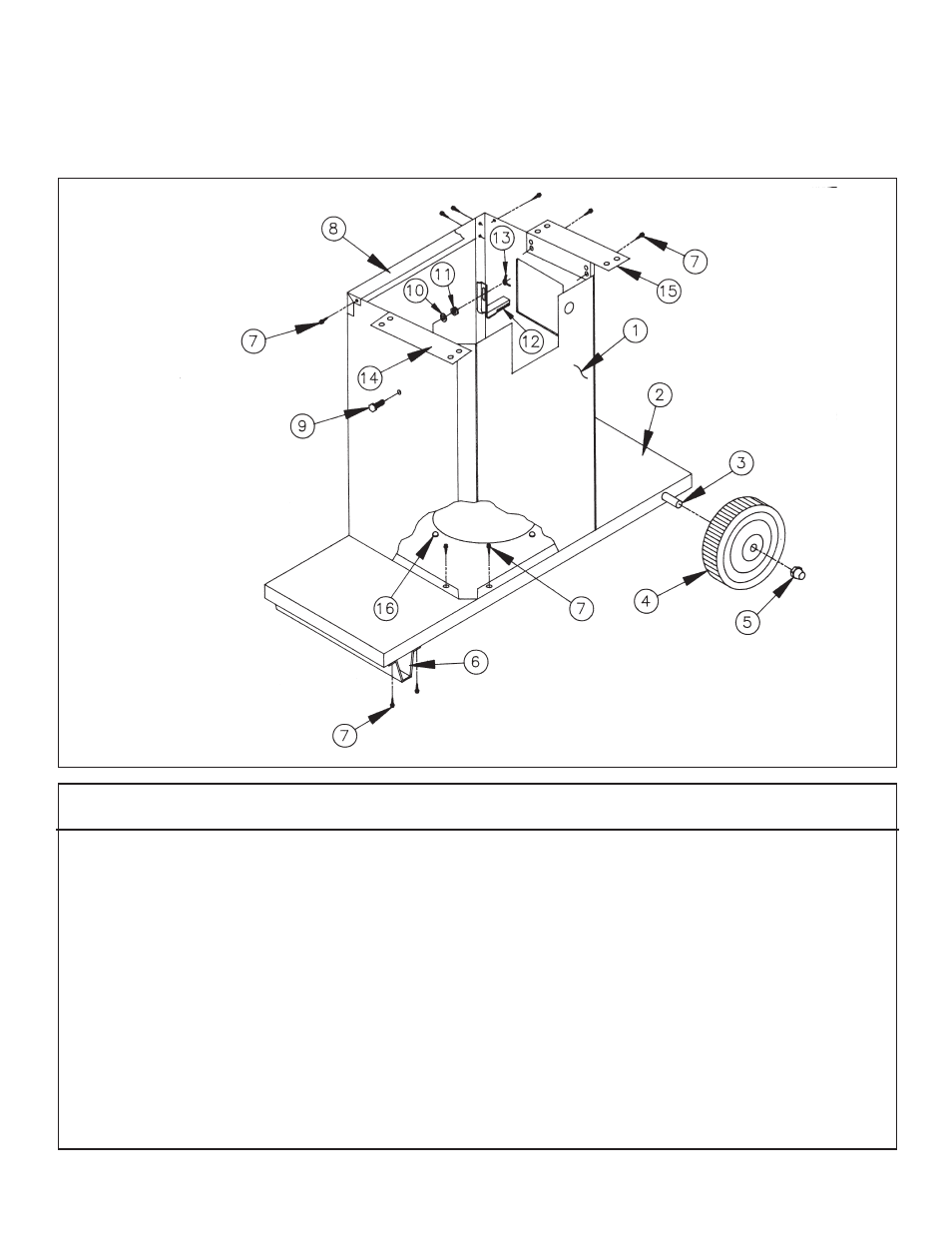

FIGURE 17
ASSEMBLY OF CART
FOR CP GRILLS
