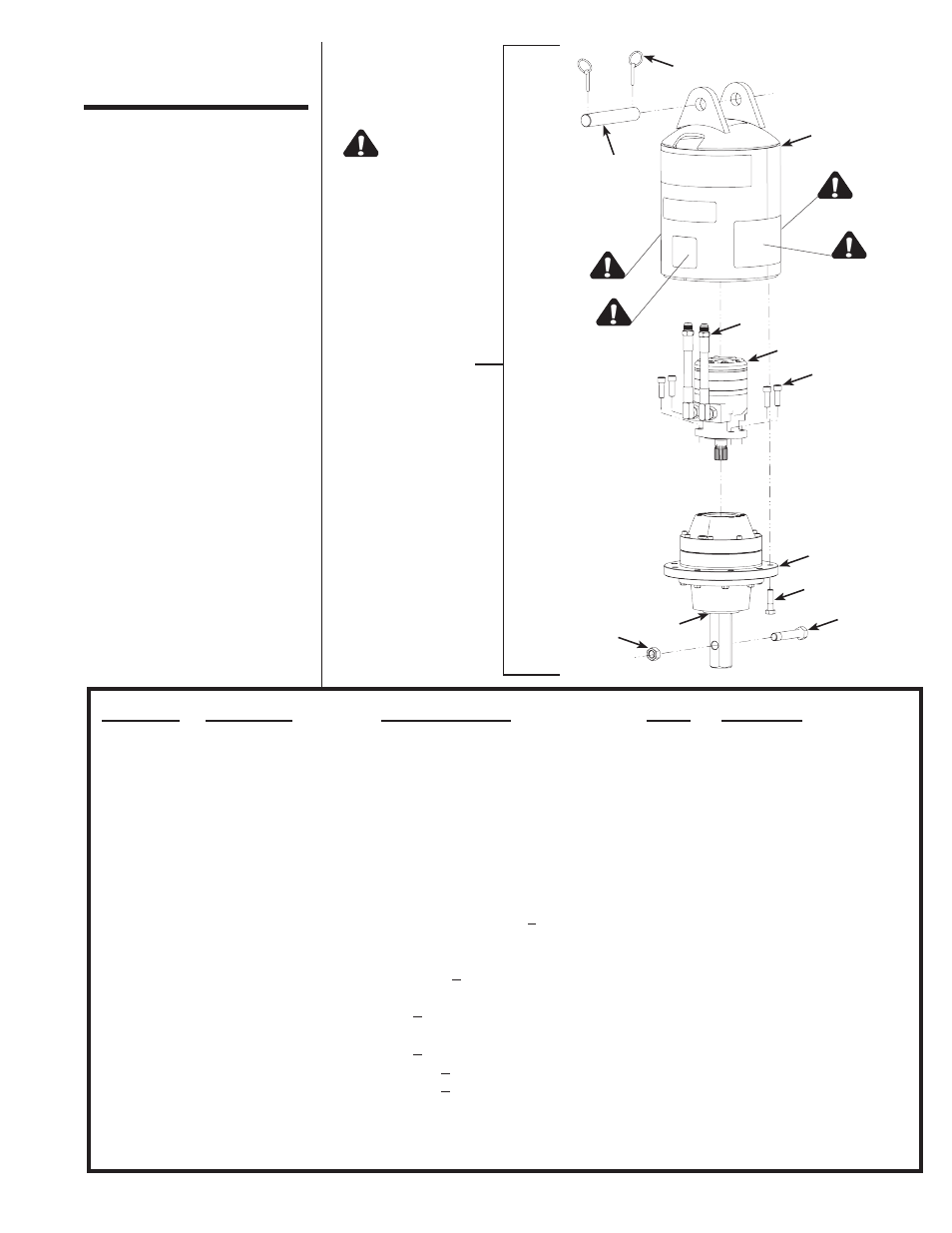

Drive Unit
Parts
= Safety Sign
Location
REF. NO. PART NO.
DESCRIPTION
QTY.
MODELS
1
10061 (R), 10062 (H)
Drive Unit
1
615 Rd. or Hex
10010 (R), 10011 (H)
Drive Unit
1
1025 Rd. or Hex
10015 (R), 10016 (H)
Drive Unit
1
1530 Rd. or Hex
10020 (R), 10021 (H)
Drive Unit
1
2035 Rd. or Hex
2
10969
Housing Assembly
1
615, 1025, 1530, 2035
3
10978
Hose Assembly
2
615, 1025, 1530, 2035
4
10961
Hydraulic Motor
1
615
10962
Hydraulic Motor
1
1025
10963
Hydraulic Motor
1
1530
10964
Hydraulic Motor
1
2035
5
6156
Socket Head Bolt (1/2" 13 x 1-1/2")
4
615, 1025, 1530, 2035
6
10052
Planetary Gear Reduction
1
615, 1025, 1530, 2035 Hex
10053
Planetary Gear Reduction
1
615, 1025, 1530, 2035 Rd.
7
10036
Bolt (9/16” 12 x 2", Gr. 5)
9
615, 1025, 1530, 2035
8
10038
Special Retaining Bolt
1
615, 1025, 1530, 2035 Hex
(3/4” 10 x 4”, Gr. 8, 3/4” of thread)
10039
Special Retaining Bolt
1
615, 1025, 1530, 2035 Rd.
(7/8” 9 x 4-1/4”, Gr. 8, 3/4” of thread)
9
10041
Nut (3/4” 10)
1
615, 1025, 1530, 2035 Hex
10042
Nut (7/8” 9)
1
615, 1025, 1530, 2035 Rd.
10
9871
Output Seal
1
615, 1025, 1530, 2035
11
10032
Pin (1-1/4” x 7-5/8”)
1
615, 1025, 1530, 2035
12
1600
Klik Pin
2
615, 1025, 1530, 2035
1
17
2
4
5
6
7
8
9
3
10
12
11
