Assembly &
Installation
Offset Skid-Steer Mount
Because of the weight
of some components,
and because some
components are difficult
to balance, two people are
required for servicing of
this equipment.
Personal protection
equipment including
hard hat, safety glasses,
safety shoes, and gloves
are recommended during
assembly, installation,
operation, maintenance,
removal, or movement
of the earth auger. Do
not allow long hair, loose
fitting clothing, or jewelry
to be around moving
parts.
Drive unit and auger exploded
views and part lists are
detailed on separate pages in
this manual.

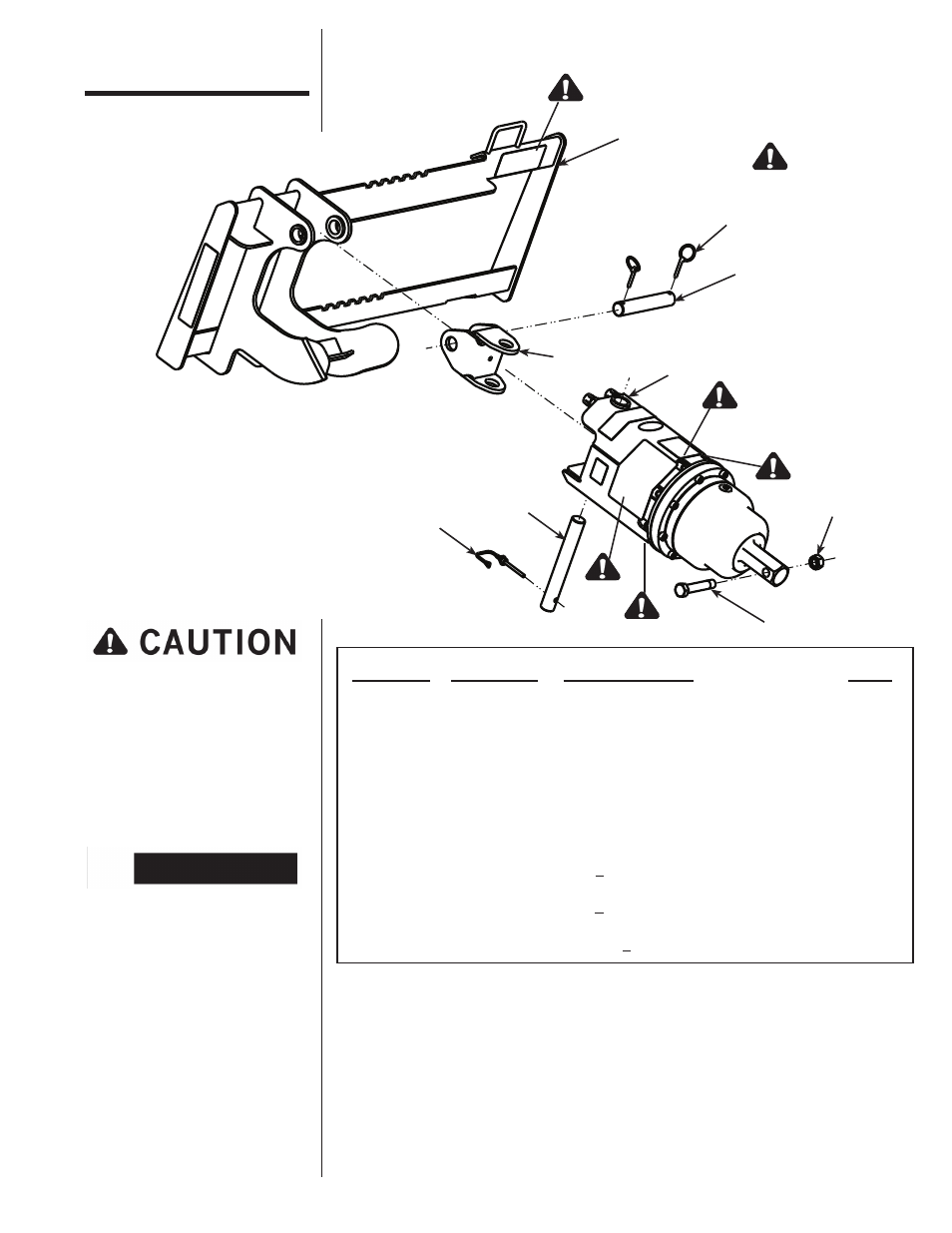

After removing bucket or other attachment from vehicle, secure quick attach plate
assembly (1) to vehicle per vehicle manufacturer’s recommendations.
Attach knuckle assembly (2) to the drive unit (3) using pin (4). Secure pin (4) with
lock pin (5).
Attach knuckle assembly/drive unit to the quick attach plate assembly (1) using
pin (6). Secure pin (6) with klik pins (7).
Proceed to step 5 on page 14.
STEP 1:
STEP 2:
STEP 3:
1
2
3
5
6
7
8
9
= Safety Sign
Location
REF. NO. PART NO. DESCRIPTION QTY.
1 20652 Offset Quick Attach Plate Assembly 1
(includes REF. NOS. 1-2 and 6-7)
2 10198 Knuckle Assembly 1
3 ----- Drive Unit 1
4 10193 Pin (1-1/4” x 9-1/2”) 1
5 20012 Lock Pin 1
6 9598 Pin (1-1/4” x 7-1/8”) 1
7 1600 Klik Pin 2
8 10038 Special Retaining Bolt - 2" Hex 1
(3/4” 10 x 4”, Gr. 8, 3/4” of thread)
10039 Special Retaining Bolt - 2-9/16" Rd.
(7/8" 9 x 4-1/4", Gr. 8, 3/4" of thread)
9 10041 Nut (3/4”–10) - 2" Hex 1
10042 Nut (7/8" 9) - 2-9/16" Round
4
