Mounting Instructions
!WARNING: Read and understand all procedure
and safety instructions before using the Condux
Fiber Optic Cable Puller and Pole Mounting Frame.
Failure to do so may result in serious personal
injury, property damage, or death. Save this user’s
guide for future reference.
!ADVERTENCIA: Favor de leer y comprender
todas las instrucciones de operación y seguridad
antes de usar el Condux Fiber Optic Puller Pole
Mounting Frame. Si Ud. no comprende las
instrucciones favor de consultarle a su jefe.
ADVERTENCIA
Instrucciones de Operación
NOTE: Use the Fiber Optic Puller Pole Mounting Frame only on steel
or wood poles. Do not use on aluminum or fiberglass poles. The
center holding spike is for wood poles only; remove it with an
adjustable or
9 ⁄
16
" wrench, before mounting on a steel pole.
1. Ensure the conduit or pole can withstand the maximum rated load
of the Pole Mounting Frame (1000 lbs.).
2. Place the Pole Mounting Frame on the pole. The long, flat support
bar should be on the bottom side.
3. Wrap the web strap around the pole, and insert the end hook into
the retaining slot on the frame.
4. Tighten the web strap, using its ratcheting mechanism, as far as
possible.
5. Secure the Pole Mounting Frame by wrapping the attached chains
around the pole.
6. Place the Fiber Optic Puller on the Pole Mounting Frame, and insert
the holding pin.
7. Slowly begin pulling with the Fiber Optic Puller. If the frame moves,
stop the pull, release the tension, and remount the frame.
Removal Procedure
1. Removal is the opposite of the mounting procedure.
Part Number Description
08676012 Center Holding Strap
02273200 Web Strap
Replacement Parts
Inspect the web strap before each use. Do not use
a damaged web strap. Severe personal injury or property damage
could result.
Do not exceed the 1,000 lb. load rating. Severe
personal injury or property damage could result.
If the frame moves, stop the pull, release the
tension, and remount the frame. Failure to do so could result in
personal injury or property damage.
Secure the frame with the attached chains. Failure
to do so could result in personal injury or property damage.

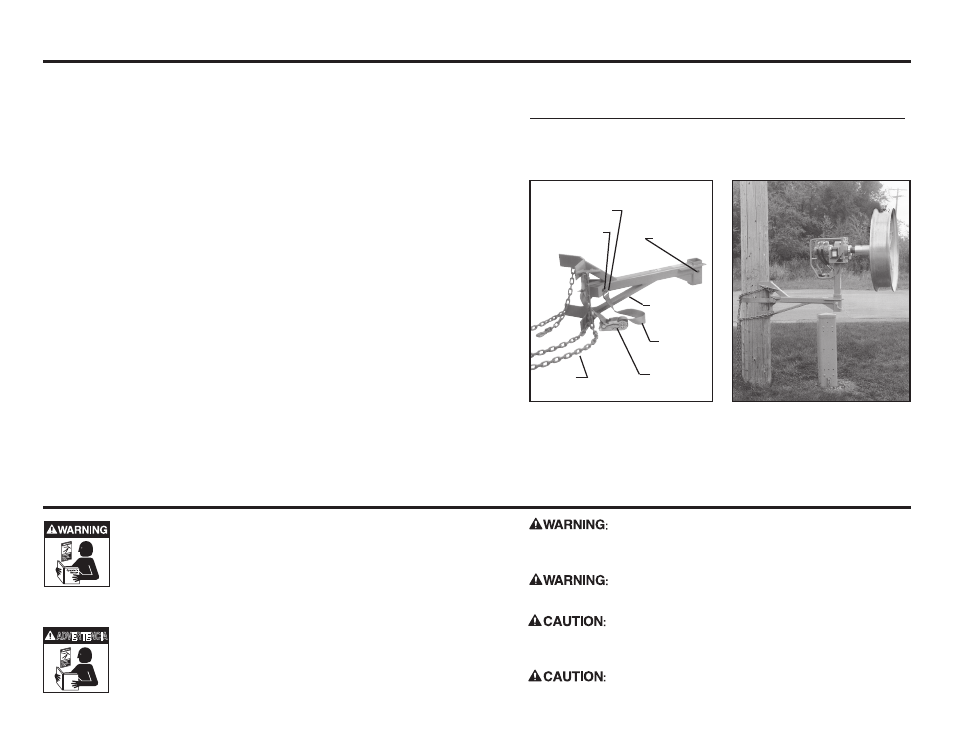

Fig 2. Pole Mounting Frame
on Wood Pole
Fig 1. Pole Mounting Frame
Support Bar
Web Strap
Ratcheting
Mechanism
Chains
Holding Pin
Retaining Slot
End Hook
