Condux Multiple Pulling Harness - Manual (Page 2)

1. Use the correct size pulling harness for the job (Table 1).
2. Connect a Condux 808 or 821 Champion Swivel to the pulling
harness’ large front link.
3. Connect the pulling harness’ staggered legs to the proper style
pulling eyes, depending upon the pull.
NOTE: Various methods are available to connect the Multiple Pulling
Harness to the pulling eyes. If the pulling eye doesn't have a clevis
head, use either Condux Swing Links or Swivel Connectors. Consult
your Condux catalog, or see your Condux representative for more
information. Other harness combinations available upon request.
Installation Procedure
!WARNING: Read and understand all procedure
and safety instructions before using any Condux®
Multiple Pulling Harness. Failure to do so may
result in personal injury or property damage. Save
this user’s guide for future reference.
!WARNING: Do not use the Multiple Pulling
Harnesses for overhead lifting or any other
purpose. They are for cable and innerduct pulling
only. Severe personal injury or property damage
could result.
!CAUTION: Wear personal protective equipment:
hard hat, safety glasses, safety shoes, and leather
work gloves. Failure to do this could result in
personal injury.
!WARNING: Do not stand directly behind the pull
string. If any component breaks, severe personal
injury or property damage could result.
!WARNING: Do not exceed the load capacity of the
Multiple Pulling Harness or any element in the pull
string. Severe personal injury or property damage
could result.
!ADVERTENCIA: Favor de leer y comprender todas
las instrucciones de operación y seguridad antes
de usar el Condux® Multiple Pulling Harness. Si
Ud. no comprende las instrucciones favor de
consultarle a su jefe.
ADVERTENCIA
Instrucciones de Operación
Table 1. Multiple Pulling Harness

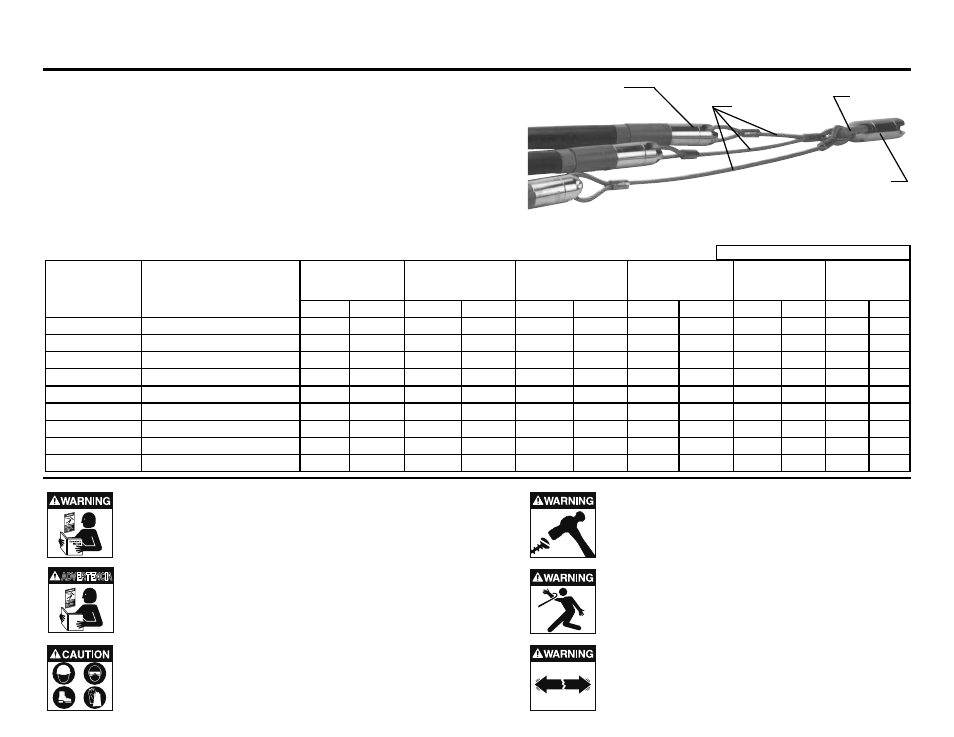

Figure 1. Multiple Pulling Harness Connection
Pulling Eyes
Staggered Legs
Front Link
808 or 821
Champion Swivel
Part Number Description
Working Load
Per Leg
Working Load
Combined
Max.
Width
Separation
Between
Legs
Lead Ring
Dia.
A
Leg
Dia.
B
(lbs) (N) (lbs) (N) (in) (mm) (in) (mm) (in) (mm) (in) (mm)
08549200 3 Way 1 ⁄
8
" (3 mm) Cable 550 2,446 1,600 7,117 2.25 57 14 356 .37 10 .12 3
08549230 3 Way 1 ⁄
4
" (6 mm) Cable 1,400 6,227 2,900 12,899 3.00 76 14 356 .37 10 .25 6
08549325 4 Way 1 ⁄
4
" (6 mm) Cable 1,400 6,227 4,200 18,682 3.75 95 14 356 .37 10 .25 6
08569910 5 Way 1 ⁄
4
" (6 mm) Cable 1,400 6,227 4,200 18,682 3.75 95 14 356 .37 10 .25 6
08549333 3 Way 3 ⁄
8
" (10 mm) Cable 4,800 21,350 9,000 40,032 2.63 67 10 254 .62 16 .37 10
08549329 4 Way 3 ⁄
8
" (10 mm) Cable 4,800 21,350 9,000 40,032 2.63 67 10 254 .62 16 .37 10
08549331 2 Way 1 ⁄
2
" (13 mm) Cable 7,000 31,136 10,000 44,480 2.50 64 12 305 .50 13 .50 13
08549332 3 Way 1 ⁄
2
" (13 mm) Cable 7,000 31,136 15,000 66,720 3.75 95 12 305 .87 22 .50 13
08549340 4 Way 1 ⁄
2
" (13 mm) Cable 7,000 31,136 15,000 66,720 3.75 95 12 305 .87 22 .50 13
