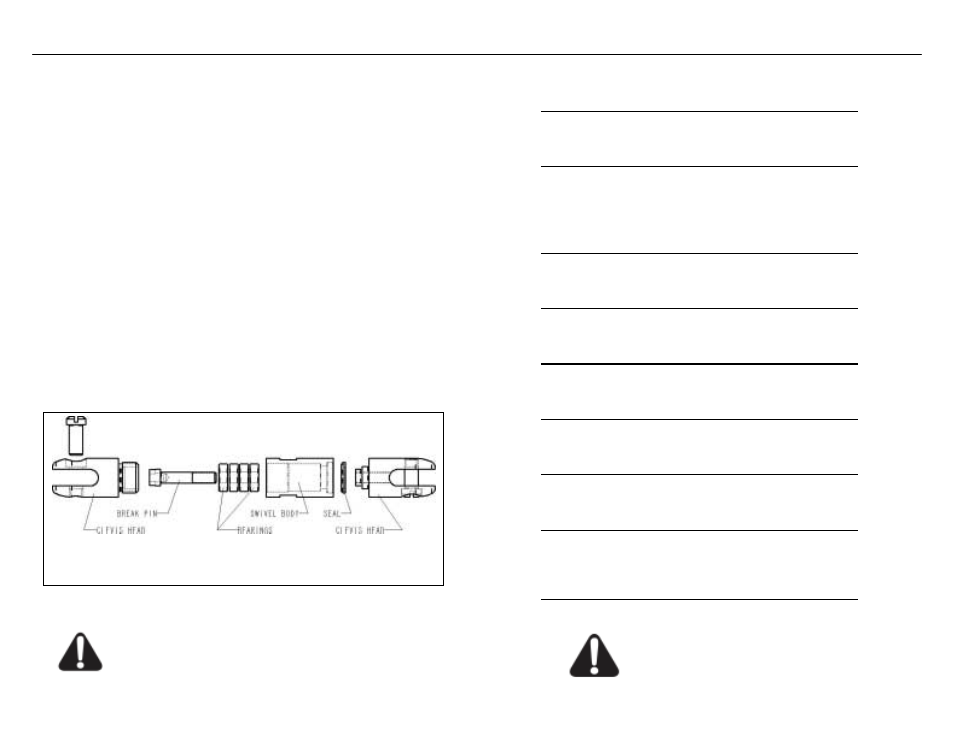

1. Remove the broken pin’s shaft from the clevis head with pliers. If
necessary, apply heat to loosen the old threadlocker.
2. Unscrew the attached clevis head from the swivel body and remove the
broken pin’s head and the bearings
3. Clean the bearings and replace any that are defective. Slide the bearings
onto the replacement pin’s shaft (see Table 1 or Table 2 for correct
replacement pin) Do not force the bearings –it could damage the pin.
4. Ensure all threads are clean and dry. Apply a small amount of LOCTITE®
222™ to the threads of both clevis heads.
5. Insert the pin and bearings into the swivel body. Screw the pin into the
clevis head and tighten until snug. Do not over tighten
6. Screw the other clevis head into the swivel body and tighten firmly.
7. Test the swivel operation. The swivel head must turn freely for proper use.
*Note: The LOCTITE® 222™ cures to a solid state within 20 minutes but
takes 24 hours to fully cure. LOCITITE® is a trademark of Henkel
Corporation.
Table 1. Replacement Pins for 5/8" Swivel
Part Number Break Load (lbs.) Color Code
08017305 200 Green/Black
08017405 250 Blue/White
08017805 300 Blue/Violet
08016905 450 Blue/Yellow
08017205 600 Orange/Black
08017505 650 Brown/White
08017905 750 Orange/Violet
Table 2. Replacement Pins for 7/8" Swivel
Part Number Break Load (lbs.) Color Code
08018105 150 Slate/Violet
08018305 200 Green/Orange
08018005 250 Blue/White
08017605 300 Brown/Red
08018405 350 Black/Green
08075305 400 Blue/Black
08015805 450 Blue/Yellow
08076505 500 Orange/Red
08018505 550 Blue/Green
08015005 600 Orange/Black
08018605 650 Slate/Green
08076005 700 Orange/White
08075505 750 Orange/Violet
08018705 800 Red/Yellow
08018805 850 Black/Yellow
08076605 900 Orange/Yellow
08015705 1000 Green/White
08018905 1100 White/Yellow
08015205 1200 Brown/White
08019105 1300 Brown/Yellow
08074605 1400 Green/Red
08076905 1500 Green/Yellow
08019205 1600 Black/White
08019305 1700 Red/White
08017705 1800 Brown/Black
Replacement Procedure
!WARNING: Read and understand all procedure and
safety instructions before replacing any Condux Swivel
Break Pin. Failure to do so may result in personal injury
or property damage. Save this user’s guide for future
reference. !ADVERTENCIA: Favor de leer y
comprender todas las instrucciones de
operacion y segundad antes de usar el Condux
Swivel Break Pin. Si Ud. No comprende las
instrucciones favor de consultarie a su jete.
