Inspection Procedure
Inspecting the swivel before and after each use ensures proper operation
throughout the job.
1. Rotate the swivel to test for proper operation.
2. Wiggle the swivel’s end to ensure there is no lateral play.
3. Make sure clevis pins are not damaged and are the correct size and
grade for the swivel.
4. If necessary, lubricate the swivel (see Lubrication Procedure).
Lubrication Procedure
NOTE: Always use special Condux D.Drill grease (Condux part # 08190007).
It is specially formulated with a calcium-complex soap for exclusive use in
bentonite environments. Use of any lithium-based grease voids the warranty.
1. Locate and clean the grease-zerk fitting (Figure 1).
2. Inject grease through the zerk fitting until the old grease flushes past
the seals on the swivel’s other end.
3. Lubricate after every job. This extends the life of the swivel and
prevents swivel lockup.
Installation Procedure
NOTE: The D.Drill Swivel has (4) angular contact bearings: (3) for
tension loads and (1) for compression loads. The direction of installation
is not critical, but we recommend pointing the grease zerk end towards
the reamer. This helps prevent dirt from getting past the seals.
1. Ensure the swivel is the correct size for the job (see Table 1), and
test the swivel operation.
2. Connect the swivel between the pulling eye and the earth packer
or reamer.
3. Tighten the clevis pin(s) securely.
Removal is the opposite of the installation procedure.
Replacement Parts and Supplies
Condux offers replacement clevis pins and directional drilling grease.
Consult your Condux catalog, or see your Condux representative for
more information.
!WARNING: Read and understand all procedure and
safety instructions before using any Condux D.Drill Swivels.
Failure to do so may result in personal injury or property
damage. Save this user’s guide for future reference.
!ADVERTENCIA: Lea y entienda todo el procedimiento
e instrucciones de seguridad antes de usar cualesquiera
eslabones giratorios de Condux D.Drill. La falta de hacer tan
puede dar lugar a daños corporales o a daños materiales.
Excepto esta guía de usuario para la referencia futura.
!CAUTION: Wear personal protective equipment: Hard
Hat, Safety Glasses, Safety Shoes and Leather Gloves.
Failure to do this could result in personal injury.
!WARNING: Do not exceed the load capacity of the D.Drill
Swivel or any element in the pull string. Do not stand
directly behind the pull string. If any component breaks,
severe personal injury or property damage could result.
!CAUTION: The D.Drill Swivel will fail if not properly lubricated.
Personal injury or property damage could result.
Working Load (LBS)
Part Number Tension Compression
08190408 1,800 595
08190412 4,000 1,300
08190416 8,500 2,800
08190420 10,000 3,300
08190425 20,000 6,600
08190430 30,000 10,000
Table 1 - 400 D.Drill Swivel Load Ratings

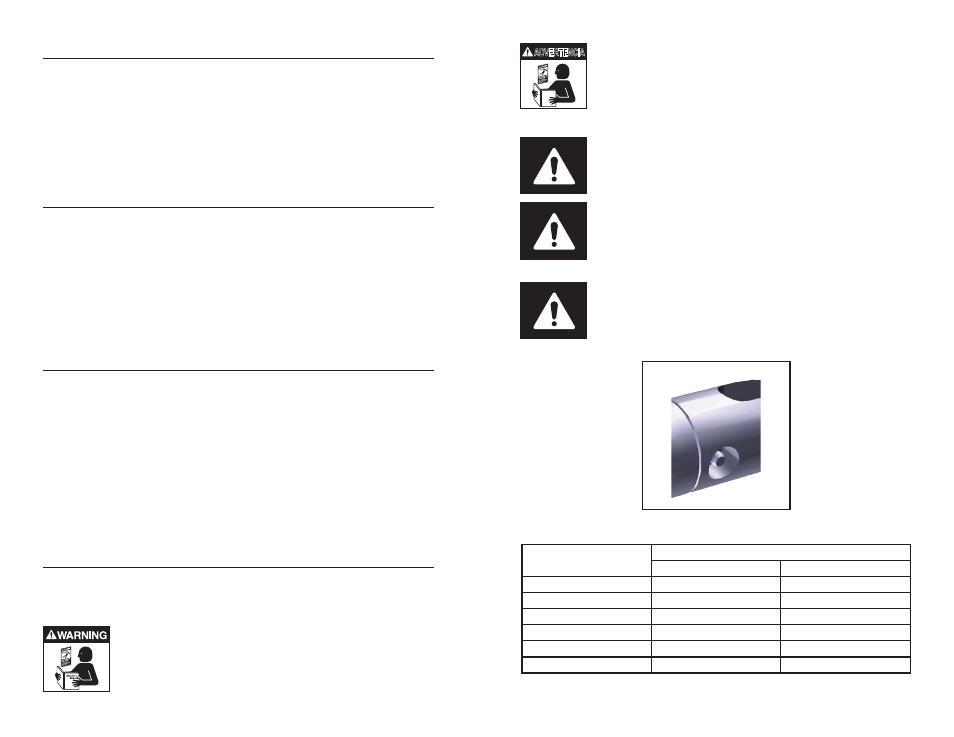

Figure 1 - 400 D.Drill Grease Zerk
ADVERTENCIA
Instrucciones de Operación
