Condux Power Dart Blower - Manual (Page 3)

Troubleshooting Guide
Problem Possible Causes
Carrier does not exit at destination • Duct is obstructed
• Duct is not airtight
• Duct length is too long
• Carrier is worn or the wrong size
• Too much tension on blowline
• Too many bends in the conduit
Blowline builds up in duct • Drag plate is not properly set
• Carrier is worn or the wrong size
Unit does not turn on • Blown utility fuse—not rated for 12 amperes
• Blown fuse in Power Dart Blower
• Bad electrical connection
Replacement Parts List
Part Description Part Number
Outlet Fitting 08039302
Plastic Handle 08066700
Power Switch 02289289
7' Power Cord (10 Ga., 3 Con.) (for 120 VAC unit) 00181700
Plug, (125V, 30 Amp Twist) (for 120 VAC unit) 08930103
Fuse, (250V, 15 Amp Type Fast Acting) (for 120 VAC unit) 02259600
7' Power Cord (2.5 mm, 3 Con.) (for 220-240 VAC unit) 00181800
Plug, Elect. (250V, 16 Amp European) (for 220-240 VAC unit) 02279300
Fuse, (250V, 6.3 Amp Type Fast Acting) (for 220-240 VAC unit) 02289292
Label Kit 08065226
NOTE: Each motor has a protective fuse. They are
conveniently located on the front panel’s lower right corner.
1. Use a straight-slot screwdriver to rotate the fuse holder
1 ⁄
4
turn counterclockwise.
2. Pull the fuse holder out and remove the fuse.
3. Insert a new fuse into the holder.
4. Push the fuse holder into its receptacle and rotate it 1 ⁄
4
turn clockwise.
Fuse Replacement Procedure

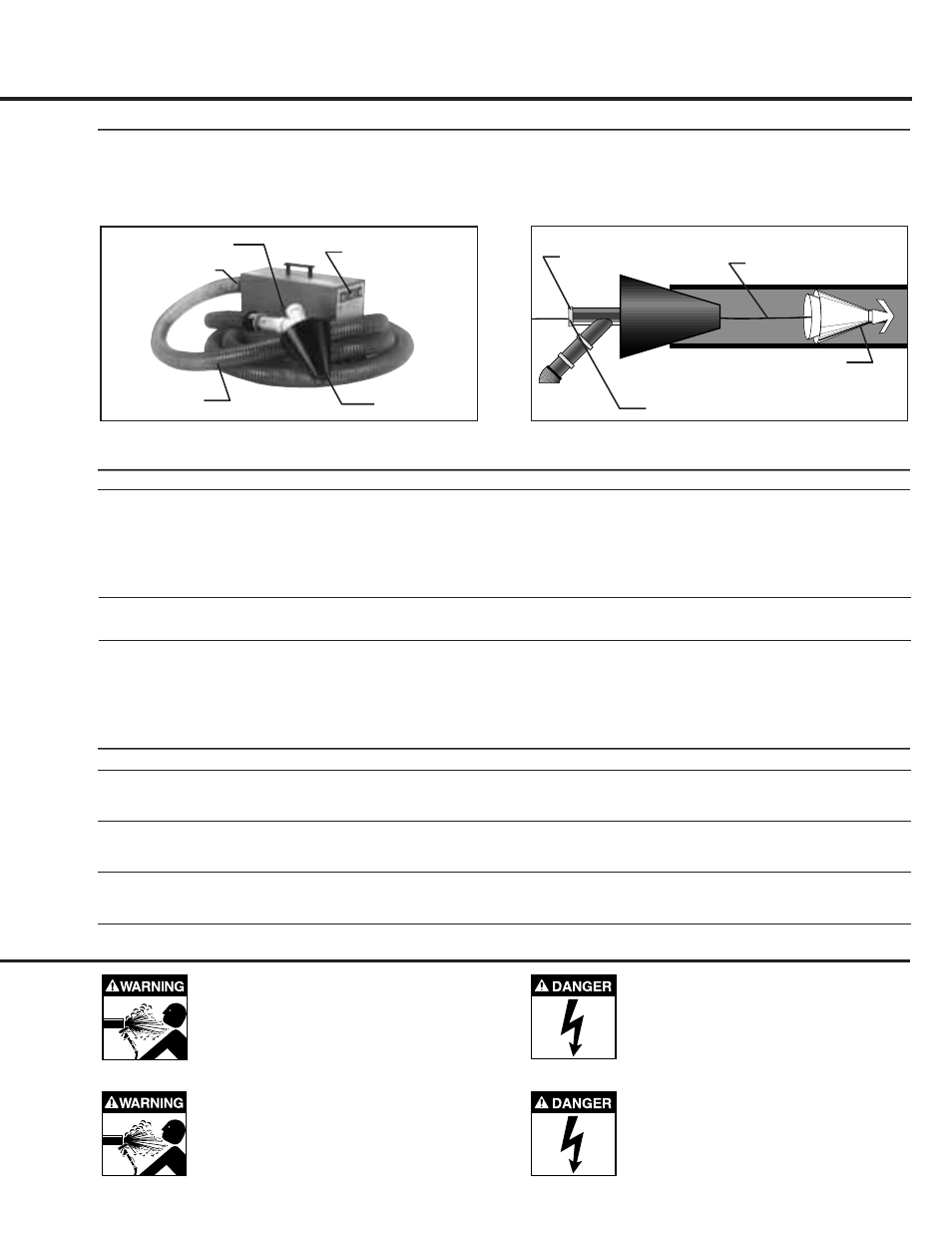

Air Hose
Seal-Off
Rear Air Outlet
Air Inlet
Power Switches
!WARNING: Forced air creates flying
debris. Always wear personal protective
equipment. Severe personal injury could
result. !DANGER: Do not remove or modify
the 30 AMP-115 VAC twist plug, or the
16 AMP-230 VAC European plug. Severe
personal injury, death, or property
damage could result.
!DANGER: The Power Dart ® Blower is an
electrical device. Use proper precautions
during its setup and operation. Failure to
do so could result in severe personal
injury or death.
!WARNING: Ensure no personnel are in
the destination access vault during the
blowing operation. Severe personal
injury could result.
Blowline
Line Carrier
Access Hole
Drag Plate
