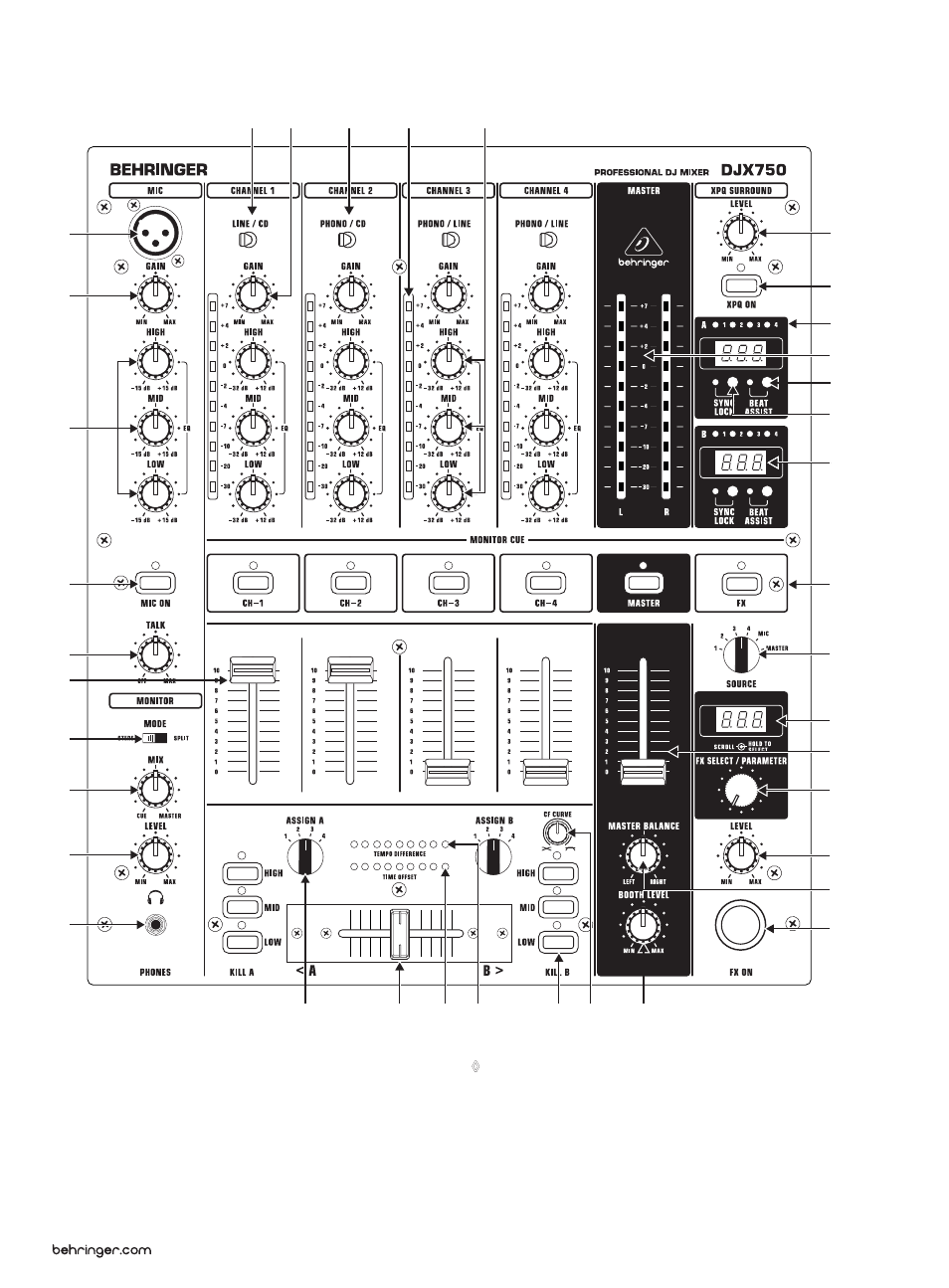

Control elements 1.
(1) (3) (2) (5) (4)
(27)
(28)
(29)
(17)
(32)
(31)
(30)
(16)
(33)
(34)
(18)
(35)
(36)
(19)
(37)
(20) (26) (25) (24) (23) (22) (21)
(15)
(14)
(13)
(12)
(6)
(11)
(10)
(9)
(8)
(7)
Stereo channels 1 to 4 1.1
Use the LINE/CD switch to select the input signal for channel 1. (1)
Unlike other channels, channel 1 features two line inputs.
You determine the input signals for the channels 2 to 4 with the
(2)
PHONO/CD i.e. PHONO/LINE switch (channels 3 and 4). “Phono” is intended
for connecting a turntable. “Line” i. e. “CD” must be selected for all other
signal sources (e. g. CD or MD players). The input sensitivity of the phono
input can be switched to line level, allowing utmost flexibility (see (41).)
Never connect devices with line level to the highly sensitive phono ◊
inputs! The output level of phono pick-up systems is measured in
millivolts, whereas CD players and tape decks have levels measured
in volts, i.e. the level from line signals is up to 100 times higher than
that of the phono inputs.
The GAIN control in the CHANNEL section is used to adjust the level
(3)
of the input signal. The level meter (5) reads the input level.
