A 10 | Gasoline injection systems
1
2
4
5
6
7
8
9
10
3

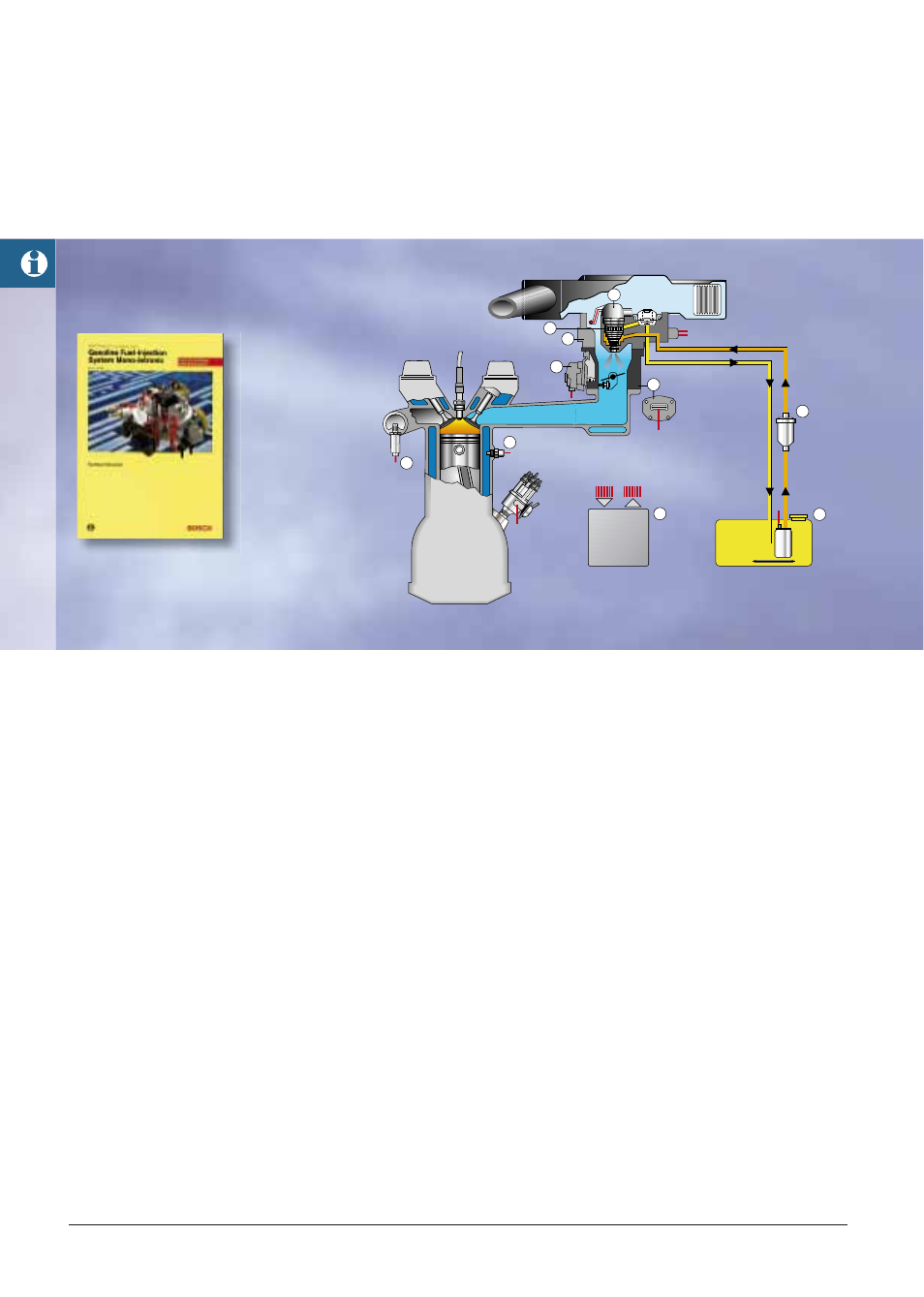

Mono-Jetronic
Further technical information can be found
in the “Mono-Jetronic” booklet.
Part number 1 987 722 105.
The booklets are available from franchized
Bosch wholesalers. The Mono-Jetronic is an electronically
controlled single-point injection system in
which a solenoid injector injects the fuel
for all cylinders at a central location above
the throttle valve. The operating data are
recorded by way of sensors and converted
into injection pulses in an electronic control
unit. Electric fuel pump
Fuel filter
Throttle-valve potentiometer
Pressure regulator
Injector
Connector with intake-air temperature
sensor
Throttle-valve actuator
Engine-temperature sensor
Lambda Sensor
N Electronic control unit
