Clarus Environmental Centrifugal Effluent Pumps (N51,N142) - Manual (Page 4)

All Clarus Environmental products must be installed and maintained in accordance with all applicable codes.
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.
All installations must comply with all applicable
electrical and plumbing codes, including, but not
limited to, National Electrical Code, local, regional,
and/or state plumbing codes, etc. Not intended for
use in hazardous locations.
SK291
EFFLUENT
FILTER
CHECK VALVE
INLET HEIGHT ADJUSTABLE BY
SHIMMING MOUNTING PIPES
7"
3" MIN.
5' 0" MIN.
8' 0" MIN.
STANDARD 4" INLET
18"
TEE OR BAFFLE
SLUDGE LAYER
CLEAR EFFLUENT
25"
3"
CLARUS PREWIRED
CONDUIT
RISERS FOR DRAINAGE
SLOPE GROUND AWAY FROM
4" MIN.
14" MAX.
SCUM LAYER 3"
CLARUS 12 INCH ACCESS RISERS & LID
PUMP OFF
3 1/2" OF TETHER
LENGTH FROM STRAP
15 3/8"
BOTTOM OF PUMP
INLET
LEVEL
BALL VALVE AND PIPE SEAL)
(INCLUDES FLEXIBLE PVC PIPE, SINGLE UNION
FROM PUMP TO 1 1/4" SNUB OUTSIDE RISER
CLARUS 1 1/4" DISCHARGE PIPE ASSEMBLY
FILTERED
EFFLUENT
PUMP ON
ALARM
24 3/8"
42 5/8"
(OPTIONAL) J-BOX
18" MIN. OR
PER STATE AND
LOCAL CODES
(MOUNTED ON HOUSE)
INDOOR/OUTDOOR ALARM
24 OR 30 INCH
ACCESS RISER & LID
SECURE EXCESS CORDAGE
FLOAT SWITCH DETAIL
ALL WORK IN ACCORDANCE
WITH NEC AND ANY OTHER
STATE OR LOCAL CODES

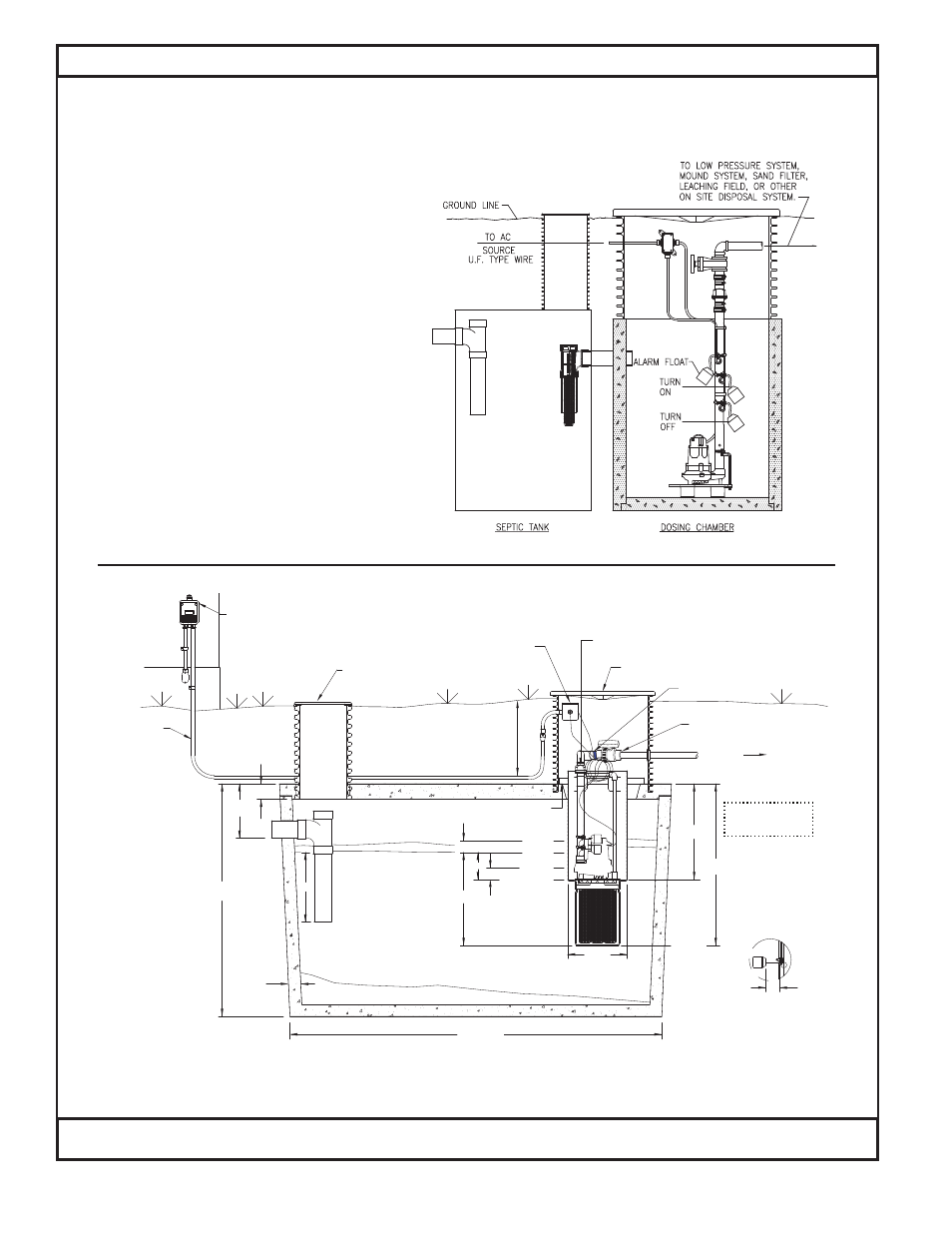

TYPICAL INSTALLATION
