2
SENSOR HEAD INSTALLATION

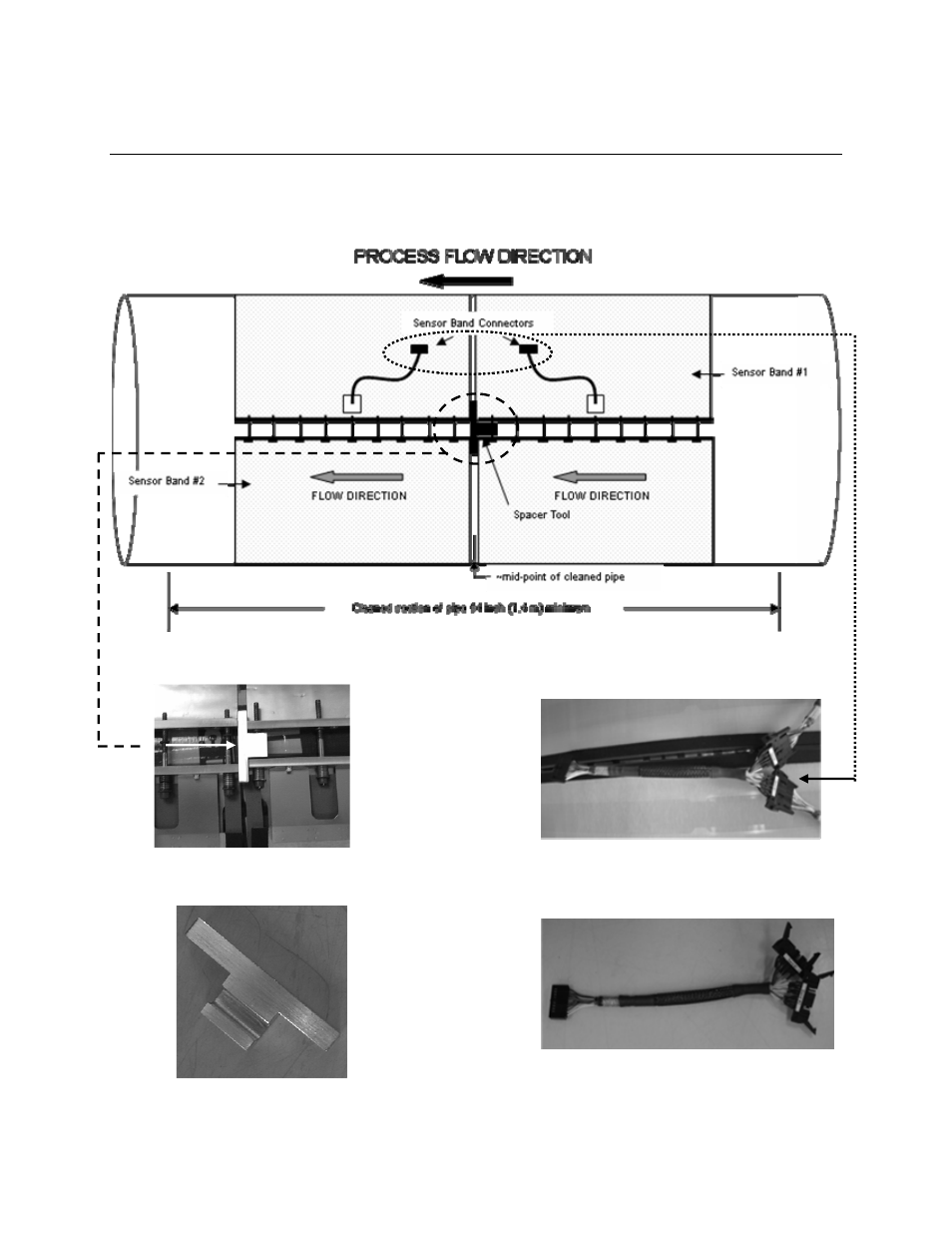

The following figures illustrate the 40-inch and larger sensor band installation.
Figure 1 Sensor Band Installation
Figure 2 Sensor Band Spacer Tool
Installed on Bands
Figure 3 Sensor Band Spacer Tool
Figure 4 “Y” Connector Plugged into
Sensor Band connectors (P2 Upstream band,
P3 Down stream band, P1 to Pre-Amp)
Figure 5 “Y” Connector Plug Assembly
Close-up
P/N 21080-01 Rev 02 Page 2-1
