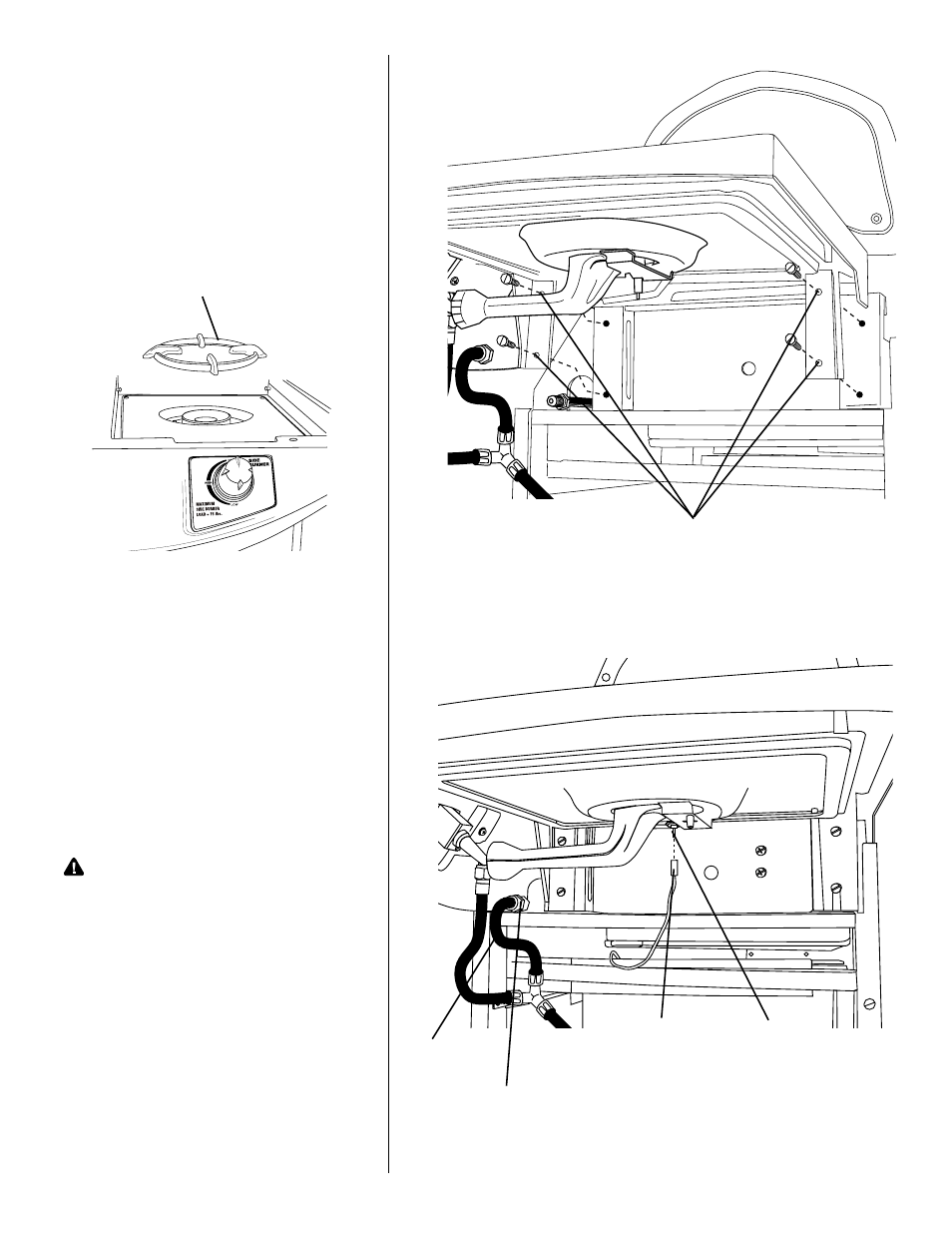

Step 10
Attach side burner assembly to grill
body assembly by inserting four
M6 X 20mm bolts through the
holes in the side burner assembly
and into holes of grill body
assembly. Tighten all four bolts.
Install side burner grate and control
knob.
Step 11
Remove the plastic cap on gas
supply manifold and attach rubber
gas hose to gas supply manifold.
Hand tighten first, then use
supplied wrench to turn brass nut
an additional 1/8 turn.
Important: Do not overtighten.
This could damage
brass fitting.
Warning: Never use your grill
without leak testing all
gas connections and
hoses. See the section
on “Leak Testing” in this
manual for proper
procedures. (See page 7)
Step 12
Attach side burner igniter lead to
the electrode as illustrated.
Screw Holes
Side burner grate
Rubber
Gas Hose
Side Burner
Igniter Lead Electrode
Brass Nut
