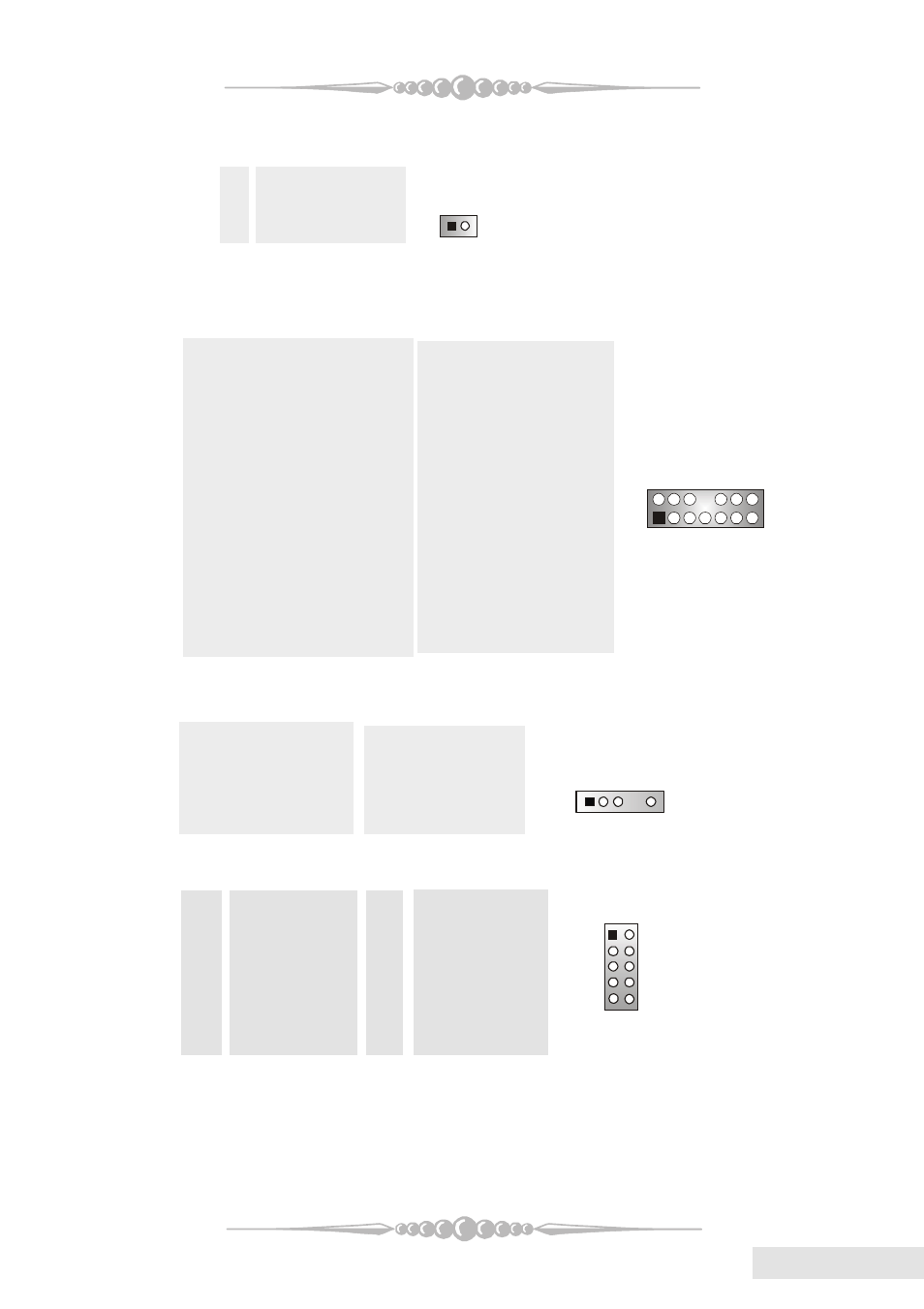

(18) Front Panel Audio Header: JAUDIO1
The connector allows you to connect to the front panel audio.
Pin Assignment Pin Assignment
1 Mic In/Center 2 Ground
3 Mic Power/Bass 4 Audio Power
5 RT Line Out/Speaker 6 RT Line Out/
Out Right Speaker Out Right
7 Reserved 8 Key
9 LFT Line Out/Speaker 10 LFT Line Out/
Out Left Speaker Out Left
11 RT Line In/Rear 12 RT Line In/Rear
Speaker Right Speaker Right
13 LFT Line In/Rear 14 LFT Line In/
Speaker Left Rear Speaker Left
(19) AUDIO DJ Connector: JDJ1 (optional)
Pin Assignment Pin Assignment
1 SMBDATA 2 SMBCLK
3 INT_B 4 KEY
5 ATX_PWROK
(20) COM2 Header: JCOM2-HEADER (optional)
JCI1
1
(17) Case Open Connector: JCI1 (optional)
Pin Assignment
1
Case Open Signal
2 Ground
Pin Assignment Pin Assignment
1 RIN1 2 RIN3
3 DOUT2 4 DOUT3
5 Ground 6 RIN2
7 DOUT1 8 RIN4
9 -XRI1 10 NA
1 2
9 10
