Page 9

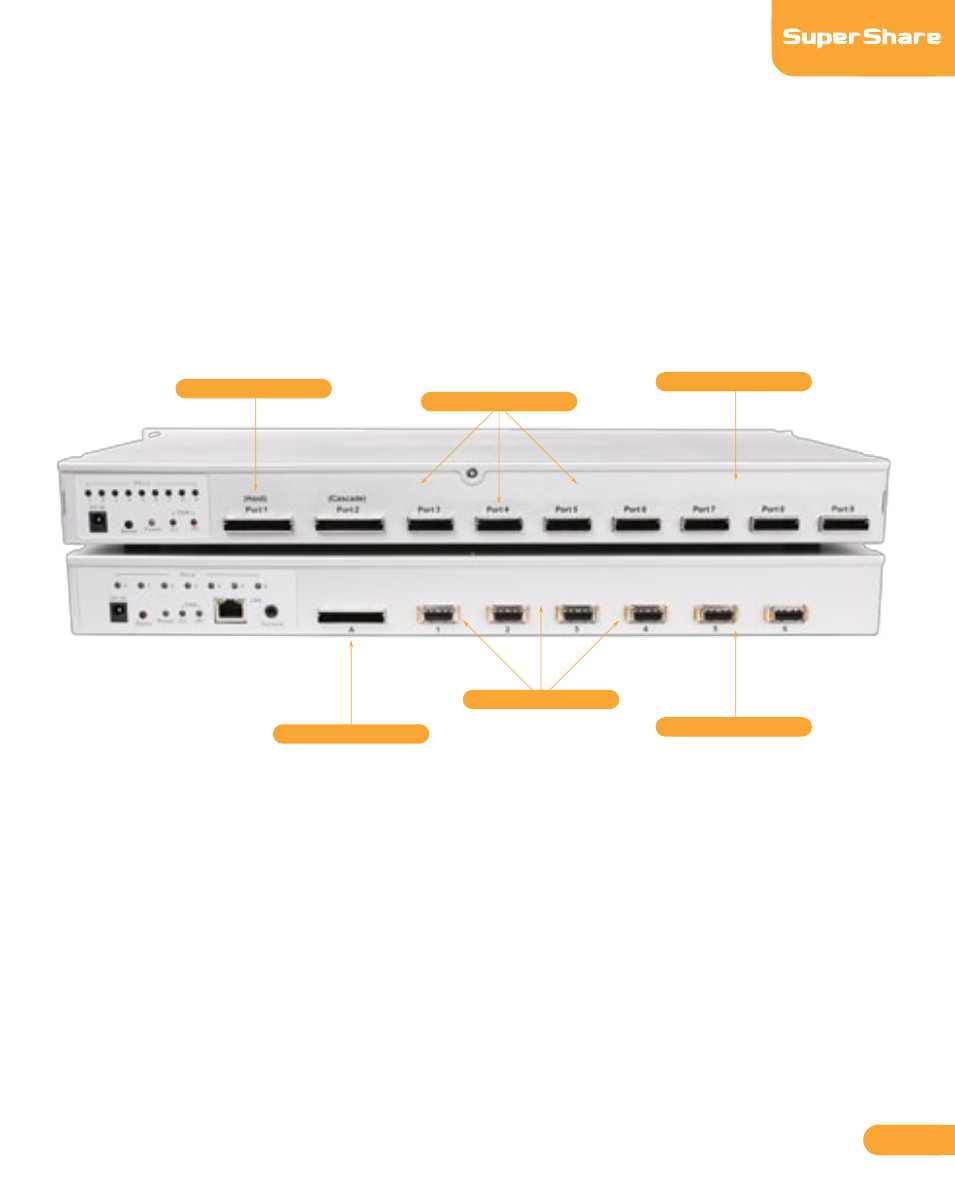

PCIe 8x Cable
SuperShare Hub
To Storage (PCIe)
Installing PCIe Cable
Attacah the PCIe (x8) cable to SuperShare Switch. (Port-A)
Attacah the other side of PCIe cable (x8) to SuperShare Hub. (Port-1)
Attach all the PCIe cables from the Storage, HDPro2 or HDPro-24, to SuperShare Hub.
(Port-3 to Port 9)
Installing RAIDShield and Driver to all workstations
Insert the provided CD into the computer DVD/CD drive or visit
www.caldigit.com/support.asp.
Go to "Mac Installer" Folder or "Windows Installer" Folder.
Launch SuperShare Installer.
When installation is complete, shutdown the computers.
PCIe 8x Cable
SuperShare Switch
1
2
3
1
2
3
4
To Workstations (optical)
09
