Blue Sea Systems 1331 AC Insulating Cover 1 Module - Manual (Page 2)

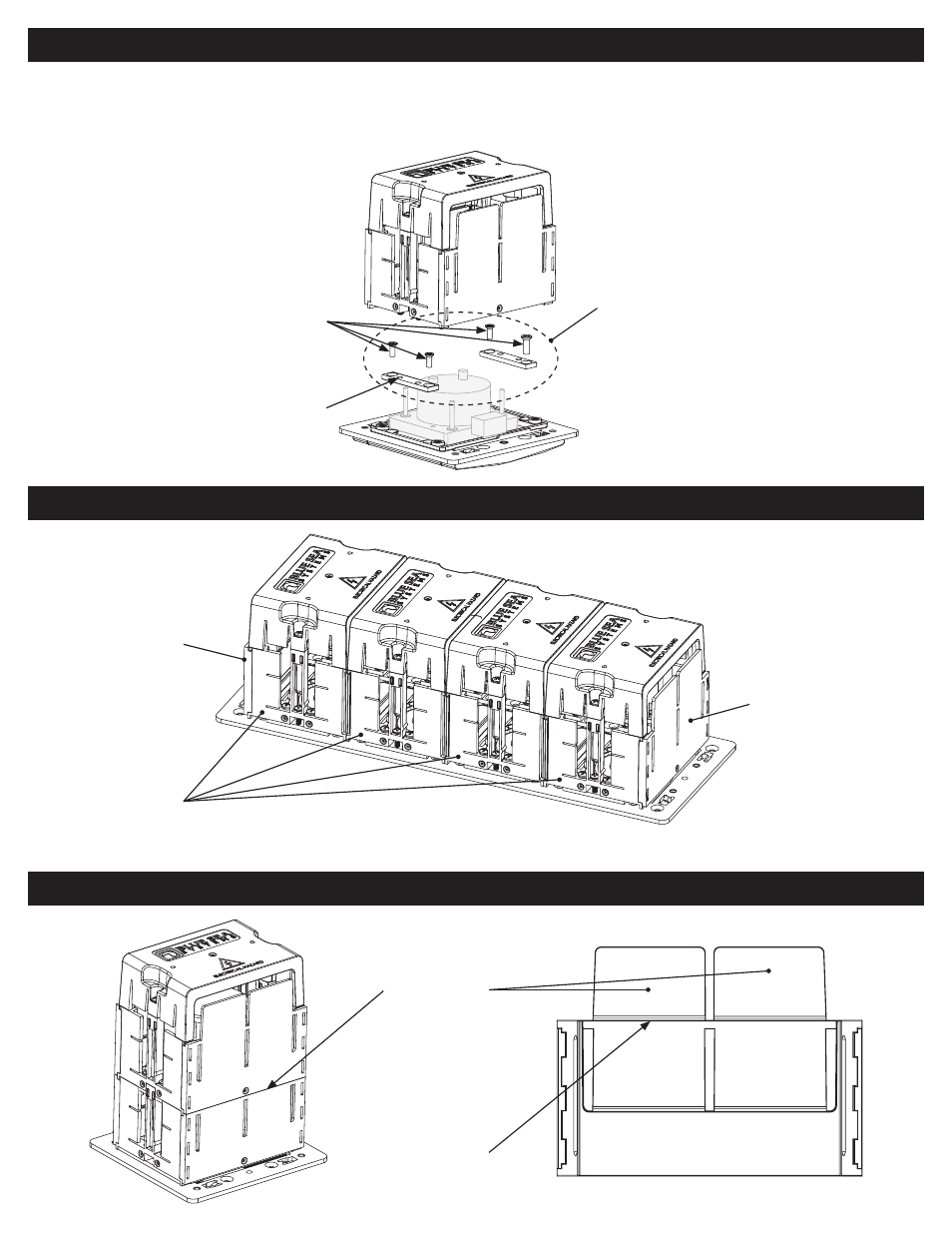

Stacking Insulating Rear Covers for Tall Components
Installing Insulating Rear Cover Over Meter, Systems Monitor 1800, and Some DC Modules
NOTE: When installing insulating cover over meter, Systems Monitor 1800, and some DC modules, an adapter kit (PN 4118) is required.
1. Remove 4 Phillips flat head bezel mounting screws from subframe.
2. Using longer screws provided in Adapter Kit, attach adapters to subframe. Screws pass through adapters and subframe, and thread into bezel mounting holes.
3. Mount insulating cover as described in steps 2 through 5 above.
Installing Column of Insulating Rear Covers
NOTE: When installing insulating covers in columns, use END piece only on both ends of column, not between individual covers.
Bezel mounting screws to be
replaced with longer screws
used to attach adapters.
Install adapters with threaded
mounting holes toward the
outside edges of module.
END
END
Modules
To stack, remove
breakouts from
END pieces on
base set.
Score here
before
breaking
Figure 3
Figure 4
Figure 6 Figure 5
Adapter Kit (PN 4118)
—Add adapters to install
Insulating Rear Cover over
meters, Systems Monitor
1800, and some DC modules.
