Peaker connections (bridged), Caution – Bazooka CSA50.4 User Manual
Page 12

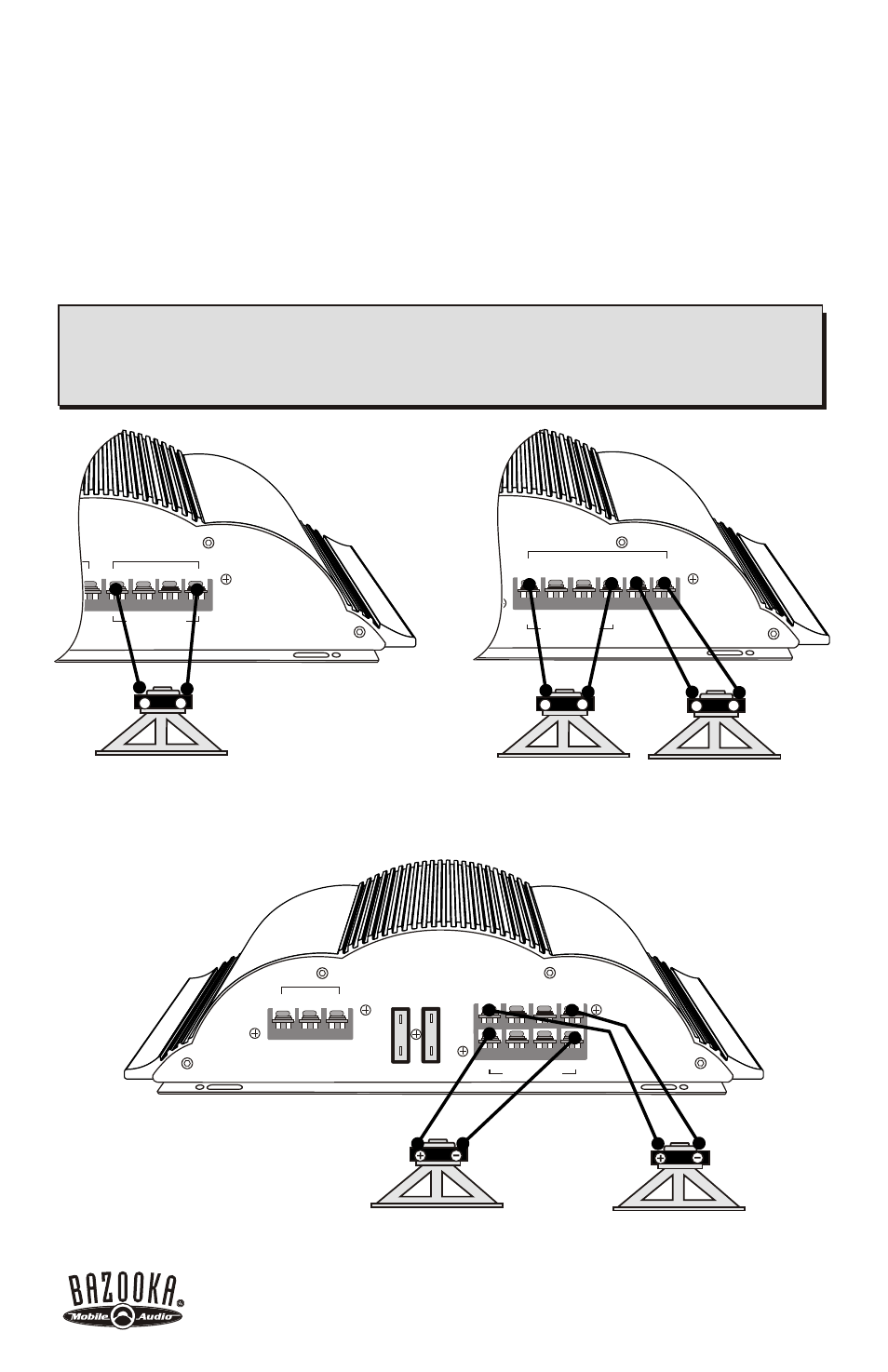

CSA50.2 BRIDGED
SPEAKER CONNECTIONS
CSA200.3 BRIDGED
SPEAKER CONNECTIONS
CSA50.4 BRIDGED SPEAKER CONNECTIONS
S
PEAKER CONNECTIONS (BRIDGED)
The EL amplifiers are capable of being bridged in a mono configuration. This
feature allows you the flexibility of using the amplifier to drive a ** subwoofer or a
center channel. In this configuration the amplifier sums the right and left channel
to deliver one channel (mono) output.
Please note: in order for the amplifier to sum right and left signal information, both
right and left RCA connections must be made.
11
FUSE
SPEAKER
POWER
GND
REM
+12V
+
+
+
+
-
-
-
-
CH3
CH4
BRIDGED
CH1
CH2
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
+
+
-
-
+
+
-
-
+
-
CH3
+
-
CH4
+
-
BRIDGED
FUSE
SPEAKER
POWER
GND
REM
+12V
+
+
-
-
CH1
CH2
4 Ohm Speakers
4 Ohm Speakers
SPEAKER
FUSE
+
-
BRIDGED
POWER
GND
REM
+12V
+
L
L
-
+
R
R
-
4 Ohm Speaker
4 Ohm Speaker
+
+
-
-
**CAUTION!
In the bridged mode, the amplifier must see a 4 Ohm load or higher.
Any lower than 4 Ohms will cause the amplifier to overheat and possibly cause
