Make the speaker connections using speaker wire that is at least 16 gauge or
heavier.
As with any audio component, proper phasing of the amplifier and speakers is
essential for strong bass response. When connecting, make sure that positive (+)
from the amplifier is connected to the positive (+) of the speaker, and the same for
negative (-).
S
PEAKER CONNECTIONS

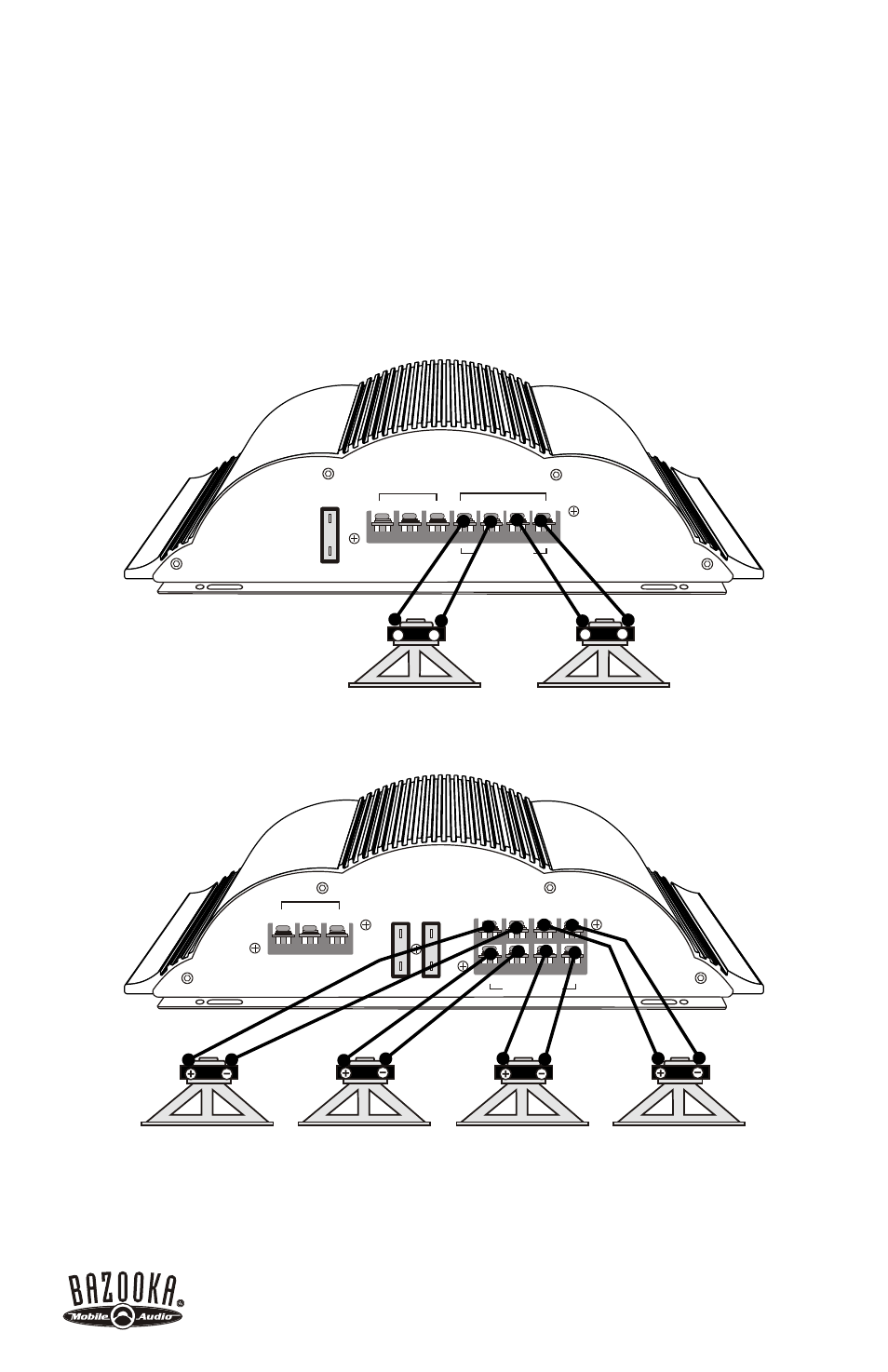

CSA50.4 SPEAKER CONNECTIONS
SPEAKER
FUSE
+
-
BRIDGED
POWER
GND
REM
+12V
+
L
L
-
+
R
R
-
+
-
CH3
+
-
CH4
+
-
BRIDGED
FUSE
SPEAKER
POWER
GND
REM
+12V
+
+
-
-
CH1
CH2
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
CSA50.2 SPEAKER CONNECTIONS
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
+
+
-
-
+
+
-
-
