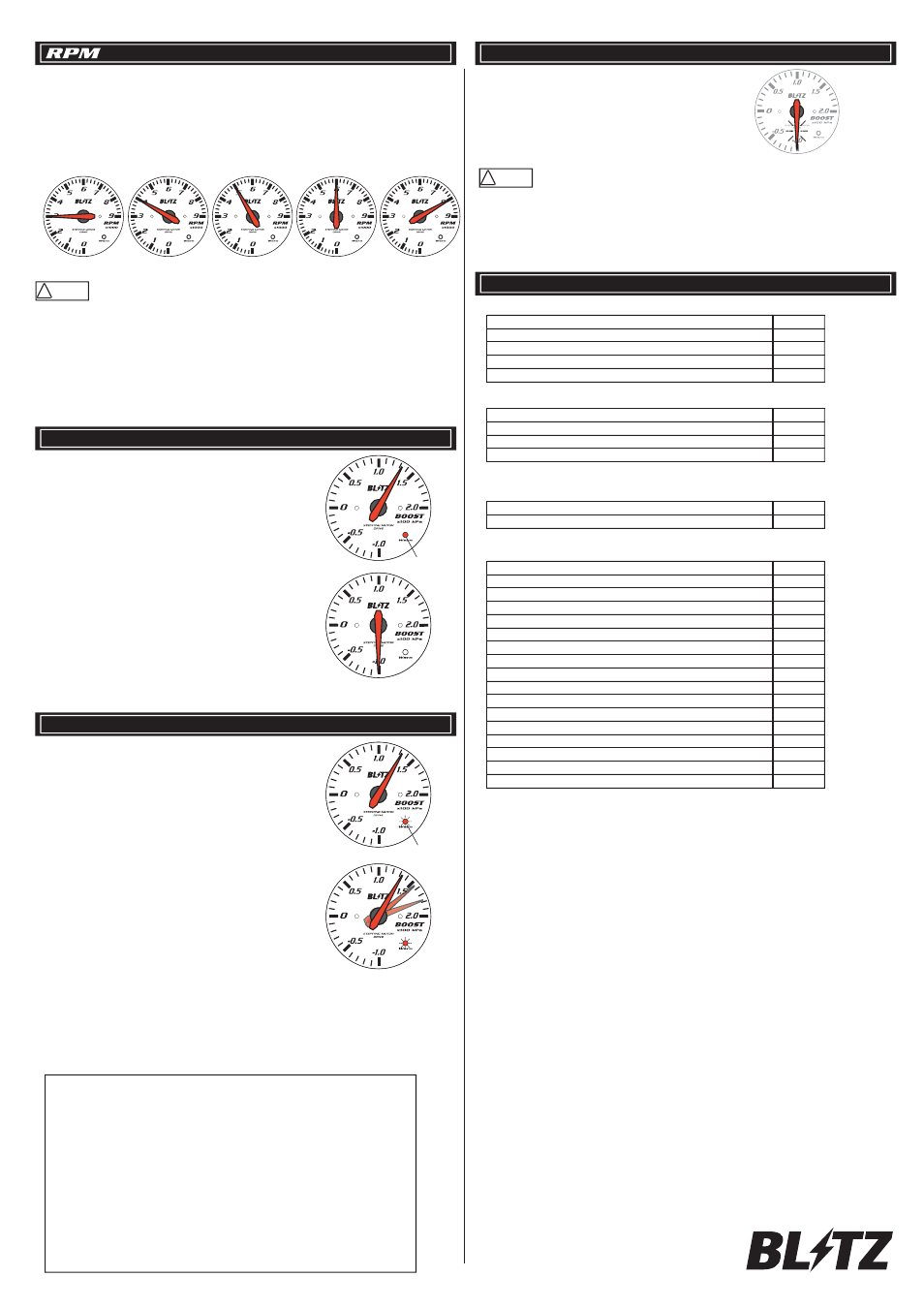

BLITZ SD Meters - Manual (Page 4)

Cylinders setup (Initial setup) Sensor short circuit /disconnect warning
After the power harness is connected, RPM (Tacho) meter enters setup mode.
(The needle points at 4,000 rpm, and indicator LED blinks) ①
After control switch is pressed shortly(<2 seconds), needle start to move
form ４，５，６，８，３，４....... repeatedly. ②
Hold down the switch (longer than 3 seconds) when the needle on desired cylinder number,
to decide the setting. after setting is complete, the needle returns to orginal position. (0 rpm)
Previous seting is cleared when the power to the meter is lost. ③
Caution ！
３ Cylinders ４ Cylinders ６ Cylinders ５ Cylinders ８ Cylinders
Peak display function
Pressing the control switch (Less than 2 seconds)
under normal mode will enable peak display mode.
(Indicator will flash while peak value is displayed.) ①
The meter will go back to normal mode after the switch is
pressed again (Less than 2 seconds) or
no action is taken more than 5 seconds. ②
□How to display peak value
Under peak display mode, press the control switch
longer than 3 seconds to clear the peak value. ①
After the peak value is displayed, needle will point zero,
and goes back to normal mode. ※
□How to reset the peak value
Warning function
Warning indicator flashes when the measured value exceed
the warning value. ※
□Warning indicator
Press the control switch more than 3 seconds
to enable the warining setting mode.
(Indicator will flash while warning value is displayed.) ①
Warning value can be changed by pressing the control
switch during the warning setting mode.
②
□How to change the warning value
Needle pointer moves clockwise when the control switch
is pressed. Needle pointer goes back to minimum value after
reaching the maximum value, and repeat the action. ※
Release the switch at desired value, and the meter will go back to normal mode
after 5 seconds without action. ③
□Warning initial value
BOOST ○ １．０×１００kPa (MAX)
VACUUM ○ ０．０kPa (MAX)
TEMP ○ １２０℃ (MAX)
PRESS ○ １．０×１００kPa (MIN)
EX.TEMP ○ ８００℃ (MAX)
RPM(TACHO) ○ ６０００ｒｐｍ (MAX)
VOLT ○ １０V (MIN)
MAX・・・Indicator flashes when the value goes over the set value
MIN・・・Indicator flashes when the value goes under the set value
When the short circuit or disconnected sensor
is suspected, back light is turned off
and the needle pointer flashes.
After the problem is solved,
the meter goes back to normal mode. □
Optional parts/Repair parts
This function does not work for the meter without sensors:
RPM (Tachometer) and VOLT meter. □
□
REPAIR PARTS
Product Name Code No.
Boost sensor for SD METER 19488
Boost sensor harness for SD METER 19488H
TEMP SENSOR SET for SD METER 19216
TEMP SENSOR unit 19210A
TEMP SENSOR harness for SD METER 19216H
PRESS SENSOR SET for SD METER 19217
PRESS SENSOR SA-P15 19961
PRESS SENSOR harness for SD METER 19217H
EX-TEMP SENSOR SET for SD METER 19218
EX-TEMP SENSOR harness for SD METER 19218H
Power harness for SD METER 19214
Main harness SD METER(BOOST/VACUUM/PRESS) 19561H
Main harness SD METER(TEMP) 19563H
Main harness SD METER(EX-TEMP) 19565H
Main harness SD METER(RPM) 19566H
Main harness SD METER(VOLT) 19567H
All warning/peak memory of the SD meters will be cleared if the first power harness
is disconnected, in case that power supply is shared with first SD meter. □
If the costant power suppy is connected, the meter enters initial setting mode.
The power does not go off until initial setup is complete.
Therefore, perform initial setup before disconnecting the harness from the meter.
When the battery is disconnected, initial steeing of the meter becomes necessary □
On some vehicles, different setting is required from actual cylinder numbers.
※4-cylynder setting on some V8, 3-cylinder setting on some V6 □
In case that ther is no input of RPM (Tach) signal to ECU,
this RPM meter does not work properly. □
Illustlation shows the boost meter for an example.
All other meters can display/clear the peak value with same method. ※
Indicator
MAX/MIN threshold direction cannot be changed. ※
Illustlation shows the boost meter for an example.
All other meters can display/clear the peak vaalue with same method. ※
Indicator
TEMP SENSOR FITTING
Product Name Code No.
TEMP FITTING OUT M12-1.25 IN1/8PT 19220
TEMP FITTING OUT M14-1.50 IN1/8PT 19221
TEMP FITTING OUT M16-1.50 IN1/8PT 19222
TEMP FITTING OUT M20-1.50 IN1/8PT 19224
OIL SENSOR ATTACHMENT
Product Name Code No.
Oil sensor attachment TYPE-A (φ65) 19231
Oil sensor attachment TYPE-B (φ70) 19232
Oil sensor attachment SUBARU 19233
※Check BLITZ homepage for detailed application.
OIL PRESSURE ADAPTOR
Product Name Code No.
Oil pressure adaptor SET 19551
Warning function cannot be displayed. ※
Caution ！
