Hot Food Deli Case Installation
13
Joining WDCTY Cases
1. After leveling the cases and bolting the bases together, bolt the canopies together.
2. Remove the screws from the back of the top inner covers (with lights) on each case and allow
them to swing forward.
3. Connect the canopies using the ¼”-20 X 3” bolt and nut provided (see Figure 6, View A-A).
Replace the top inside covers.
4. Mount the Platform, Counter Trim and Base Front Joint Covers by holding them in place and
marking the hole locations on the case.
5. Make certain the joint covers are centered on the joint and that they align vertically with each
other.
6. Drill the case holes 5/32” and attach joint covers with screws provided. Black screws are to be
used on the Platform Cover and the Base Front Cover if painted black.

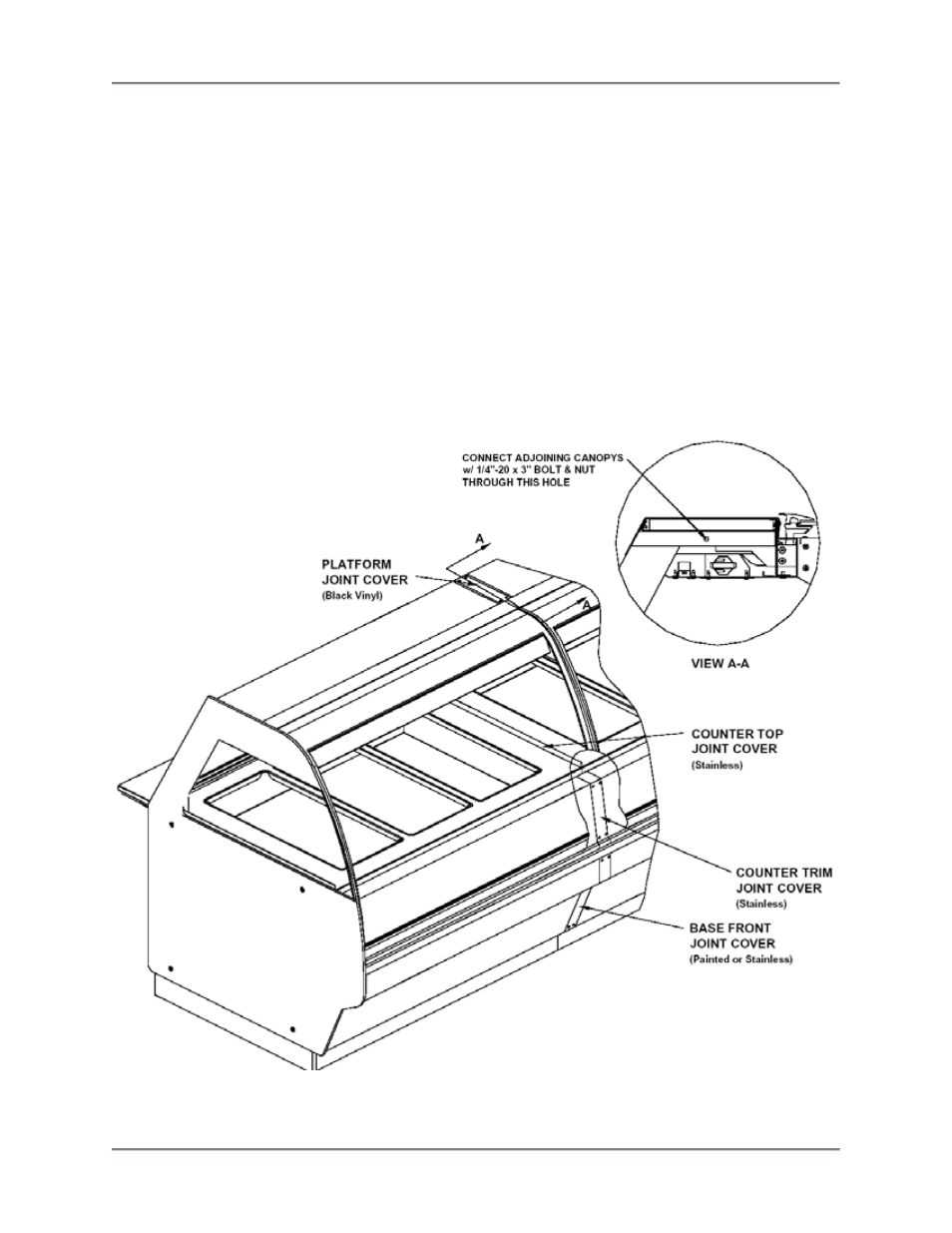

Figure 6. Joining WDCTY Cases
