Blue Rhino Outdoor LP Gas Barbecue Grill HBT822W - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
3
4
1
3
Parts List
1 Lid Handle Support (2)
2 Lid Handle
3 Thermometer
4 Warming Rack
5 Lid
6 Cooking Grid
7 Heat Plate
8 Rear Panel
9 Left Side Handle
10 Burner
11 Electrode
12 Bottom Bowl
13 Grease Tray
14 Regulator
15 Right Side Handle
16 Igniter Wire
17 Leg (2)
18 Wind Cover
19 Lighting Rod
Hardware
A
Screw M4x18 Nickel Plated Phillips Truss Head 7 pcs
B
Screw M5x15 Nickel Plated Phillips Truss Head 4 pcs
C
Screw M6x8 Nickel Plated Phillips Truss Head 1 pcs
D
Screw M6x12 Nickel Plated Phillips Truss Head 8 pcs
E
Washer M4 Steel 7 pcs
F
Washer M5 Steel 4 pcs
G
Washer M6 Steel 9 pcs
H
Lock Washer M4 Steel 7 pcs
I
Lock Washer M5 Steel 4 pcs
J
Lock Washer M6 Steel 9 pcs
K
Pin ø5 x 30 Zinc Plated 2 pcs
L
Cotter Pin ø1.4 x 30 Steel 2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver
15
6
7
10
13
14
16
9
2

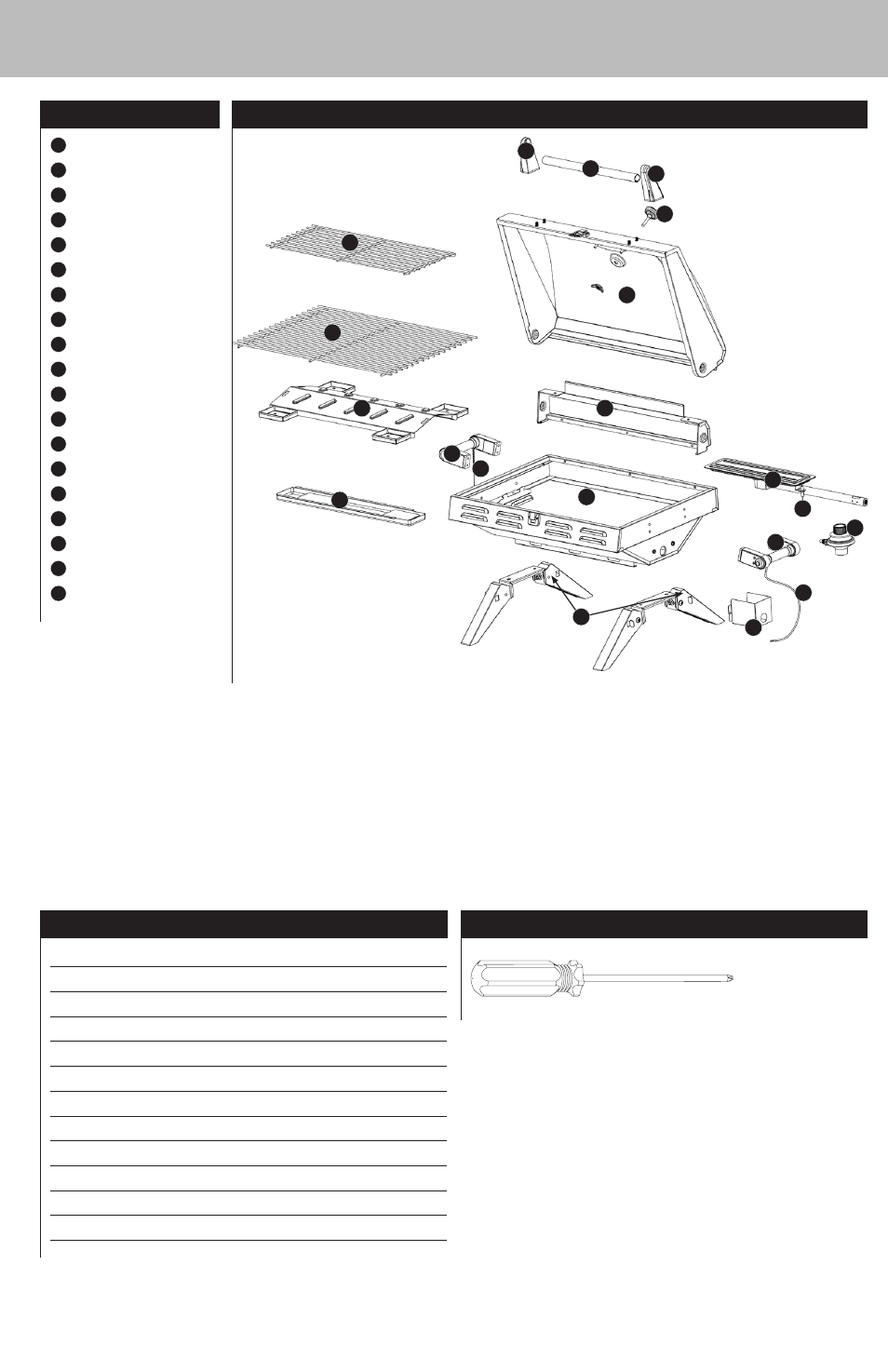

Exploded View
12
5
8
11
18
17
19
1
