13

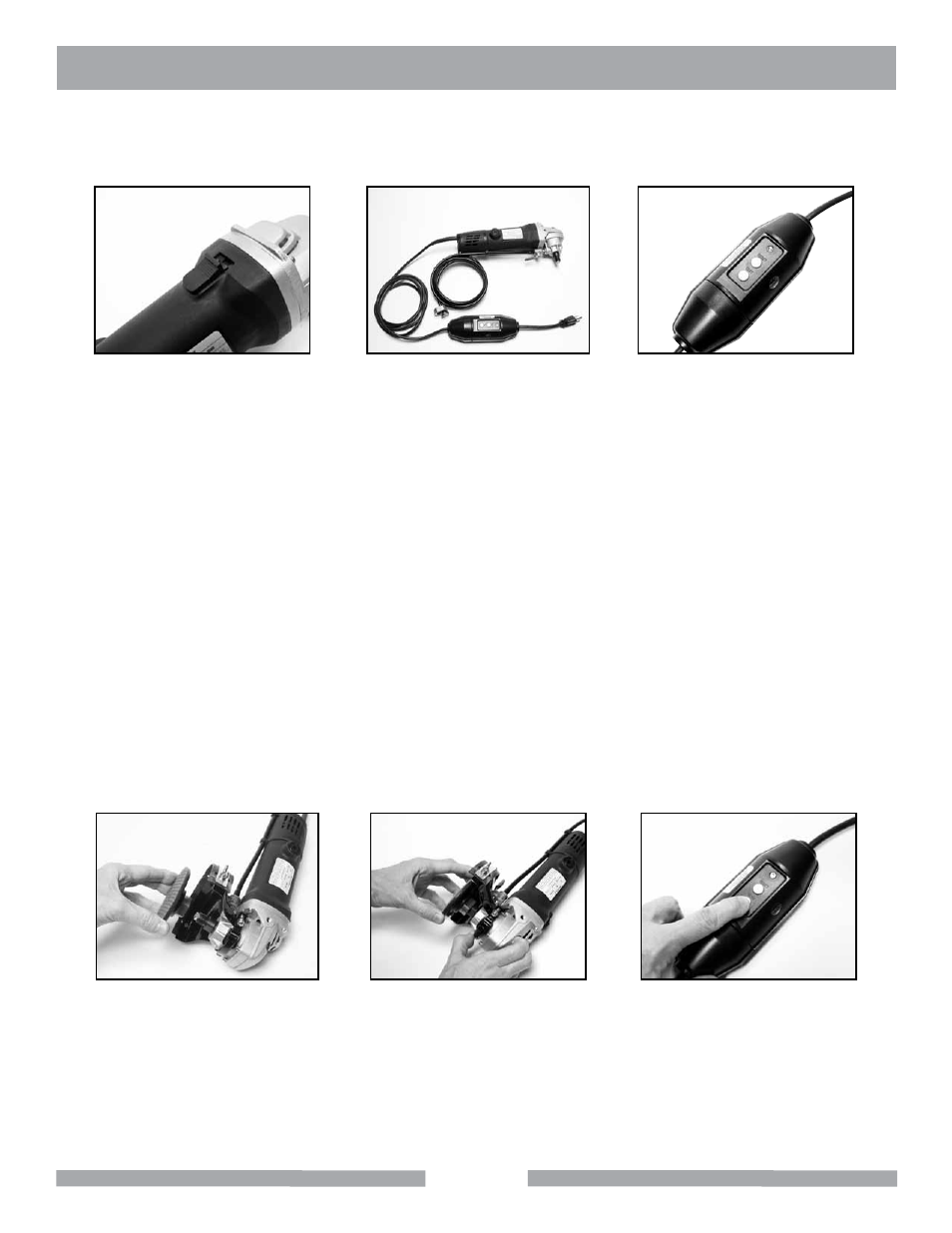

(A)
Verify the ON/OFF Switch is in
the OFF position.
BD-125WP SETUP
Setup for Operation
1. Velcro Backer Pads may be used for Barranca Diamond products such
as diamond polishing discs, sandpaper discs, and felt buffing discs. Choose
the correct Backer Pad for the job being performed; rubber Backer Pads for
contours edges, and bullnose surfaces. Rigid Backer Pads for straight edges
and flat surfaces.
2. Located on the top of the gear box is a shaft lock button. Press it to stop shaft
from spinning when installing backer plate. Do not press shaft lock button when
polisher is running.
The indicator light on the GFCI should glow red. The red light should go out when
the TEST button is pressed. This indicates that the GFCI is functioning properly.
Press the RESET button to reactivate the GFCI.
NOTE:
NOTE:
(A)
Install the Backer Pad onto the
Spindle (Do Not cross-thread).
(B)
Tighten the Backer Pad while
pressing shaft lock bottom.
(C)
Plug the GFCI into a power
outlet and test the GFCI for
proper operation.
Pre-start Inspection
Prior to beginning work, a pre-start inspection of the polisher should be performed.
(B)
Inspect for missing or dam-
aged components.
(C)
Test and reset the GFCI. If it
does not test and reset properly,
replace immediately.
