SSR 1 SSR 2 SSR 3
A C B D E F
UPPER ELEMENTS
LOWER
ELEMENTS
WIRE DESIGNATIONS
( LETTERS OR #s )
UPPER TEMP CONTROL LOWER TEMP CONTROL
30 29 34 30 29 29
POWER BLOCK
WIRING - SINGLE
PHASE
G
L2
L1
POWER BLOCK
WIRING - THREE
PHASE
G
L2
L1
L3
BLACK 10 GA ( A )
BLACK 18 GA ( #4 )
WHITE 14 GA ( L2 )
WHITE 14 GA ( L2 )
WHITE 18 GA ( #5 )
WHITE 14 GA ( L2 )
BROWN 10 GA ( E )
BROWN 14 GA ( R )
CONTROL BOX DOOR
Solid State Relay
GREEN 10 GA ( GRND )
GREEN 14 GA ( G4 )
GREEN 10 GA ( GRND )
GREEN 14 GA ( G4 )
BLACK 18 GA ( #4 )
BROWN 10 GA ( E )
BROWN 10 GA ( E )
BLACK 10 GA ( A )
WHITE 14 GA ( L2 )
WHITE 14 GA ( L2 )
WHITE 14 GA ( L2 )
BROWN14 GA ( R ) WHITE 18 GA
( #5 )
PROBE PROBE
240
VAC
240
VAC
VAC
COM
VAC
COM

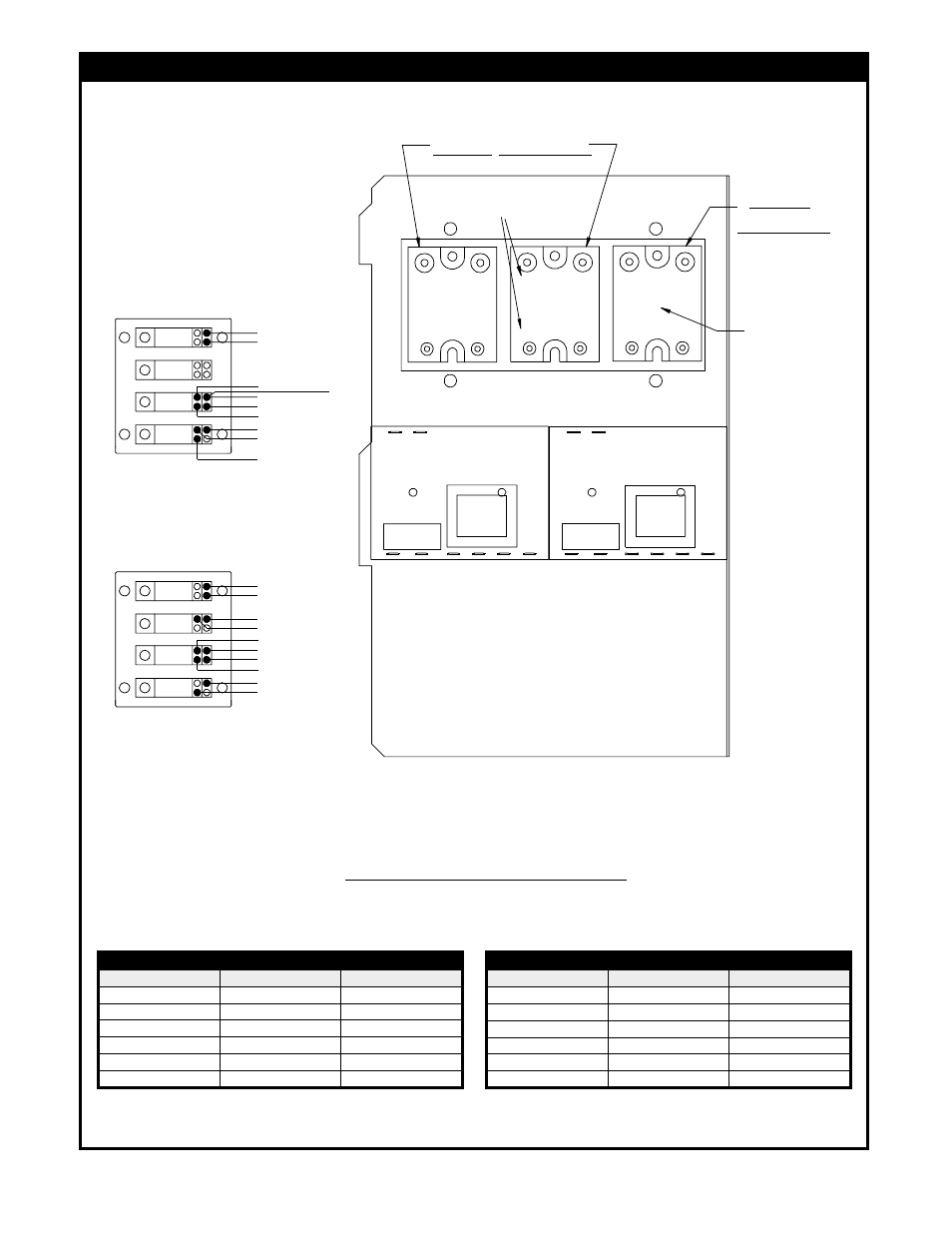

18. Solid State Relay Labeling I.D. - Models VH-, VHVA1620E Conveyor Ovens
Circuit Leads 208 Volt 240 Volt
Between C & L3 28.3 Ohms 38.9 Ohms
Between D & L2 28.3 Ohms 38.9 Ohms
Between C & D 1.2M Ohms 1.3M Ohms
Between C & F 1.2M Ohms 1.3M Ohms
Between D & F 42.3 Ohms 58.1 Ohms
Between F & L2 14.5 Ohms 19.5 Ohms
Three Phase Units
Circuit Leads 208 Volt 240 Volt
Between C & L2 Ohms 38.9 Ohms 28.3
Between D & L2 Ohms 38.9 Ohms 28.3
Between C & D 56.2 Ohms 77.6 Ohms
Between C & F 42.5 Ohms 58.1 Ohms
Between D & F 42.3 Ohms 58.1 Ohms
Between F & L2 14.5 Ohms 19.5 Ohms
RESISTANCE VALUES OF VARIOUS CIRCUITS
Dual Air Models: VH-, VHVA1620E Conveyor Ovens
NOTE: Fuses removed; (4) elements @ 1.5kw = 6.0kw; Ohms = Volts x Volts / Watts
"
Single Phase Units
