Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 10/05
1
M1098X
Thermostat w/Knob,
EGO (Standard) P-18
20 U1302X
Control Panel Overlay,
EGO (P-18)
2
M1192X
Thermostat w/Knob,
EGO (High Heat) P-18
21 U1307A
Control Panel Overlay,
EGO Hi-Heat (P-18)
3
M1110X
Thermostat w/Knob,
KA-72, 550deg (BK-18)
22 U1314A
Control Panel Overlay
(BK-18)
4
S1311X
Knob (Thermostat & Timer)
23 U1297A
18 Minute Timer Overlay
(50 cycles)
5
M1381A
Timer, Elec-Mech,
60 Min, 120V (BK-18)
24 U1296A
72 Minute Timer Overlay
(50 cycles)
6
M1382A
Timer, Elec-Mech,
60 Min, 220V (BK-18)
25 S3019X
Bushing, Door
7
M1383A
Timer, Elec-Mech,
15 Min, 120V (P-18)
26 D3106X
Door Assy w/Handle
8
M1384A
Timer, Elec-Mech,
15 Min, 220V (P-18)
27 S3001X
Door Rod
9
D3157K
Control Panel
28 Q3021X
Door Rod Spacer Kit
(1 Kit per Door)
10
M1330A
Circuit Breaker, 3 Amp
29 D3105K
Outer Back
11
M1335X
Audio Alarm
(Discontinued)
30 S1316U
Door Handle Assy, 10"
12
P1127X
Pilot Light, Amber
31 Q2041A
Screw, 1/4-20 x 1/2 Rd Hd
(Door Handle)
13
P1089A
Terminal Block, 3 Pole
32 U1044X
Bakers Pride Nameplate, 8"
14
P6004X
Line Cord 125V/15A
(US) P & BK
33 S1014X
4" Adjustable Leg (Set/4)
15
P6005X
Line Cord 250V/15A
(US & Japan) P & BK
34 S1014Y
4" Adjustable Leg (each)
16
P6383X
Line Cord 125V/20A
(Canada)
35 T3150A
Intermediate Wire Rack
(Option, BK18)
17
P6009X
Line Cord 250V/20A
(Canada)
36 D3162U
Wire Rack Support Assy,
Left (Option)
18
P6006X
Line Cord, 230V/16A "C" Type (CE)
37 D3163U
Wire Rack Support Assy,
Right (Option)
19
P6343X
Line Cord, 230V/13A (UK)
N/S D2069X
Stacking Kit

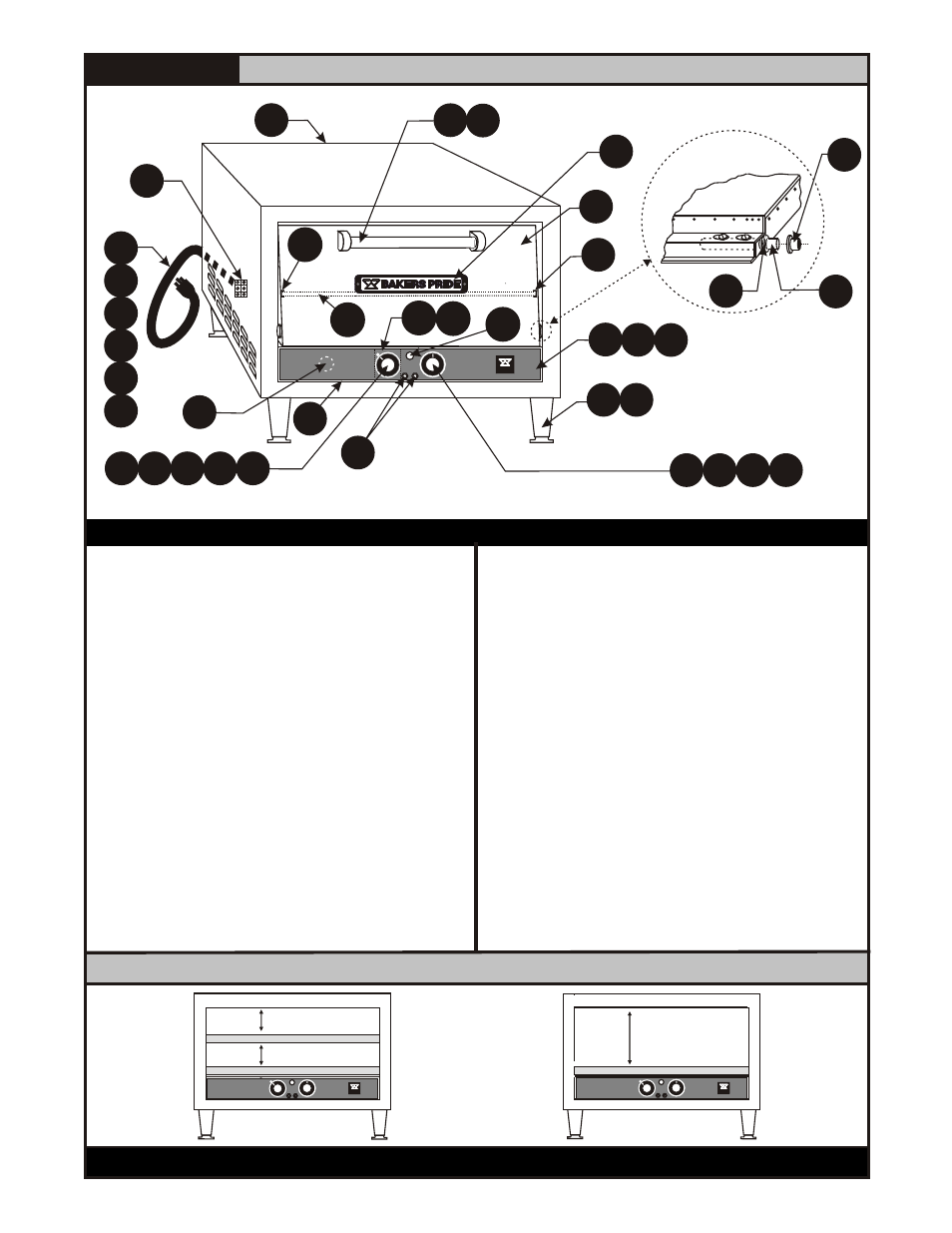

DECK ARRANGEMENT BY MODEL
BK18
BA
KE
7 1/2”
E
U
T S
IN
M
BAKERS
BAKERS
PRIDE
PRIDE
0
300
450
650
P
ZA
IZ
3 1/4”
3 1/4”
E
U
T S
IN
M
BAKERS
BAKERS
PRIDE
PRIDE
0
300
450
650
P18S
Item Part #
Description Item Part #
Description
E
U
T S
IN
M
E
U
T S
IN
M
0
0
300
300
450
450
650
650
0
300
450
650
E
U
T S
IN
M
BAKERS
BAKERS
PRIDE
PRIDE
E
U
T S
IN
M
BAKERS
BAKERS
PRIDE
PRIDE
0
300
450
650
19
18
17
16
15
14
13
12
11
10
9
8 7 6 5 4
4
3
2
1
36
35
34
33
29
28
25
24
23
20
22
21
27
30 31
37
26
32
15
P18-S, BK18
Exterior/Door/Controls
(Electro-Mechanical Timers)
