INSTALL DECORATIVE FLUE

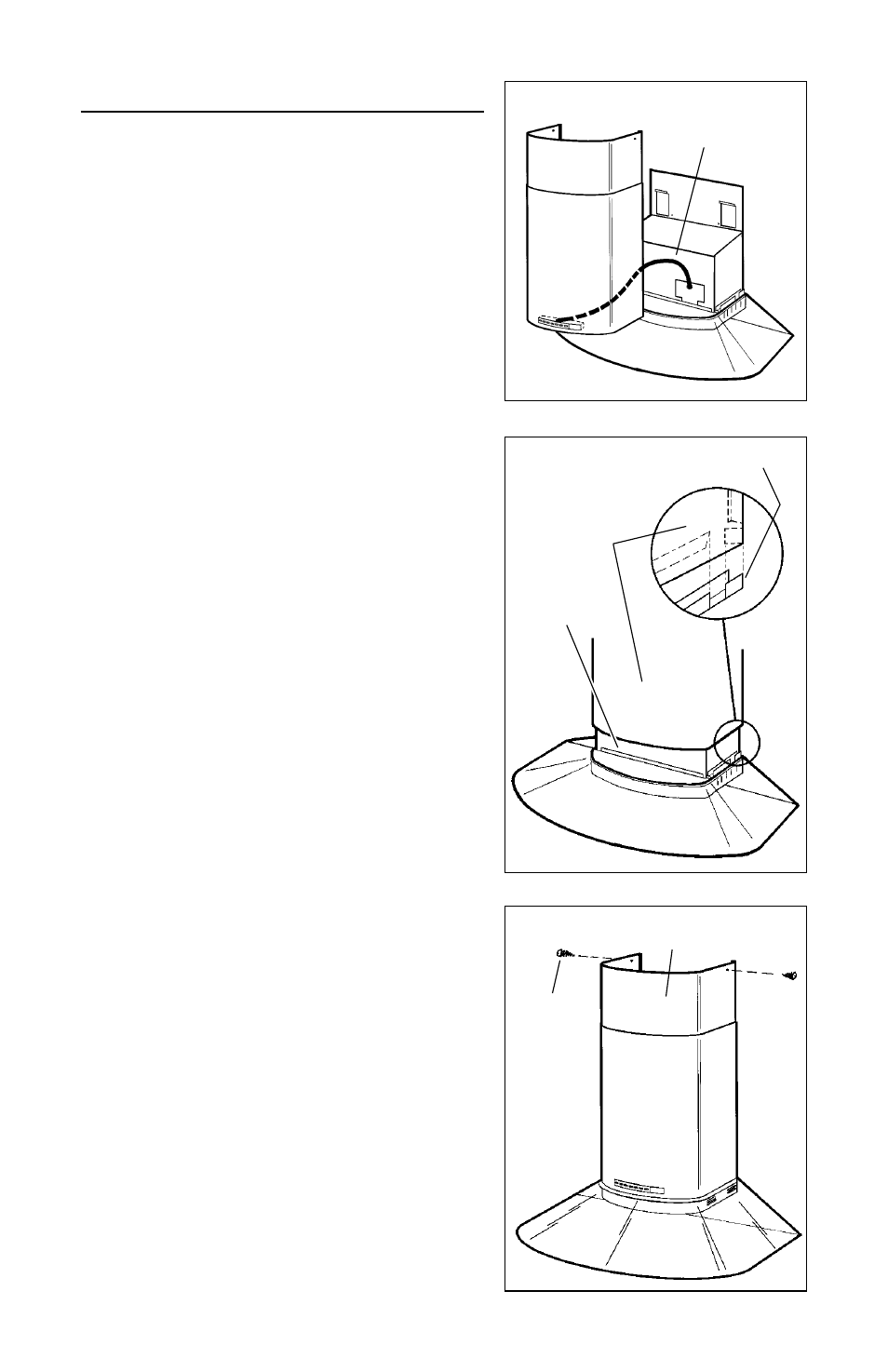

1. Hold the decorative flue near the top of the
hood. Connect the switch cable from the
hood to the decorative flue, as shown.
SWITCH
CABLE
2. Slide the lower decorative flue section
downward and into the channels on the
hood.
FASTEN
TO
FLUE
MOUNTING
BRACKET
WITH
SCREWS
LOWER
DECORATIVE
FLUE
SECTION
CHANNEL
CHANNEL
3. Raise upper decorative flue section and
attach it to the flue mounting bracket with
screws (supplied).
UPPER DECORATIVE
FLUE SECTION
