Welding Helmets:
Limitations of Use
Filters:
ArcOne ® welding filters are not designed
for oxy-acetylene, laser, or very low
amperage welding applications.
Do not weld with filter in the light state. If
the filter fails to turn dark immediately stop
use and contact a service provider for help.
No matter what shade the filter is set to the
UV/IR protection is always there. You can never burn your eyes due to optical radiation.
Welding Helmets:
ANSI Protective clothing and accessories such as leather bibs attached to the
welding helmet will protect the user from spatter and optical radiation indirectly
entering from areas behind the helmet.
ACGIH (American Conference of Governmental Industrial Hygienists) has
established a TLV-TWA of 5mg/m 3 for welding fumes. Welding fumes cannot be
classified simply. The composition and quantity of both are dependent on the alloy
being welded and the process and electrodes used.
Care and Maintenance
NOTE: Replacement components must be used in accordance with these instructions.
Failure to use ArcOne replacement components in accordance with these instructions
voids
certification and warranty of this product.
Filters:
Clean your filter by using window cleaner or a mild soapy solution and a soft cloth or paper
towel (do not immerse in water or solution). Ensure that the sensors are kept clean and
unobstructed. Change the cover plates frequently.
Welding Helmets:
Clean your helmet by using a mild soapy solution and a soft cloth or paper towel (do not
immerse in water or solution).
Warning: Do not throw or abuse the helmet. Doing so may crack the helmet shell or
filter, and is not covered by warranty.
Store in an appropriate place to prevent damage when not in use (Storage Temp. 14°F / 131°F).
Welding helmets may be stored and transported in their original or similar packaging.
Adjust Height: Snap Out/
Slide/ Snap In
Adjust Fit: Push In/ Turn/ Release
Headgear Adjustments
Figure 3
- 2 - - 3 -
Spatter Protection
Ensure the front cover plate is secure under all
the tabs located inside the Carrera Welding
Helmet and within the area covered by the
Filter Holder.
SPATTER DAMAGE IS
NOT
COVERED BY WARRANTY
All cover plates are
1 mm thick (0.040”).
***To install, slide
Polycarbonate under
top tabs then push
underneath bottom tabs*** Figure 4

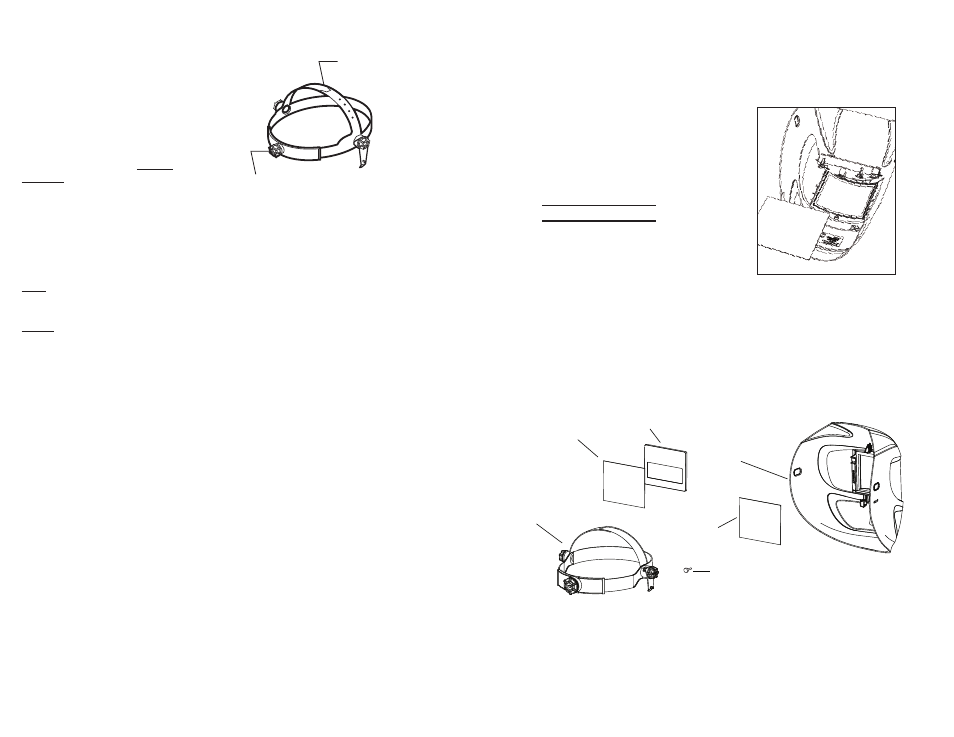

Parts Selection Guide
(see Filter Removal for replacing Filter and Cover Plates)
02-HG
Headgear Assembly
AD Filter 03-OP*/04-OP
Inside Polycarbonate
04-OP
Front Polycarbonate
Screw
**CARRERA-911-S
Helmet Shell
Figure 5
Rotate Non-
Removable
Center Section
