Outdoor Charcoal Grill Model No. NPC1924P Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
2

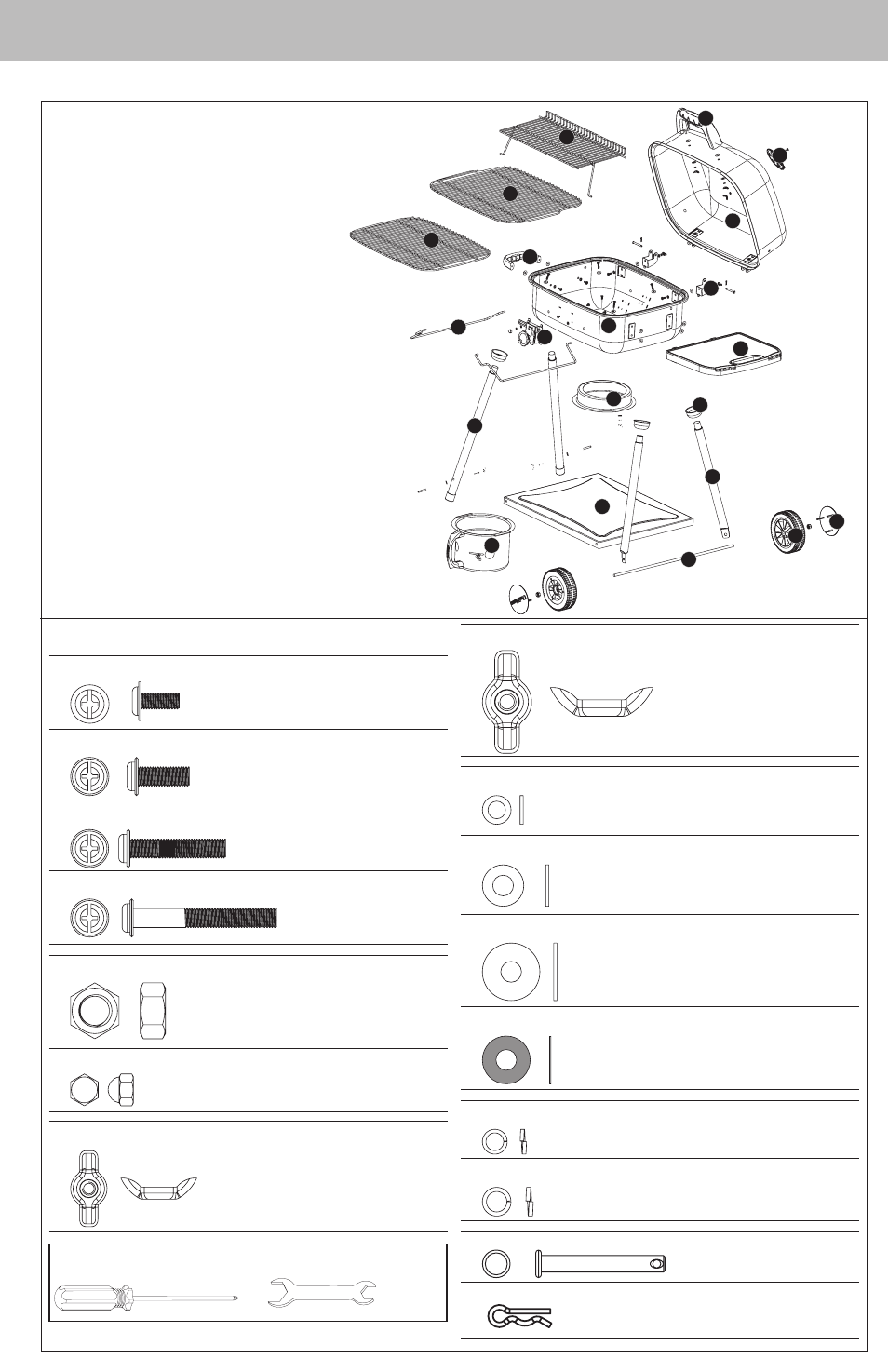

Exploded View
1. Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-853
2. Lid Handle . . . . . . . . . . . . . . . . . . . . . . . . 55-14-854
3. Warming Rack . . . . . . . . . . . . . . . . . . . . . 55-14-855
4. Charcoal Grid. . . . . . . . . . . . . . . . . . . . . . 55-14-856
5. Air Vent . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-857
6. Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-858
7. Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-859
8. Wheel Leg (2). . . . . . . . . . . . . . . . . . . . . . 55-14-860
9. Wheel (2) . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-861
10. Hub Cap (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-862
11. Left Leg (2) . . . . . . . . . . . . . . . . . . . . . . . 55-14-863
12. Leg Support Cups (4) . . . . . . . . . . . . . . . . 55-14-864
13. Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-865
14. Slide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55-14-866
15. Ash Receiver . . . . . . . . . . . . . . . . . . . . . . 55-14-867
16. Bottom Hinge (2) . . . . . . . . . . . . . . . . . . . 55-14-868
17. Side Table . . . . . . . . . . . . . . . . . . . . . . . . 55-14-869
18. Side Handle . . . . . . . . . . . . . . . . . . . . . . . 55-14-870
19. Adjustable Knob. . . . . . . . . . . . . . . . . . . . 55-14-871
20. Charcoal Grid Support Rod (2) . . . . . . . . . 55-14-872
21. Cooking Grid . . . . . . . . . . . . . . . . . . . . . . 55-14-873
2
18
5
1
8
9
7
4
3
21
19
20
11
15
6
12
14
17
13
16
10
Hardware / Actual Size
A. Small Screw 3 pcs
M5x12 Philips Truss Head Screw
B. Medium Screw 9 pcs
M6x16 Philips Truss Head Screw
C.
Large Screw 4 pcs
M6x30 Philips Truss Head Screw
D. Extra Large Screw 2 pcs
M6x45 Philips Truss Head Screw
E. Nut 2 pcs
M10 Zinc Plated Hex Nut
F. Cap nut 2 pcs
M5 Zinc Plated Cap Nut
G. Small Wing Nut 1 pc
M5 Zinc Plated Wing Nut
H. Large Wing Nut* 7 pcs
M6 Zinc Plated Wing Nut
I. Small Washer 2 pcs
ø5.5 Zinc Plated Washer
J. Medium Washer 5 pcs
ø6.5 Zinc Plated Washer
K. Large Washer 16 pcs
ø6.5 Zinc Plated Washer
L. Heat Resistant Washer 12 pcs
ø6 Zinc Plated Lock Washer
M. Small Lock Washer 3 pcs
ø5.5 Zinc Plated Lock Washer
N. Large Lock Washer 7 pcs
ø6.5 Zinc Plated Lock Washer
O. Pins* 2 pcs
P. Cotter Pins* 2 pcs
* Not shown at actual size.
Only tools required for assembly are provided
Screwdriver*
1 pc Wrench* 2 pcs
