Options
Part Number: RP - _____ - _____ - _____ - _____ - _____ - _____ - _____
A B C D E F G
APG
Automation Products Group, Inc.
www.apgsensors.com
tel. 888.525.7300
3
RP Accessories
Please order separately by part number.
Part Number Description
135414
Float stop
135396
Bottom bracket
125603
Right angle bracket pipe clamp
125701
RST-5001 Internet Module
A. Model
□
X-A Hazardous, 4-20 mA output
□
X-R Hazardous, resistive output
□
X-I Intrinsic safety, 4-20 mA output
□
E-A General purpose, 4-20 mA output
□
E-R General purpose, resistive output
B. Mounting Type
□
0
Flat face flange
□
1
Raised face flange
□
2
Slide flange
□
3
Sanitary ferrule
□
4
Plug mounted from outside of tank
C. Mounting Option and Size
□
A
ANSI flange 150# (Size=2, 2.5, 3, 4)
□
J
JIS flange 10 kg/cm2 (Size=2)
□
D
DIN flange 10 kg/cm2 (Size=50)
□
SF 3A sanitary ferrule (Size=2.5, 3, 4)
□
T
NPT plug (Size=2, 2.5, 3)
□
G
PF plug (Size=2, 2.5, 3)
□
R
RT plug (Size=2, 2.5, 3)
□
X
Other
D. Material
□
S
304 SS
□
S6 316L SS
E. Stem Finish (RPX/RPE)
□
1
Brushed 320 grit
□
2
Sanitary
F. Float Type
□
E
316L SS 53 mm Round (0.57 SG)
□
F
316L SS 55h x 38w mm Sanitary (0.65 SG)
□
G
Buna 45h x 48w mm (0.39 SG)
G. Stem Length in Inches
□
RPX/RPE
Min. 12 in. - Max 72 in.

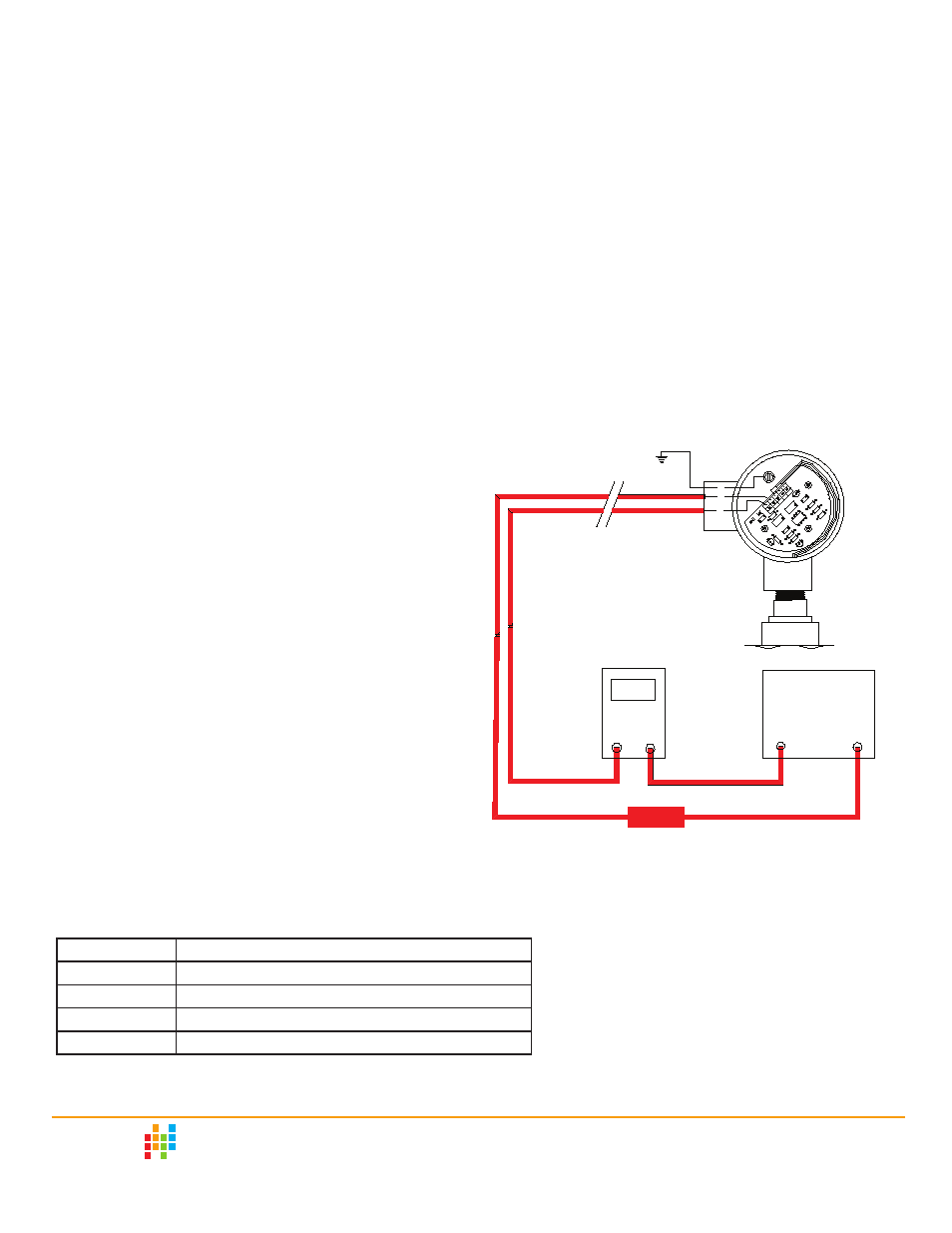

Wiring (4-20mA output option shown)
Choose Loop Resistance
to match application
4.25
Ammeter
COM
m
A
Power Supply
(24Vdc)
+
-
R 4
R9
STI 2001
R 3
R 5
J 1
R 7
R 1
R 8
D 1
R 2
C 1
C 2
D 2
C 3
Q 1
U 2
R 6
U3
SPAN
OFFSET
RED
BLK
W H
OUT
24V
4 to 20ma Out
+24vdc
