RP Specifications
Performance
• Resolution:
RPX/RPE: 6 mm (0.25 in.)
• Accuracy:
RPX/RPE: 3 mm (0.12 in.
Connectivity
• Output: 4-20 mA, Resistive
Environmental
• Operating Temperature:
RPX/RPE: 14º to 185ºF (-10º to 85ºC)
• Maximum Pressure:
RPX/RPE: 72.5 PSI (5 bar)
• NEMA 4 & 7, IP65
Certification
• RPX:
CSA Hazardous
Class 1, Div. 1; Groups C & D (Max 40ºC)
Class 1, Div. 2; Groups C & D (Max 85ºC)
CSA Intrinsically Safe
Class 1, Zone 1; Ex d IIB T3
Exia Class 1 Div. 1; Groups C & D T3C (Max 85ºC)
• RPE: General Purpose
Electrical
• Supply Voltage:
RPX: 12-24 VDC
Physical
• Housing:
RPX/RPE: Aluminum Die Cast
• Stem Length:
RPX/RPE: 1829 mm (72 in.)
• Cable Entry:
RPX/RPE: 3/4 in. NPT / 1/2 in. NPT
APG
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
2

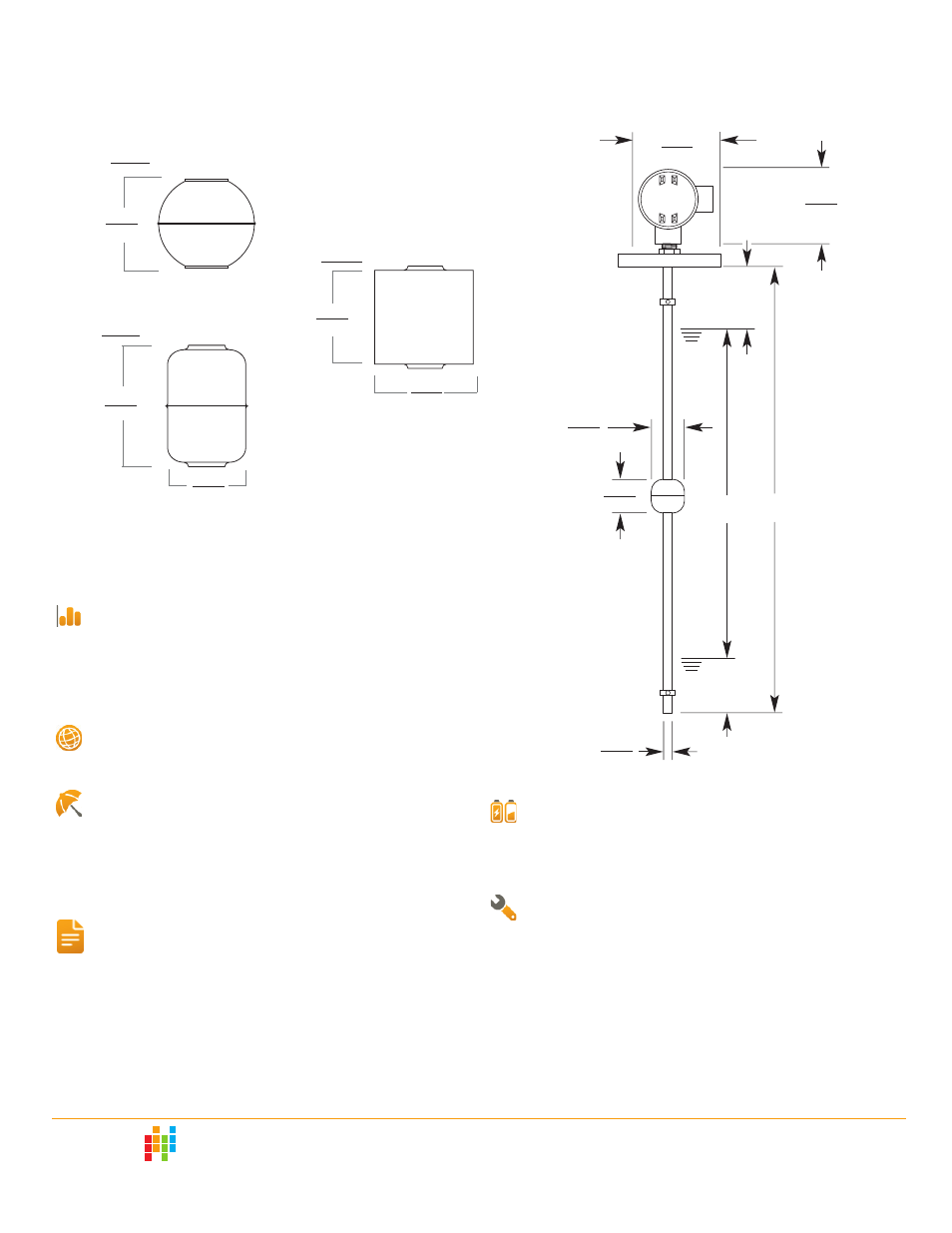

2.01”
51 mm
Float E
2.17”
55 mm
1.48”
38 mm
1.77”
45 mm
1.89”
48 mm
Float F
Float G
4.5”
114 mm
4.5”
114 mm
1.93”
49 mm
1.97”
50 mm
0.54”
13.8 mm
M L
S2
S1
