Cable Weight
1. Suspend switch and cable weight
at desired activation level as
shown in Figure D.
2. Connect cable leads directly into
control device as shown in
Figures B or C.
3. Check installation. Allow system
to cycle to ensure proper
operation.
To adjust cable weight:
1.
Release clip.
2. Adjust cable weight to desired
position.
3. Lay switch cable in weight
channel.
4. Align clip with weight channel
and slide towards switch cable as
shown in Figure D.
5. Snap clip snugly up to cable,
moving clip to tightest possible
position.

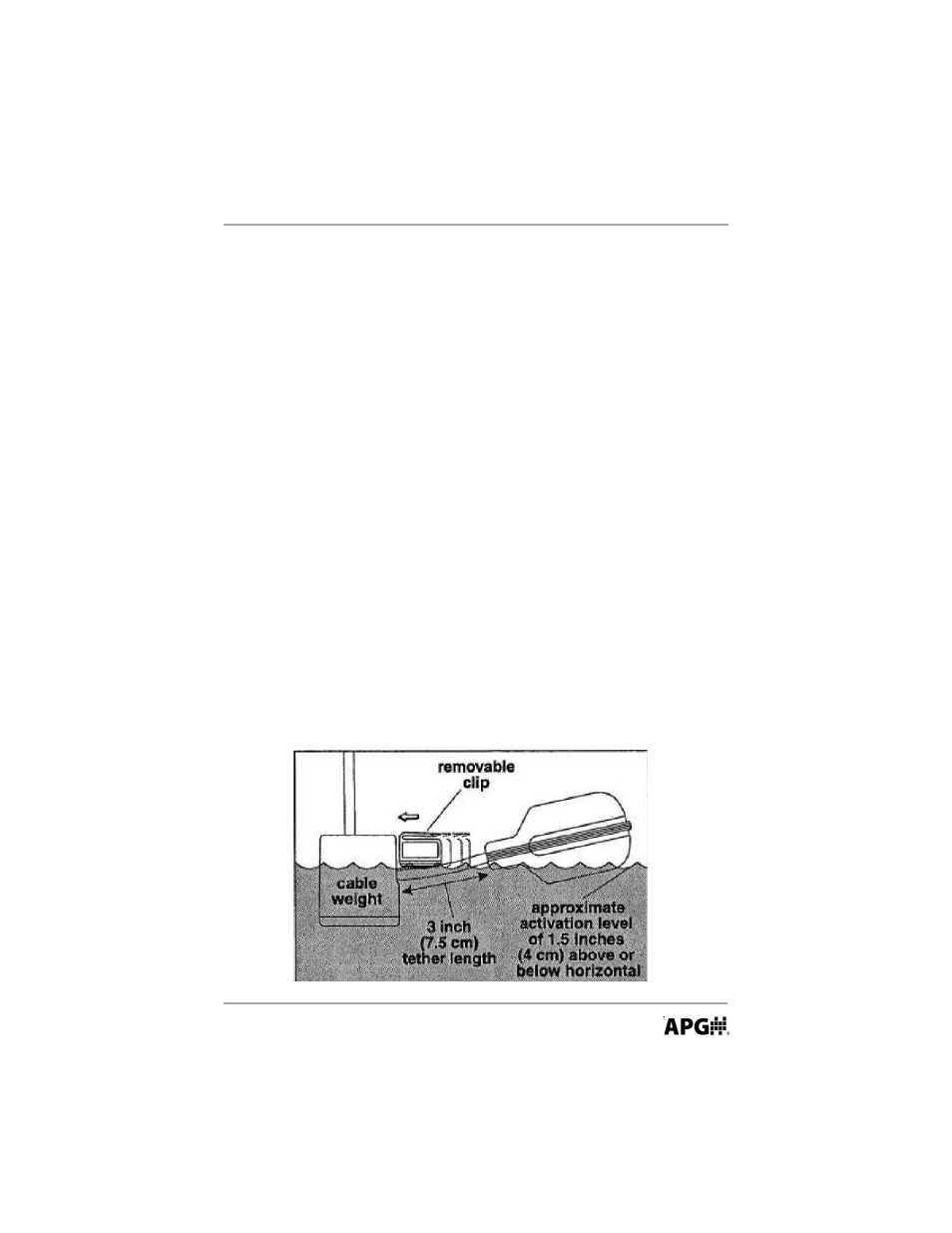

Figure D
