Wiring Diagrams
1. For the FT-100A or FT-100B connect cable leads directly into control device
as shown in Figure B.
2. For the FT-100C connect cable leads directly into control device as shown
in Figure C.

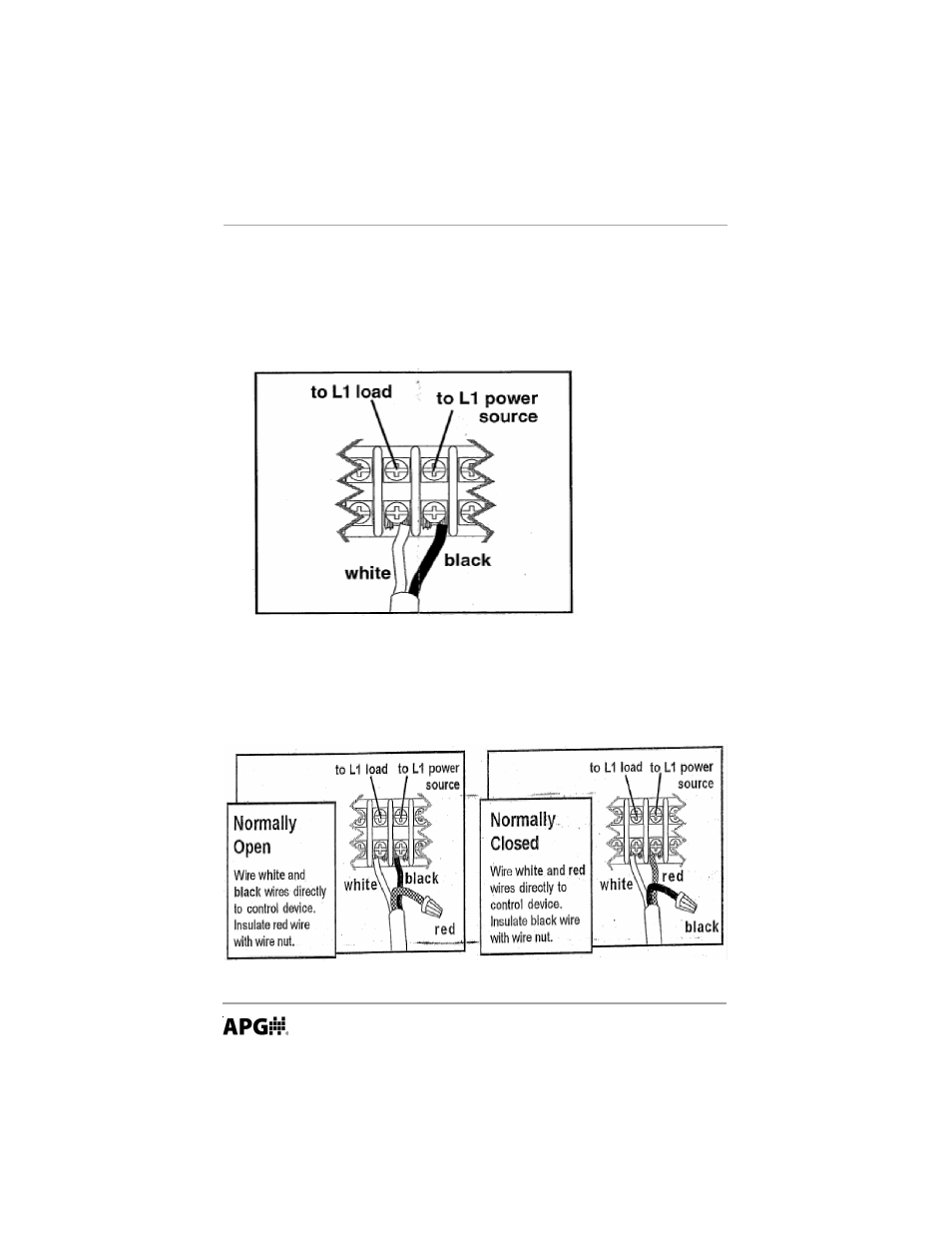

Figure B
Figure C
