Options
Part Number: HU - _____ - IS - _____ - PSIS - _____ - _____ - _____
A B C D E
A. Output
□
L24 4-20 mA with Cal Shunt
□ L27 0-5 VDC
B. Pressure Range
□
5K 0 - 5,000 psis
□ 6K 0 - 6,000 psis
□ 10K 0 - 10,000 psis
□ 15K 0 - 15,000 psis
□ 20K 0 - 20,000 psis
C. Electrical Connection
□
E1 4 pin ‘Mini’
□ E2 5 pin ‘Mini’
□
E3 4 pin Threaded MS3102 (0-5V)
□ E4 6 pin Bayonet (0-5V)
□
E5 1/2 NPT coupling flying leads
□ E6 3 pin Turck Minifast (RSFVL36)
□ E9 3 pin Threaded MS3102 (4-20 mA loop)
□ E10 Junction Box (1502 only)
□ E12 3 pin Bayonet (4-20 mA loop)
□ E13 7 pin Jupiter (4-20 mA loop w/Shunt Cal)
□ E18 4 pin Rota (4-20 mA loop w/Shunt Cal)
□
E20 4 pin Turck minifast (P-RSFV 40-0.3)
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
3
D. Fitting
□
P34 Large Hammer Union 1502 Weco fitting
□ P35 Small Hammer Union 2202 Weco fitting
□
P36 Large Welded Hammer Union 1502 Weco fit-
ting
□
P37 Small Welded Hammer Union 2202 Weco fit-
ting
E. Enclosure
□
K0 No options (standard)
□ K7 With handle*

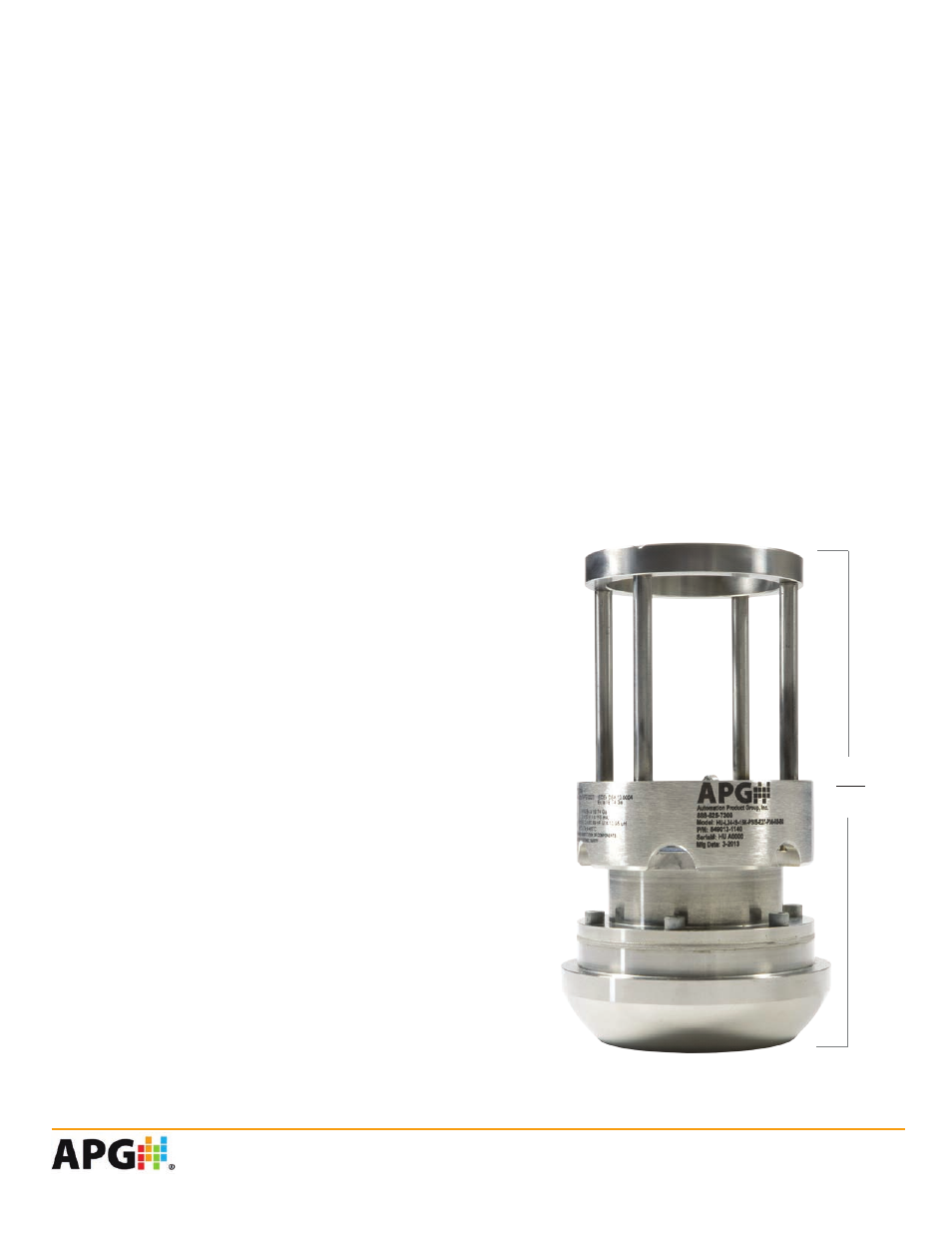

□ K1 With protective cage assembly*
*Consult factory
6.75”
171.45 mm
