Hammer Union Specifications
Performance
• Accuracy (linearity, hysteresis, & repeatability):
±0.25% of full scale (BFSL)
• Standard Pressure Ranges: 0-20,000 psis
• Overpressure - 1.5 times full scale
(applies to sensor only, not fitting)
• Burst Pressure - 3 times full scale
(applies to sensor only, not fitting)
• Compensated Temp: -40 - 65ºC (-40 - 150ºF)
• Temp Effects on Zero & Span:
±0.026% FSO/ºC (±0.01% FSO/ºF)
• Life: 10 million cycles minimum
• Frequency Response:
Less than 5mS
Environmental
• Storage Temp: -50 - 120ºC (-50 - 248ºF)
• Operating Temp: -40 - 85ºC (-40 - 185ºF)
• Enclosure Protection: IP67
Certification
• CSA/cCSAus Contract #237484
• IS: Class 1, Division 1; Groups C & D
Class 1, Zone 0, AEx ia IIB T4
Ex ia IIB T4
Ambient: -40 - 85ºC
• ATEX: 4-20 mA
CE 0344 EX II 1G Ex ia IIB T4 Ga
(Ta = -40°C to +85°C)
• IEC: 4-20 mA
EX ia IIB T4 Ga (Ta= -40°C to +85°C)
Connectivity
• Output Signal @ 21ºC:
4-20 mA: 3-30 mA max
0-5 VDC: 110 mA inrush current
0-5 VDC: 3.5 mA operating current
Electrical
• Supply Voltage: 10-30 VDC on sensor
• Loop Resistance: 1125 ohms @ 30 VDC decreasing
linearly to 0 ohms @ 10 VDC
• Insulation Resistance: >100 megohms @ 500 VAC,
70ºC
• Shunt Cal: 100% of full scale output
Physical
• Wetted Materials: Conforms to NACE MR-01-75 and
ISO 15156-3 standards
• Incoloy
Automation Products Group, Inc. www.apgsensors.com
tel. 888.525.7300 [email protected]
2

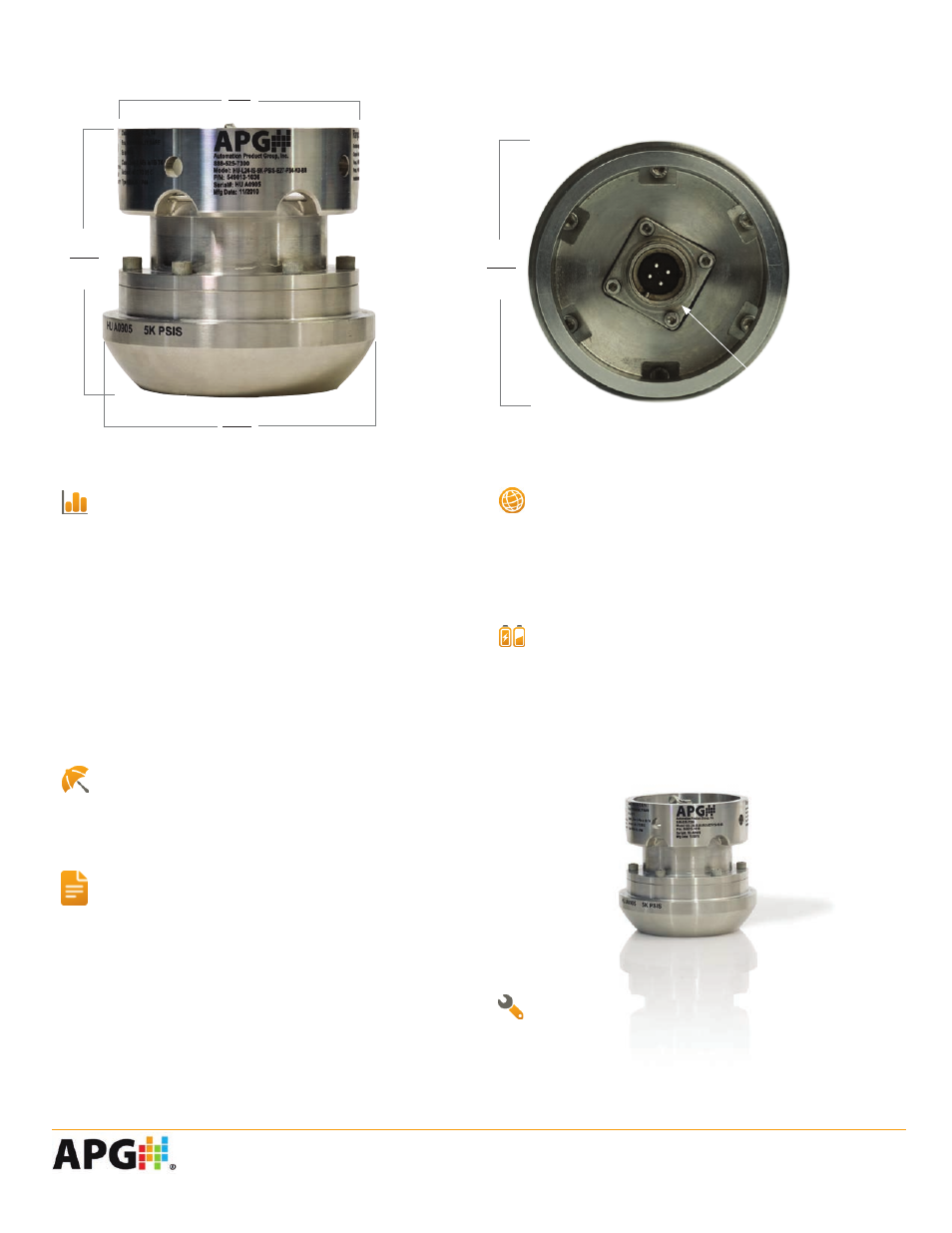

3.50”
88.9 mm
*1502 Fitting
3.69”
93.7 mm
3.25”
82.5 mm
4 pin Connector
3.69”
93.7 mm
