Rev. A3,10/08 PT-L10-C
5
Automation Products Group, Inc.
APG...Providing tailored solutions for measurement applications
Tel: 1/888/525-7300 • Fax: 1/435/753-7490 • www.apgsensors.com • [email protected]
C. Re-check zero and re-adjust the zero (“Z”) pot if required.
D. Repeat steps B, and C, until no further adjustment is required.
3. Wiring Information

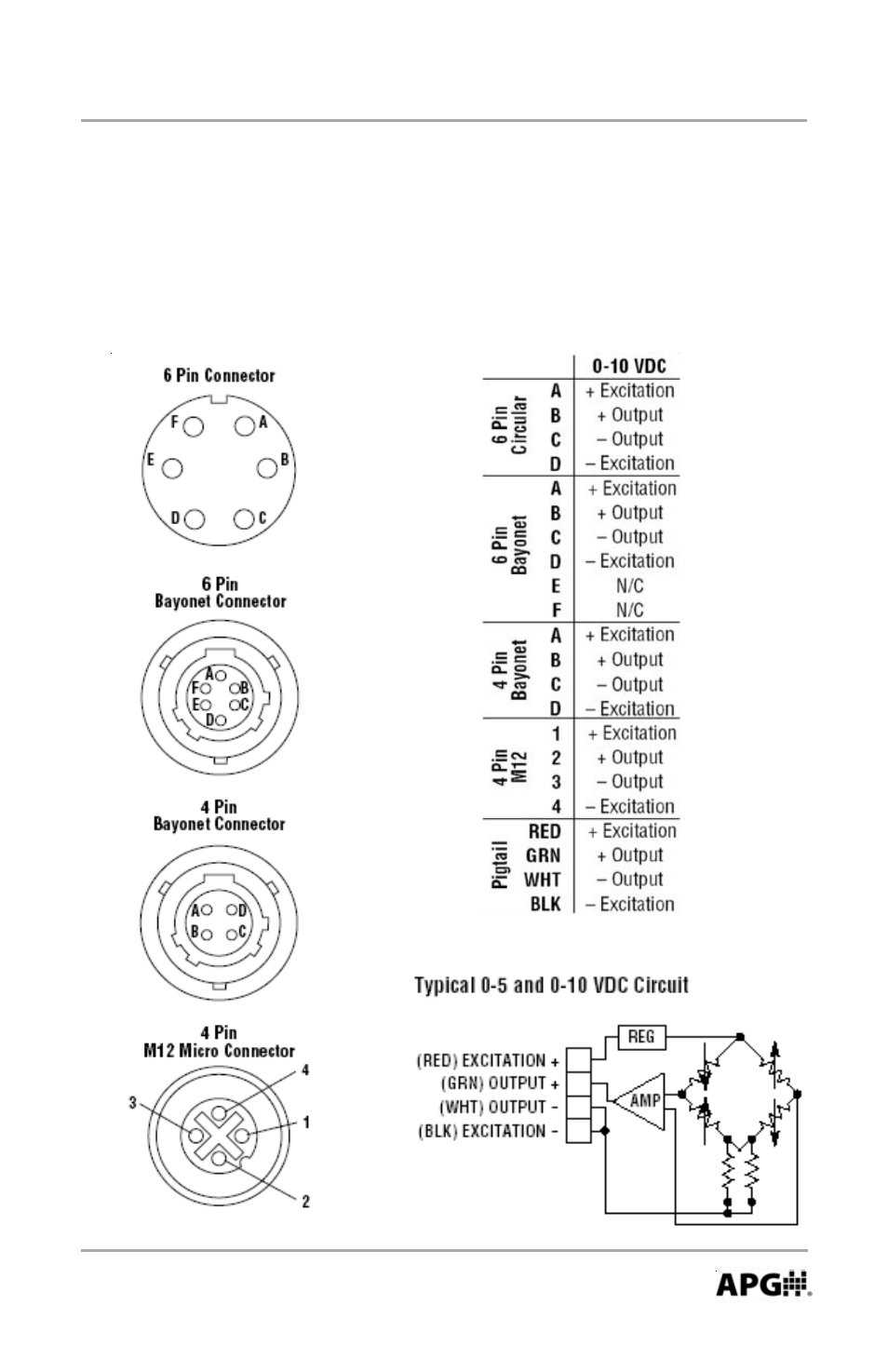

Below, are the pin out diagrams, circuit diagrams, and pin out table for the
0-10 VDC circuit, as needed to assist you in wiring your transducer.
N/C indicates no connection
